Toyota RAV4 (NAP) — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0R901iASA3#,GSA3#..NAP200811

main63102-0R902iASA3#,GSA3#..NAP..STD201009

US BASE PLUS PACKAGE

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0R010iASA3#,GSA3#..NAP200811

63111PANEL, ROOF

main63111-0R040iASA3#,GSA3#..NAP200811-201203

main63111-0R041iASA3#,GSA3#..NAP201204

main63111-0R010iASA3#,GSA3#..NAP..STD201009-201203

US BASE PLUS PACKAGE

main63111-0R011iASA3#,GSA3#..NAP..STD201204

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-0R010iASA3#,GSA3#..NAP..STD201009

US BASE PLUS PACKAGE

63119SUPPORT, ROOF PANEL, LH

main63118-0R010iASA3#,GSA3#..NAP..STD201009

US BASE PLUS PACKAGE

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-0R010iASA3#,GSA3#..NAP200811

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0R901iASA3#,GSA3#..NAP..STD201009

US BASE PLUS PACKAGE

63143AREINFORCEMENT, ROOF PANEL

main63143-0R010iASA3#,GSA3#..NAP200811

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0R010iASA3#,GSA3#..NAP200811

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-0R010×2iASA3#,GSA3#..NAP200811

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-0R020iASA3#,GSA3#..NAP200811

main63148-0R010iASA3#,GSA3#..NAP..STD201009

US BASE PLUS PACKAGE

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-0R010iASA3#,GSA3#..NAP200811

63185DBRACKET, ROOF RACK, FRONT

main63185-0R010×4iASA3#,GSA3#..NAP..(SPO,STD)200811-200905

(L)

main63185-42020×4iASA3#,GSA3#..NAP..(SPO,STD)200811-200905

(J)

63187ABRACKET, ROOF RACK, REAR

main63187-0R010×4iASA3#,GSA3#..NAP200811

63479RETAINER, ROOF INNER RACK

main63479-0E010×4iASA3#,GSA3#..NAP200811

9008010408

main90080-10408

9011908C47

main90119-08C47

9017906274

main90179-06274

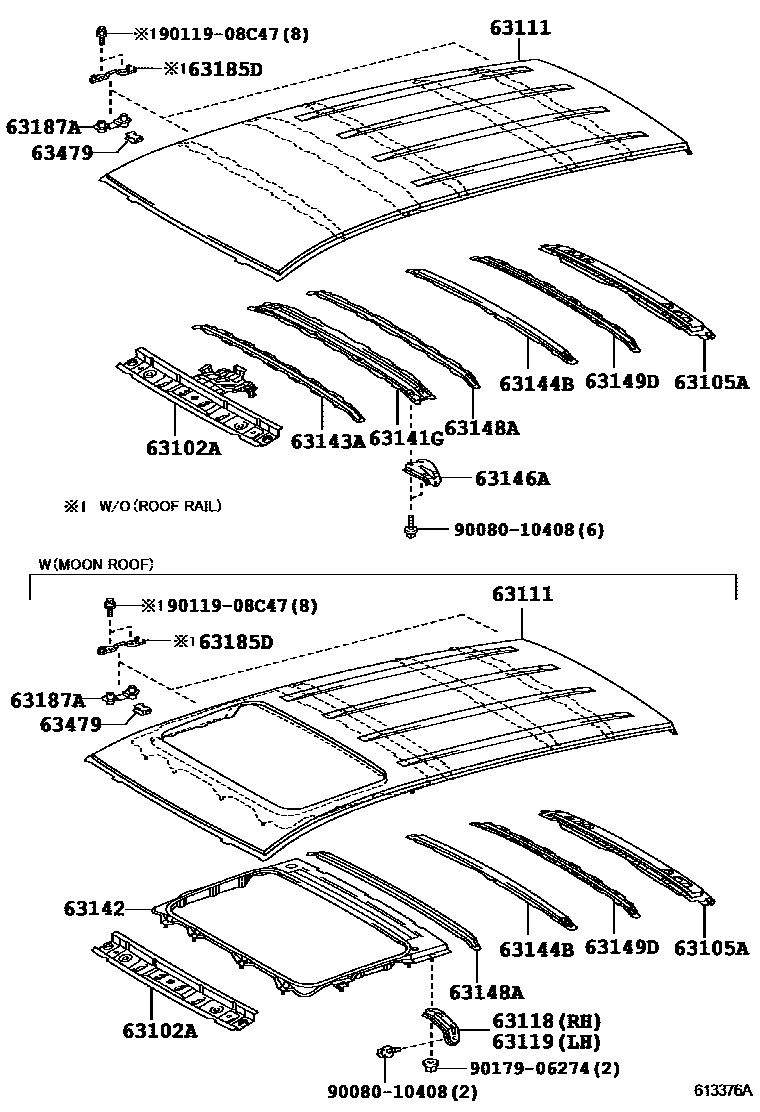

18 parts on this diagram · 3 diagrams in section
