Toyota RAV4 (NAP) — REAR BUMPER & BUMPER STAY

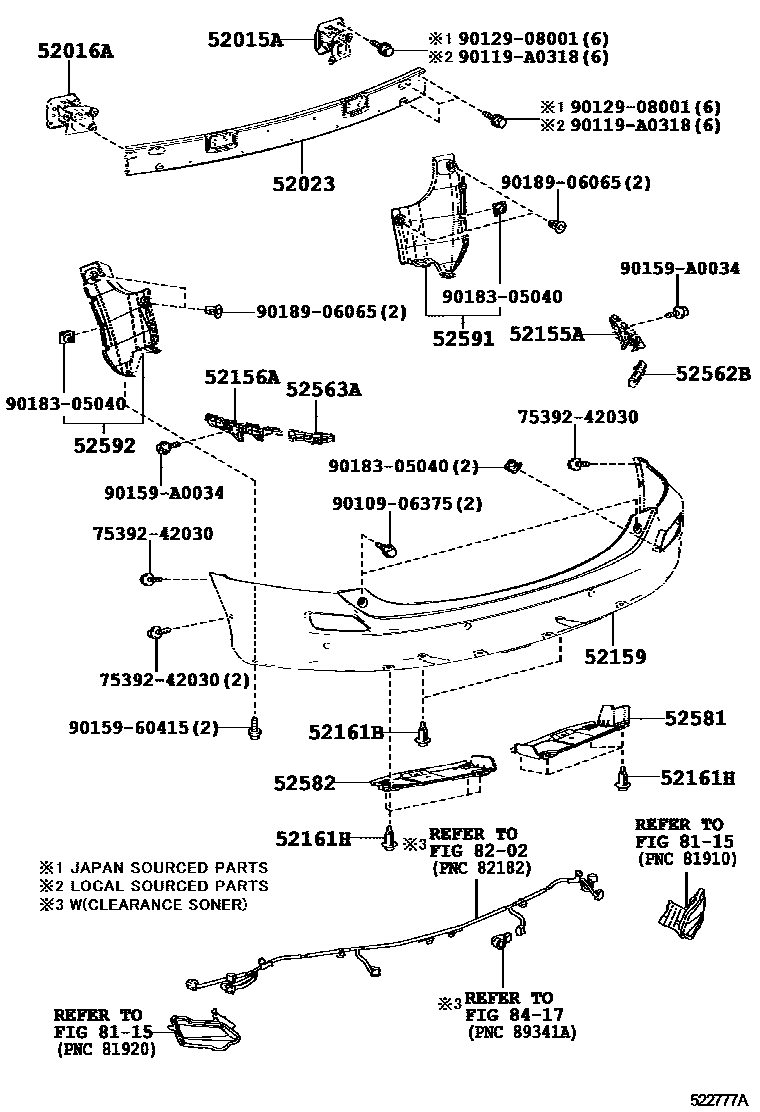

Parts diagram
52015AARM SUB-ASSY, REAR BUMPER, RH
main52015-0R020i201511
52016AARM SUB-ASSY, REAR BUMPER, LH
main52016-0R020i201301-201511
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
main52023-0R020i201301-201511
52155ASUPPORT, REAR BUMPER SIDE, RH
main52155-0R030i201301-201511
main52155-0R050i201511
52156ASUPPORT, REAR BUMPER SIDE, LH
main52156-0R030i201301-201511
main52156-0R050i201511-201709
52159COVER, REAR BUMPER
main52159-0R914i201511-201709
PAINT REQ.
main52150-0R120supersedes 52150-0R110i201301-201511
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
main52159-0R080supersedes 52159-0R070i201301-201511
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH
52161BPIECE, REAR BUMPER
main52161-02020×2i201301-201511
52161HPIECE, REAR BUMPER
main52161-02020×8i201511
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-0R030i201301-201511
main52562-0R050i201511-201709
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-0R030i201301-201511
main52563-0R050i201511-201709
52581PROTECTOR, REAR BUMPER, RH
main58723-0R010i201301-201511
main58723-0R040i201511-201710
main58723-0R120i201710
52582PROTECTOR, REAR BUMPER, LH
main58724-0R010i201301-201511
main58724-0R040i201511-201710
main58724-0R120i201710
52591SEAL, REAR BUMPER SIDE, RH
main52591-0R030i201301-201511
main52591-0R050i201511
52592SEAL, REAR BUMPER SIDE, LH
main52592-0R030i201301-201511
main52592-0R050i201511-201709
8115REFLEX REFLECTOR
→ Go to FIG 81-15
8202WIRING & CLAMP
→ Go to FIG 82-02
8417CLEARANCE & BACK SONAR
→ Go to FIG 84-17
7539242030RETAINER, OUTSIDE MOULDING
main75392-42030
9010906375
main90109-06375
90119A0318
main90119-A0318
9012908001
main90129-08001
9015960415
main90159-60415
90159A0034
main90159-A0034
9018305040
main90183-05040
9018906065
main90189-06065

25 parts on this diagram · 2 diagrams in section

REAR BUMPER & BUMPER STAY for Toyota RAV4 (NAP)

This section contains 33 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota RAV4 (NAP). Key components include: ARM SUB-ASSY, REAR BUMPER, RH, ARM SUB-ASSY, REAR BUMPER, LH, REINFORCEMENT SUB-ASSY, REAR BUMPER, SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH.
