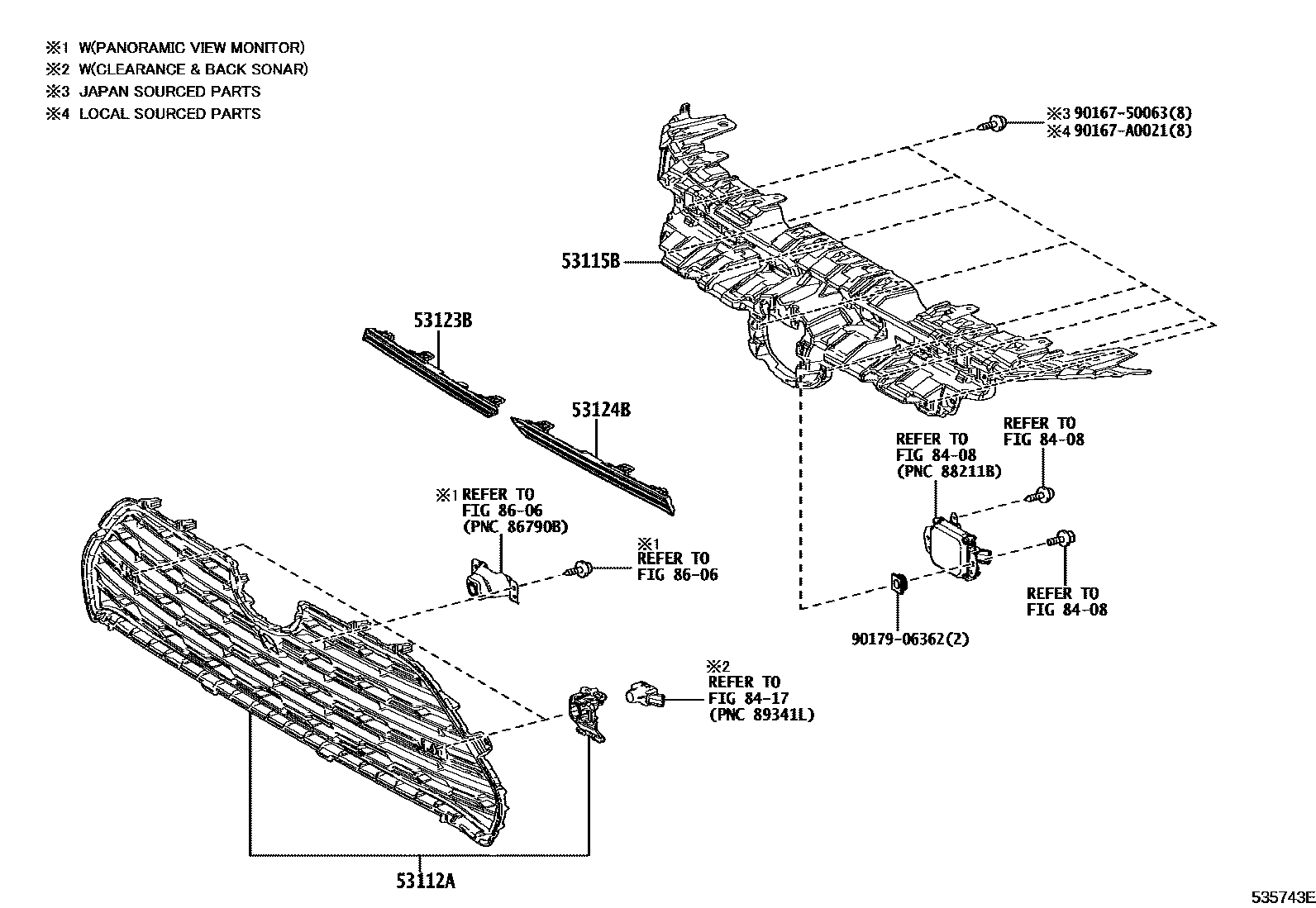

Toyota RAV4 (NAP) — RADIATOR GRILLE

53112AGRILLE, RADIATOR, LOWER

main53112-0R120i202211

main53112-0R410i202112-202211

main53112-0R130i201910-202009

CLEARANCE & BACK SONAR-WITH; FRONT FOG LAMP-WITH(LED TYPE)&CLEARANCE & BACK SONAR-WITH

main53112-0R140i202009-202112

WITH(BODY STRIPE)&FRONT FOG LAMP-WITH(LED TYPE)&BACK MONITOR-WITH(*BGM)

main53112-0R150i201903-202009

WITH(BODY STRIPE)&FRONT FOG LAMP-WITH(BULB TYPE)&CLEARANCE & BACK SONAR-WITH&BACKMONITOR-WITH(*BGM); WITH(BODY STRIPE)&FRONT FOG LAMP-WITH(LED TYPE)&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(*BGM)

main53112-0R160supersedes 53112-0R150i202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main53112-0R420i202112-202211

CLEARANCE & BACK SONAR-WITH

main53112-0R430i202211

AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH

53115BBRACKET, RADIATOR GRILLE

main53115-0R010i202211

main53115-0R020i201812-202009

main53115-0R021i202211

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-0R050i202211

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-0R040i202009

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9016750063

main90167-50063

90167A0021

main90167-A0021

9017906362

main90179-06362

10 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota RAV4 (NAP)

This section contains 12 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota RAV4 (NAP). Key components include: GRILLE, RADIATOR, GRILLE, RADIATOR, LOWER, BRACKET, RADIATOR GRILLE, MOULDING, RADIATOR GRILLE SIDE, RH, MOULDING, RADIATOR GRILLE SIDE, LH.
