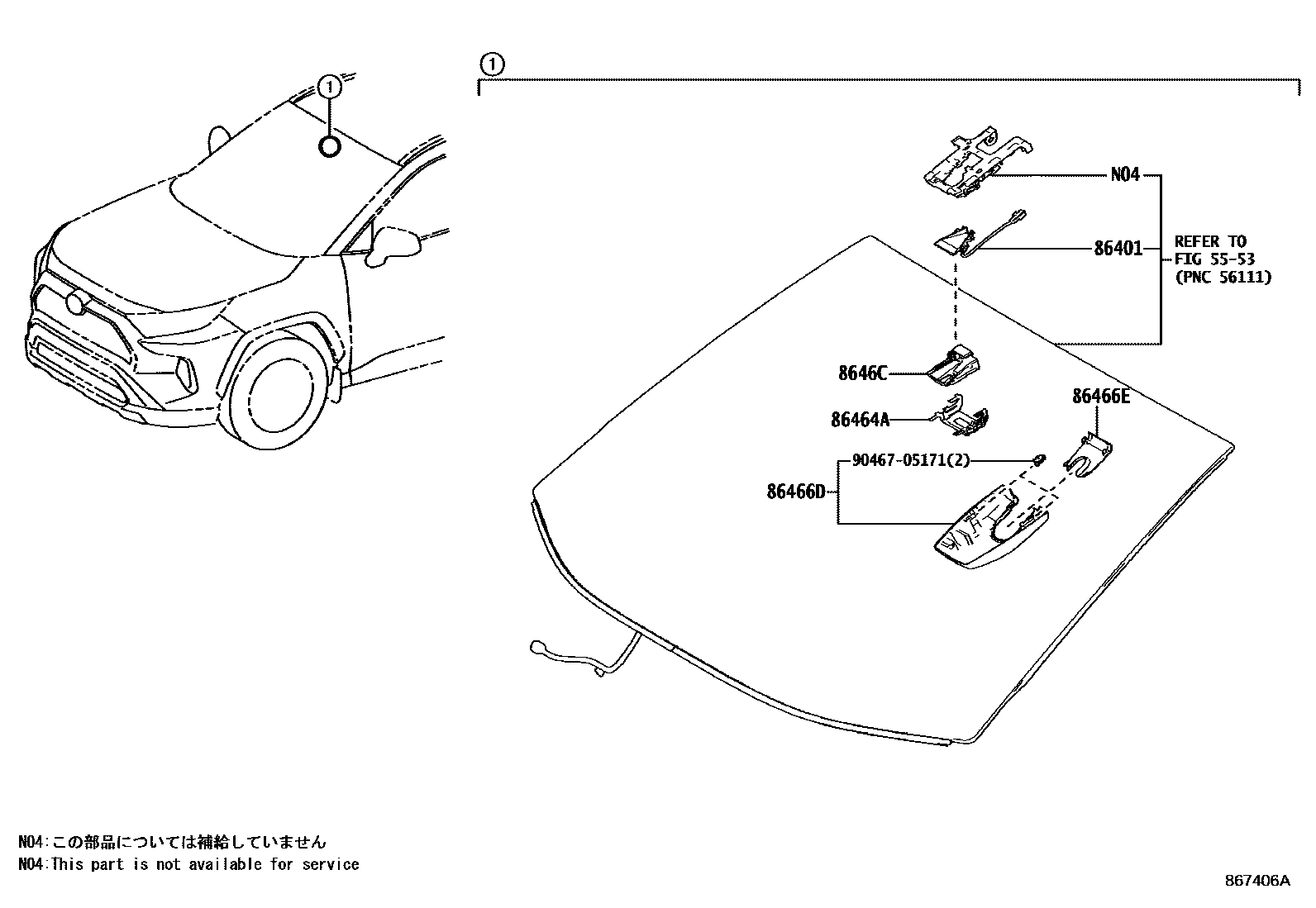

Toyota RAV4 (NAP) — PRE-COLLISION SYSTEM

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-10010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211

main86401-42040iAXAA5#,AXAH54201812-201906

main86401-42041iAXAA5#,AXAH54,AXAL54202009-202112

86464ALATCH, FORWARD RECOGNITION

main86464-26010iAXAA5#,AXAH54,AXAL54201812-202009

main86464-K0010iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42060iAXAA5#,AXAH54,AXAL54201812-202009

main86466-42120iAXAA52..M..CND202112

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42070iAXAA52..X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54..M,P,S,V,X202009-202211

main86466-42130supersedes 86466-42070iAXAA5#,AXAH54,AXAL54..G202009-202112

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

8646CCAMERA, FORWARD RECOGNITION

main8646C-0R030iAXAA5#,AXAH54201812-201910

main8646C-0R031iAXAA5#,AXAH54,AXAL54201910-202009

main8646C-0R032iAXAA5#,AXAH54,AXAL54202009-202112

main8646C-0R090iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202112-202211

main8646C-0R142iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202411

main8646C-0R200iAXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54202211-202411

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
