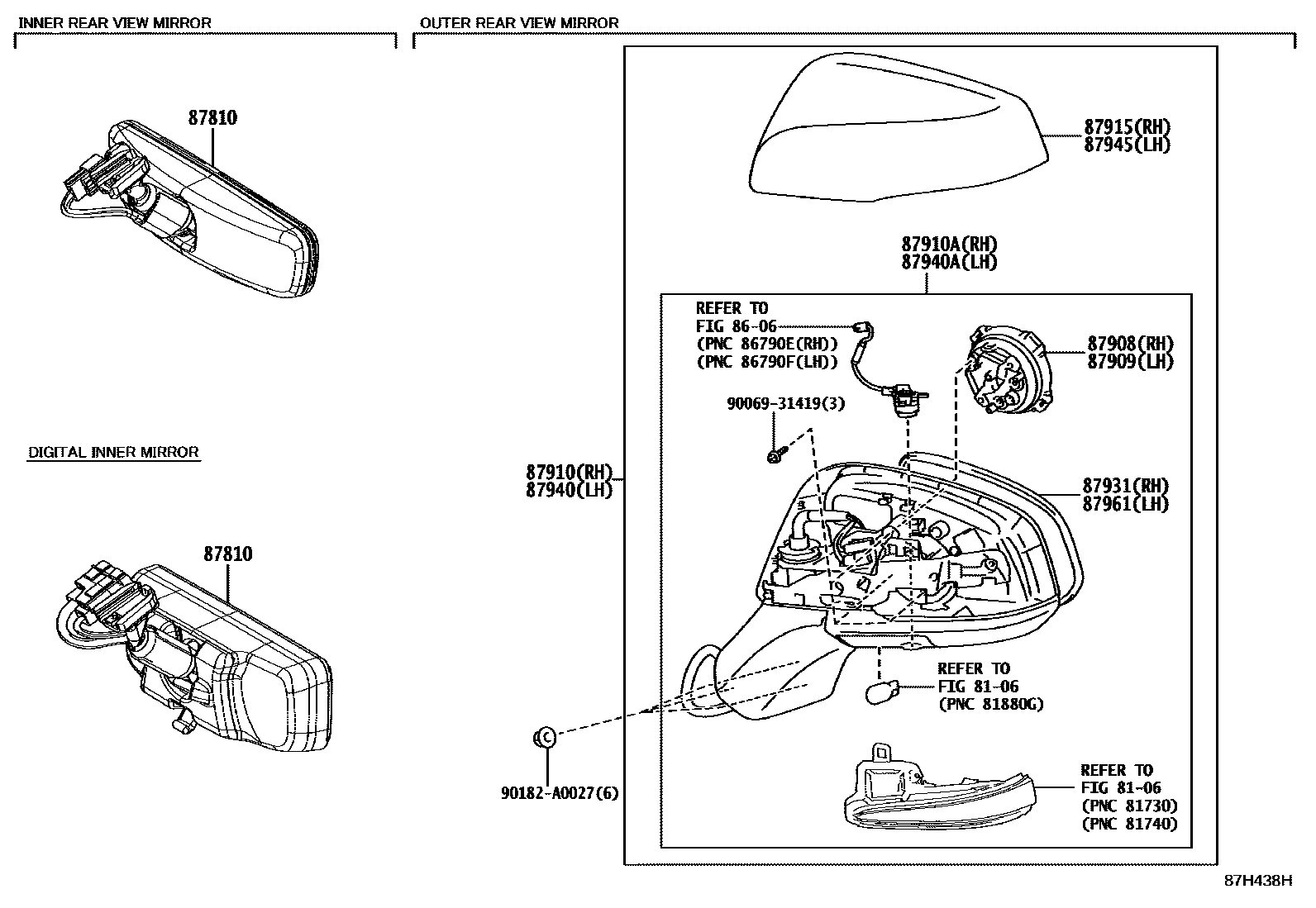

Toyota RAV4 (NAP) — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0R110i201812-201910

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOME LINK

main87810-0R190i201910-202009

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOME LINK

main87810-0WQ40i201812-202009

main87810-0WW70i202211

main87810-0R170i201903-201910

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main87810-0R200i201910-202009

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main87810-0R250supersedes 87810-0WQ40i202009

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOME LINK

main87810-0WW60i202111-202211

MEXICO SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87925-0R260i202009

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87925-0R260i202009

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0R260i201812-201903

main87910-0R262i202108-202112

NO PAINT REQ.; NO PAINT REQ.,MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

main87910-0R270-A0i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,SUPER WHITE 2,040; SUPER WHITE 2,040

main87910-0R270-B0i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,SILVER ME.,1D6; SILVER ME.,1D6

main87910-0R270-B1i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,GRAY ME.,1G3; GRAY ME.,1G3

main87910-0R270-C0i201812-201903

ATTITUDE BLACK MC.,1G3 ,218 ,2QU ,2QV ,2QW ,2QX ,6V5 ,8W9; ATTITUDE BLACK MC.,218; BLIND SPOT MONITOR-WITH & *RCTA,ATTITUDE BLACK MC.,218

main87910-0R270-D0i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,RED MC.,3T3; RED MC.,3T3

main87910-0R270-G1i201812-201903

URBAN KHAKI,6X3

main87910-0R270-J0i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,CYAN METALLIC,8W9; CYAN METALLIC,8W9

main87910-0R270-J1i201812-201903

DK. BLUE MC.,8X8

main87910-0R271-A0i202009-202107

BLIND SPOT MONITOR-WITH & *RCTA,SUPER WHITE 2,040; SUPER WHITE 2,040

main87910-0R271-A1i202009-202107

WHITE PEARL CS.,070

main87910-0R271-B0i201903-202009

BLIND SPOT MONITOR-WITH & *RCTA,SILVER ME.,1D6; SILVER ME.,1D6

main87910-0R271-B1i201903-202009

BLIND SPOT MONITOR-WITH & *RCTA,GRAY ME.,1G3; GRAY ME.,1G3

main87910-0R271-C0i202009-202107

ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA; BLIND SPOT MONITOR-WITH & *RCTA,ATTITUDE BLACK MC.,218

main87910-0R271-D0i202009-202107

BLIND SPOT MONITOR-WITH & *RCTA,RED MC.,3T3; RED MC.,3T3

main87910-0R271-G1i201903-202009

URBAN KHAKI,6X3

main87910-0R271-J0i202009-202112

BLIND SPOT MONITOR-WITH & *RCTA,CYAN METALLIC,8W9; CYAN METALLIC,8W9

main87910-0R271-J1i202009-202107

DK. BLUE MC.,8X8

main87910-0R272-A0i202108

SUPER WHITE 2,040

main87910-0R272-A1i202108

WHITE PEARL CS.,070

main87910-0R272-B0i202108

SILVER ME.,1D6

main87910-0R272-B1i202108

GRAY ME.,1G3

main87910-0R272-C0i202112-202211

ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2VV

main87910-0R272-D0i202108

RED MC.,3T3

main87910-0R272-G1i202108

URBAN KHAKI,6X3

main87910-0R272-J0i202112

8W9

main87910-0R272-J1i202108

DK. BLUE MC.,8X8

main87910-0R272-J2i202112-202211

GRAYISH BLUE,8W2

main87910-0R560i202112-202211

MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

main87910-0R908supersedes 87910-0R560i202112-202208

PAINT REQ.; PAINT REQ.,BLIND SPOT MONITOR-WITH & *RCTA; PAINT REQ.,CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB

main87910-0R261i202010-202107

NO PAINT REQ.,MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

main87910-0R272-C1supersedes 87910-0R271-C1i202108-202211

BODY STRIPE-WITH(ADVENTURE),BLACK,040 ,1G3 ,218 ,2QU ,2QW ,2QX ,2TU ,3T3 ,6X3 ,8W2; BODY STRIPE-WITHOUT&TRD OFFROAD PACKAGE,BLACK,040 ,1G3 ,218 ,2QU ,2QW ,2QX ,2TU ,3T3 ,6X3 ,8W2

main87910-0R290-A1supersedes 87910-0R280-A1i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070

main87910-0R290-B0supersedes 87910-0R280-B0i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,SILVER ME.,1D6

main87910-0R290-B1i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,GRAY ME.,1G3

main87910-0R290-C0supersedes 87910-0R270-C0i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,ATTITUDE BLACK MC.,1G3 ,218 ,2QU ,2QV ,2QW ,2QX ,6V5 ,8W9

main87910-0R290-C1supersedes 87910-0R270-C1i201812-201903

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,BLACK,2QU ,2QV ,2QW ,2QX

main87910-0R290-D0i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,RED MC.,3T3

main87910-0R290-G1i201812-201903

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,URBAN KHAKI,6X3

main87910-0R290-J0i201812-201903

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,CYAN METALLIC,8W9

main87910-0R290-J1supersedes 87910-0R280-J1i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. BLUE MC.,8X8; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,DK. BLUE MC.,8X8

main87910-0R291-A1supersedes 87910-0R281-A1i202009-202108

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070

main87910-0R291-B0supersedes 87910-0R281-B0i202009-202108

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6

main87910-0R291-B1i201903-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,GRAY ME.,1G3

main87910-0R291-C0i202009-202108

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,ATTITUDE BLACK MC.,218

main87910-0R291-C1supersedes 87910-0R271-C1i201903-202009

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,BLACK,040 ,1G3 ,218 ,2QU ,2QV ,2QW ,2QX ,3T3 ,6X3

main87910-0R291-D0i202009-202108

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,RED MC.,3T3

main87910-0R291-G1i202009-202108

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,URBAN KHAKI,6X3

main87910-0R291-J0i201903-202009

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,CYAN METALLIC,8W9

main87910-0R291-J1supersedes 87910-0R281-J1i202009-202108

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. BLUE MC.,8X8

main87910-0R292-A1i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070

main87910-0R292-B0i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6

main87910-0R292-B1i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3

main87910-0R292-D0i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3

main87910-0R292-J1i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. BLUE MC.,8X8

main87910-0R500-A1i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),070

main87910-0R500-B0i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),1D6

main87910-0R500-B1i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),1G3

main87910-0R500-C0i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),218; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,218

main87910-0R500-C1supersedes 87910-0R271-C1i202108-202112

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,040 ,1G3 ,218 ,2QU ,2QV ,2QW ,2QX ,2TU ,3T3 ,6X3 ,8W2

main87910-0R500-D0i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),3T3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,3T3

main87910-0R500-G1i202108-202112

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,6X3

main87910-0R500-J0i202108-202112

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,8W9

main87910-0R500-J1i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),8X8

main87910-0R907i202112-202208

PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB

main87910-0R911i202112-202208

PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

87910AMIRROR ASSY, OUTER REAR VIEW, W/O COVER, RH

main87910-0R908supersedes 00000-00000i202112

main00000-00000i202211

MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT,NOT APPLICABLE; NOT APPLICABLE

main87910-0R907i202112-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB

main87910-0R910i202211-202310

AUDIO-JBL & 10.5INCH DISPLAY&CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB

main87910-0R911i202112-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main87910-0R912i202310

87915COVER, OUTER MIRROR, RH

main87915-0R140-A0i202108

SUPER WHITE 2,040

main87915-0R140-A1i201812-202009

WHITE PEARL CS.,070

main87915-0R140-A2i202211

PLATINUM WHITE PEARL MC.,089

main87915-0R140-B0i201812-202009

BLIND SPOT MONITOR-WITH & *RCTA,SILVER ME.,1D6; SILVER ME.,1D6

main87915-0R140-B1i201812-202009

BLIND SPOT MONITOR-WITH & *RCTA,GRAY ME.,1G3; GRAY ME.,1G3

main87915-0R140-C0i201812-201903

BLACK,2QU ,2QV ,2QW ,2QX

main87915-0R140-C1i202211

ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2UE ,M02; ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV; BLIND SPOT MONITOR-WITH & *RCTA,ATTITUDE BLACK MC.,218

main87915-0R140-D0i202211

BLIND SPOT MONITOR-WITH & *RCTA,RED MC.,3T3; RED MC.,3T3

main87915-0R140-G0i202009

URBAN KHAKI,6X3

main87915-0R140-G2i202310

DK.GREEN,6V7

main87915-0R140-J0i201812-202009

BLIND SPOT MONITOR-WITH & *RCTA,CYAN METALLIC,8W9; CYAN METALLIC,8W9

main87915-0R140-J1i201812-202009

DK. BLUE MC.,8X8

main87915-0R140-J3i202112-202211

GRAYISH BLUE,8W2

main87915-0R150i202211

NO PAINT REQ.; NO PAINT REQ.,MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

87931OUTER MIRROR, RH

main87931-0R280supersedes 87931-0R260i202009

main87931-0R260i202211

MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0R260i201812-201903

main87940-0R262i202108-202112

NO PAINT REQ.; NO PAINT REQ.,MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

main87940-0R270-A0i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,SUPER WHITE 2,040; SUPER WHITE 2,040

main87940-0R270-B0i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,SILVER ME.,1D6; SILVER ME.,1D6

main87940-0R270-B1i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,GRAY ME.,1G3; GRAY ME.,1G3

main87940-0R270-C1i201812-201903

ATTITUDE BLACK MC.,218; BLIND SPOT MONITOR-WITH & *RCTA,ATTITUDE BLACK MC.,218

main87940-0R270-D0i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,RED MC.,3T3; RED MC.,3T3

main87940-0R270-G0i201812-201903

URBAN KHAKI,6X3

main87940-0R270-J0i201812-201903

BLIND SPOT MONITOR-WITH & *RCTA,CYAN METALLIC,8W9; CYAN METALLIC,8W9

main87940-0R270-J1i201812-201903

DK. BLUE MC.,8X8

main87940-0R271-A0i202009-202107

BLIND SPOT MONITOR-WITH & *RCTA,SUPER WHITE 2,040; SUPER WHITE 2,040

main87940-0R271-A1i202009-202107

WHITE PEARL CS.,070

main87940-0R271-B0i202009-202107

BLIND SPOT MONITOR-WITH & *RCTA,SILVER ME.,1D6; SILVER ME.,1D6

main87940-0R271-B1i202009-202107

BLIND SPOT MONITOR-WITH & *RCTA,GRAY ME.,1G3; GRAY ME.,1G3

main87940-0R271-C1i201903-202009

ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA; BLIND SPOT MONITOR-WITH & *RCTA,ATTITUDE BLACK MC.,218

main87940-0R271-D0i201903-202009

BLIND SPOT MONITOR-WITH & *RCTA,RED MC.,3T3; RED MC.,3T3

main87940-0R271-G0i202009-202107

URBAN KHAKI,6X3

main87940-0R271-J0i202009-202112

BLIND SPOT MONITOR-WITH & *RCTA,CYAN METALLIC,8W9; CYAN METALLIC,8W9

main87940-0R271-J1i202009-202107

DK. BLUE MC.,8X8

main87940-0R272-A0i202108

SUPER WHITE 2,040

main87940-0R272-A1i202108

WHITE PEARL CS.,070

main87940-0R272-B0i202108

SILVER ME.,1D6

main87940-0R272-B1i202108

GRAY ME.,1G3

main87940-0R272-C0i202112-202211

BLACK,2QJ ,2QY ,2QZ ,2VV

main87940-0R272-C1i202108

ATTITUDE BLACK MC.,218

main87940-0R272-D0i202108

RED MC.,3T3

main87940-0R272-G0i202108

URBAN KHAKI,6X3

main87940-0R272-J0i202112-202211

8W2 ,8W9; BLIND SPOT MONITOR-WITH & *RCTA,8W9

main87940-0R272-J1i202108

DK. BLUE MC.,8X8

main87940-0R272-J2i202112-202211

GRAYISH BLUE,8W2; GRAYISH BLUE,8W2 ,8W9

main87940-0R550i202112-202211

MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

main87940-0R908supersedes 87940-0R550i202112-202208

PAINT REQ.; PAINT REQ.,BLIND SPOT MONITOR-WITH & *RCTA; PAINT REQ.,CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB

main87940-0R261i202010-202107

NO PAINT REQ.,MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

main87940-0R290-A1supersedes 87940-0R280-A1i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070

main87940-0R290-B0i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,SILVER ME.,1D6

main87940-0R290-B1supersedes 87940-0R280-B1i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,GRAY ME.,1G3

main87940-0R290-C0i201812-201903

main87940-0R290-C1supersedes 87940-0R270-C0i201812-201903

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,BLACK,2QU ,2QV ,2QW ,2QX

main87940-0R290-D0supersedes 87940-0R280-D0i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,RED MC.,3T3

main87940-0R290-G1i201812-201903

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,URBAN KHAKI,6X3

main87940-0R290-J0i201812-201903

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,CYAN METALLIC,8W9

main87940-0R290-J1supersedes 87940-0R280-J1i201812-201903

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. BLUE MC.,8X8; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,DK. BLUE MC.,8X8

main87940-0R291-A1supersedes 87940-0R281-A1i202009-202108

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070

main87940-0R291-B0supersedes 87940-0R281-B0i202009-202108

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6

main87940-0R291-B1i201903-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,GRAY ME.,1G3

main87940-0R291-C0i202009-202108

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,ATTITUDE BLACK MC.,218

main87940-0R291-C1supersedes 87940-0R272-C0i201903-202009

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,BLACK,040 ,1G3 ,218 ,2QU ,2QV ,2QW ,2QX ,3T3 ,6X3

main87940-0R291-D0i201903-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,RED MC.,3T3

main87940-0R291-G1i201903-202009

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,URBAN KHAKI,6X3

main87940-0R291-J0i201903-202009

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,CYAN METALLIC,8W9

main87940-0R291-J1supersedes 87940-0R281-J1i201903-202009

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. BLUE MC.,8X8

main87940-0R292-A1i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),WHITE PEARL CS.,070

main87940-0R292-B0i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1D6

main87940-0R292-B1i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),GRAY ME.,1G3

main87940-0R292-D0i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3

main87940-0R292-J1i202112-202208

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK. BLUE MC.,8X8

main87940-0R490-A1i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),070

main87940-0R490-B0i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),1D6

main87940-0R490-B1i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),1G3

main87940-0R490-C0i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),218; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,218

main87940-0R490-C1supersedes 87940-0R272-C0i202108-202112

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,040 ,1G3 ,218 ,2QU ,2QV ,2QW ,2QX ,2TU ,3T3 ,6X3 ,8W2

main87940-0R490-D0i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),3T3; CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,3T3

main87940-0R490-G1i202108-202112

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,6X3

main87940-0R490-J0i202108-202112

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB,8W9

main87940-0R490-J1i202108-202112

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),8X8

main87940-0R907supersedes 87940-0R911i202112-202208

PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); PAINT REQ.,CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB

main87940-0R911i202112-202208

PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

87940AMIRROR ASSY, OUTER REAR VIEW, W/O COVER, LH

main87940-0R908supersedes 00000-00000i202112

main00000-00000i202211

MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT,NOT APPLICABLE; NOT APPLICABLE

main87940-0R907i202112-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & *RCTB

main87940-0R910i202211-202310

main87940-0R911i202112-202211

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main87940-0R912i202310

87945COVER, OUTER MIRROR, LH

main87945-0R140-A0i202009

SUPER WHITE 2,040

main87945-0R140-A1i201812-202009

WHITE PEARL CS.,070

main87945-0R140-A2i202211

PLATINUM WHITE PEARL MC.,089

main87945-0R140-B0i202211

BLIND SPOT MONITOR-WITH & *RCTA,SILVER ME.,1D6; SILVER ME.,1D6

main87945-0R140-B1i201812-202009

BLIND SPOT MONITOR-WITH & *RCTA,GRAY ME.,1G3; GRAY ME.,1G3

main87945-0R140-C0i202211

BLACK,040 ,1G3 ,218 ,2QU ,2QW ,2QX ,2TU ,3T3 ,6V7 ,6X3 ,8W2 ,M30

main87945-0R140-C1i202211

ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2UE ,M02; ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV; BLIND SPOT MONITOR-WITH & *RCTA,ATTITUDE BLACK MC.,218

main87945-0R140-D0i201812-202009

BLIND SPOT MONITOR-WITH & *RCTA,RED MC.,3T3; RED MC.,3T3

main87945-0R140-G0i201812-202009

URBAN KHAKI,6X3

main87945-0R140-G2i202310

DK.GREEN,6V7

main87945-0R140-J0i201812-202009

BLIND SPOT MONITOR-WITH & *RCTA,CYAN METALLIC,8W9; CYAN METALLIC,8W9

main87945-0R140-J1i202211

DK. BLUE MC.,8X8

main87945-0R140-J3i202211

GRAYISH BLUE,8W2

main87945-0R150i202211

NO PAINT REQ.; NO PAINT REQ.,MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

87961MIRROR OUTER, LH

main87961-0R280supersedes 87961-0R260i202009-202211

BLIND SPOT MONITOR-WITH & *RCTA

main87961-0R260i202010-202211

MEXICO SPEC&BLIND SPOT MONITOR-WITHOUT

9006931419

main90069-31419

90182A0027

main90182-A0027

15 parts on this diagram · 1 diagram in section

MIRROR for Toyota RAV4 (NAP)

This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota RAV4 (NAP). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
