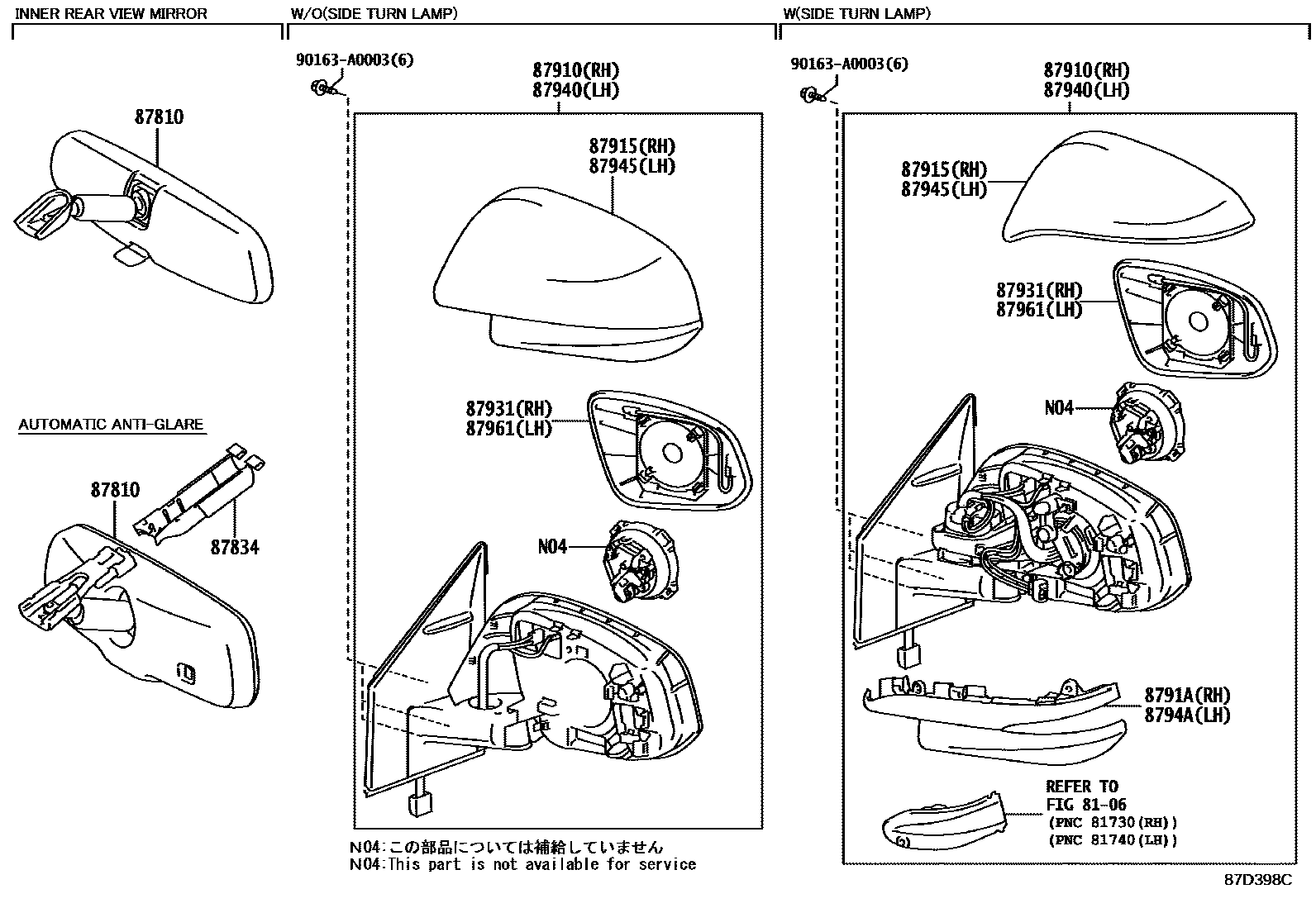

Toyota RAV4 (NAP) — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-06080i201301-201511

main87810-0WK20i201301-201507

main87810-0WK21i201508-201511

main87810-0WQ40i201511

INSIDE REAR VIEW MIRROR-WITH

main87810-0WQ20i201511-201609

INSIDE REAR VIEW MIRROR-WITH(AUTOMATIC ANTI-GLARE)

main87810-0WQ30i201511-201609

PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITH&INSIDE REAR VIEW MIRROR-WITH(AUTOMATIC ANTI-GLARE)

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-0W070i201511-201709

INSIDE REAR VIEW MIRROR-WITH(AUTOMATIC ANTI-GLARE)

main87818-47010i201301-201511

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0R070i201301-201411

NO PAINT REQ.,MATERIAL COLOR

main87910-0R080-A0i201301-201411

SUPER WHITE 2,040

main87910-0R080-A1i201301-201411

WHITE PEARL CS.,070

main87910-0R080-B0i201301-201411

SILVER ME.,1F7

main87910-0R080-B1i201301-201411

GRAY ME.,1G3

main87910-0R080-C0i201301-201411

BLACK,202

main87910-0R080-D0i201301-201411

RED M.M.,3R3

main87910-0R080-E0i201301-201411

BRONZE M.M.,4T3

main87910-0R080-E1i201409-201411

ORANGE ME.,4R8

main87910-0R080-G0i201301-201312

DK.GREEN MC.,6V4

main87910-0R080-J0i201301-201409

GRAYISH BLUE M.M.,8V5

main87910-0R080-J1i201312-201411

DK.BLUE M.M.,8W7

main87910-0R160i201411-201511

NO PAINT REQ.,MATERIAL COLOR

main87910-0R170-A0i201411-201511

SUPER WHITE 2,040

main87910-0R170-A1i201411-201511

WHITE PEARL CS.,070

main87910-0R170-B0i201411-201511

SILVER ME.,1F7

main87910-0R170-B1i201411-201511

GRAY ME.,1G3

main87910-0R170-C0i201411-201511

BLACK,202

main87910-0R170-D0i201411-201511

SUPER RED 5,3P0

main87910-0R170-D1i201411-201511

RED M.M.,3R3

main87910-0R170-E0i201411-201511

ORANGE ME.,4R8

main87910-0R170-E1i201411-201511

BRONZE M.M.,4T3

main87910-0R170-J0i201411-201511

DK.BLUE M.M.,8W7

main87910-0R200i201511

NO PAINT REQ.,MATERIAL COLOR

main87910-0R210-A0i201511

SUPER WHITE 2,040

main87910-0R210-A1i201511

WHITE PEARL CS.,070

main87910-0R210-B0i201511

FRONT BUMPER-WITH(TWO TONE COLOR),SILVER ME.,040 ,1D6 ,202 ,8X7; SILVER ME.,040 ,1D6 ,202 ,8X7; SILVER ME.,1D6

main87910-0R210-B1i201511

GRAY ME.,1G3

main87910-0R210-C0i201511

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK),BLACK,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3T3 ,8X7 ,9AH; ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK),BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH; BLACK,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3T3 ,8X7 ,9AH; BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH; BLACK,202; FRONT BUMPER-WITH(MOULDING(MATERIAL COLOR)),BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH

main87910-0R210-C1i201609

BLACKISH AGEHA GF.,221

main87910-0R210-D0i201511-201709

RED M.M.,3R3

main87910-0R210-D1i201709

RED MC.,3T3

main87910-0R210-E0i201511-201609

ORANGE ME.,4R8

main87910-0R210-J1i201511

BLUE ME.,8X7

main87910-0R210-K0i201511

DEEP AMETHYST M.M.,9AH

main87910-0R090-A0i201301-201411

BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

main87910-0R090-A1i201301-201411

BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,070

main87910-0R090-B0i201301-201411

BLIND SPOT MONITOR-WITH,SILVER ME.,1F7

main87910-0R090-B1i201301-201411

BLIND SPOT MONITOR-WITH,GRAY ME.,1G3

main87910-0R090-C0i201301-201411

BLIND SPOT MONITOR-WITH,BLACK,202

main87910-0R090-D0i201301-201411

BLIND SPOT MONITOR-WITH,RED M.M.,3R3

main87910-0R090-E0i201301-201411

BLIND SPOT MONITOR-WITH,BRONZE M.M.,4T3

main87910-0R090-E1i201409-201411

BLIND SPOT MONITOR-WITH,ORANGE ME.,4R8

main87910-0R090-G0i201301-201312

BLIND SPOT MONITOR-WITH,DK.GREEN MC.,6V4

main87910-0R090-J0i201301-201409

BLIND SPOT MONITOR-WITH,GRAYISH BLUE M.M.,8V5

main87910-0R090-J1i201312-201411

BLIND SPOT MONITOR-WITH,DK.BLUE M.M.,8W7

main87910-0R180-A0i201609

BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

main87910-0R180-A1i201411-201511

BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,070

main87910-0R180-B0i201411-201511

BLIND SPOT MONITOR-WITH,SILVER ME.,1F7

main87910-0R180-B1i201609

BLIND SPOT MONITOR-WITH,GRAY ME.,1G3

main87910-0R180-B2supersedes 87910-0R210-B0i201609

BLIND SPOT MONITOR-WITH,SILVER ME.,040 ,202 ,8X7; BLIND SPOT MONITOR-WITH,SILVER ME.,1D6; FRONT BUMPER-WITH(TWO TONE COLOR)&BLIND SPOT MONITOR-WITH,SILVER ME.,040 ,1D6 ,202,8X7

main87910-0R180-C0supersedes 87910-0R210-C0i201511

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)&BLIND SPOT MONITOR-WITH,BLACK,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3T3 ,8X7 ,9AH; ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)&FRONT BUMPER-WITH(MOULDING(MATERIAL COLOR))&BLIND SPOT MONITOR-WITH,BLACK,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3T3 ,8X7 ,9AH; ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)&FRONT BUMPER-WITH(MOULDING(MATERIAL COLOR))&BLIND SPOT MONITOR-WITH,BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH; BLIND SPOT MONITOR-WITH,BLACK,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3T3 ,8X7 ,9AH; BLIND SPOT MONITOR-WITH,BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH; BLIND SPOT MONITOR-WITH,BLACK,202

main87910-0R180-C1i201609

BLIND SPOT MONITOR-WITH,BLACKISH AGEHA GF.,221

main87910-0R180-D0i201411-201511

BLIND SPOT MONITOR-WITH,RED M.M.,3R3

main87910-0R180-D1i201709

BLIND SPOT MONITOR-WITH,RED MC.,3T3

main87910-0R180-E0i201511-201609

BLIND SPOT MONITOR-WITH,ORANGE ME.,4R8

main87910-0R180-E1i201411-201511

BLIND SPOT MONITOR-WITH,BRONZE M.M.,4T3

main87910-0R180-J0i201411-201511

BLIND SPOT MONITOR-WITH,DK.BLUE M.M.,8W7

main87910-0R180-J2i201511

BLIND SPOT MONITOR-WITH,BLUE ME.,8X7

main87910-0R180-K0i201511

BLIND SPOT MONITOR-WITH,DEEP AMETHYST M.M.,9AH

main87910-0R190-A0i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

main87910-0R190-A1i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,070

main87910-0R190-B0supersedes 87910-0R210-B0i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,SILVER ME.,040 ,1D6 ,202 ,8X7; BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,SILVER ME.,1D6

main87910-0R190-B1i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,GRAY ME.,1G3

main87910-0R190-C0supersedes 87910-0R210-C0i201511

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH; BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3,3T3 ,4R8 ,8X7 ,9AH; BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLACK,202; FRONT BUMPER-WITH(MOULDING(MATERIAL COLOR))&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH

main87910-0R190-C1i201609

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLACKISH AGEHA GF.,221

main87910-0R190-D0i201511-201709

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,RED M.M.,3R3

main87910-0R190-D1i201709

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,RED MC.,3T3

main87910-0R190-E0i201511-201609

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,ORANGE ME.,4R8

main87910-0R190-J1i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLUE ME.,8X7

main87910-0R190-K0i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,DEEP AMETHYST M.M.,9AH

87915COVER, OUTER MIRROR, RH

main87915-0R050i201301-201411

NO PAINT REQ.,MATERIAL COLOR

main87915-0R060-A0i201301-201411

SUPER WHITE 2,040

main87915-0R060-A1i201301-201411

WHITE PEARL CS.,070

main87915-0R060-B0i201301-201411

SILVER ME.,1F7

main87915-0R060-B1i201301-201411

GRAY ME.,1G3

main87915-0R060-C0i201301-201411

BLACK,202

main87915-0R060-D0i201301-201411

RED M.M.,3R3

main87915-0R060-E0i201301-201411

BRONZE M.M.,4T3

main87915-0R060-E1i201409-201411

ORANGE ME.,4R8

main87915-0R060-G0i201301-201312

DK.GREEN MC.,6V4

main87915-0R060-J0i201301-201409

GRAYISH BLUE M.M.,8V5

main87915-0R060-J1i201312-201411

DK.BLUE M.M.,8W7

main87915-0R090i201411-201511

NO PAINT REQ.,MATERIAL COLOR

main87915-0R100-A0i201511

SUPER WHITE 2,040

main87915-0R100-A1i201411-201511

WHITE PEARL CS.,070

main87915-0R100-B0i201411-201511

SILVER ME.,1F7

main87915-0R100-B1i201511

GRAY ME.,1G3

main87915-0R100-B2i201511

FRONT BUMPER-WITH(TWO TONE COLOR),SILVER ME.,040 ,1D6 ,202 ,8X7; SILVER ME.,1D6

main87915-0R100-C0i201411-201511

BLACK,202

main87915-0R100-C1i201609

BLACKISH AGEHA GF.,221

main87915-0R100-D0i201411-201511

SUPER RED 5,3P0

main87915-0R100-D1i201511-201709

RED M.M.,3R3

main87915-0R100-D2i201709

RED MC.,3T3

main87915-0R100-E0i201511-201609

ORANGE ME.,4R8

main87915-0R100-E1i201411-201511

BRONZE M.M.,4T3

main87915-0R100-J0i201411-201511

DK.BLUE M.M.,8W7

main87915-0R100-J2i201511

BLUE ME.,8X7

main87915-0R100-K0i201511

DEEP AMETHYST M.M.,9AH

8791ACOVER, OUTER MIRROR, RH NO.2

main8791B-0R170i201301-201511

main8791B-0R190i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH

87931OUTER MIRROR, RH

main87931-0R070i201301-201511

main87931-0R080i201301-201511

main87931-0R200i201511

main87931-0R210i201511

main87931-0R090i201301-201511

BLIND SPOT MONITOR-WITH

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0R080i201301-201411

NO PAINT REQ.,MATERIAL COLOR

main87940-0R090-A0i201301-201411

SUPER WHITE 2,040

main87940-0R090-A1i201301-201411

WHITE PEARL CS.,070

main87940-0R090-B0i201301-201411

SILVER ME.,1F7

main87940-0R090-B1i201301-201411

GRAY ME.,1G3

main87940-0R090-C0i201301-201411

BLACK,202

main87940-0R090-D0i201301-201411

RED M.M.,3R3

main87940-0R090-E0i201301-201411

BRONZE M.M.,4T3

main87940-0R090-E1i201409-201411

ORANGE ME.,4R8

main87940-0R090-G0i201301-201312

DK.GREEN MC.,6V4

main87940-0R090-J0i201301-201409

GRAYISH BLUE M.M.,8V5

main87940-0R090-J1i201312-201411

DK.BLUE M.M.,8W7

main87940-0R170i201411-201511

NO PAINT REQ.,MATERIAL COLOR

main87940-0R180-A0i201411-201511

SUPER WHITE 2,040

main87940-0R180-A1i201411-201511

WHITE PEARL CS.,070

main87940-0R180-B0i201411-201511

SILVER ME.,1F7

main87940-0R180-B1i201411-201511

GRAY ME.,1G3

main87940-0R180-C0i201411-201511

BLACK,202

main87940-0R180-D0i201411-201511

SUPER RED 5,3P0

main87940-0R180-D1i201411-201511

RED M.M.,3R3

main87940-0R180-E0i201411-201511

ORANGE ME.,4R8

main87940-0R180-E1i201411-201511

BRONZE M.M.,4T3

main87940-0R180-J0i201411-201511

DK.BLUE M.M.,8W7

main87940-0R210i201511

NO PAINT REQ.,MATERIAL COLOR

main87940-0R220-A0i201511

SUPER WHITE 2,040

main87940-0R220-A1i201511

WHITE PEARL CS.,070

main87940-0R220-B0i201511

FRONT BUMPER-WITH(TWO TONE COLOR),SILVER ME.,040 ,1D6 ,202 ,8X7; SILVER ME.,1D6

main87940-0R220-B1i201511

GRAY ME.,1G3

main87940-0R220-C0i201511

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK),BLACK,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3T3 ,8X7 ,9AH; ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK),BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH; BLACK,202; FRONT BUMPER-WITH(MOULDING(MATERIAL COLOR)),BLACK,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3T3 ,8X7 ,9AH; FRONT BUMPER-WITH(MOULDING(MATERIAL COLOR)),BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH

main87940-0R220-C1i201609

BLACKISH AGEHA GF.,221

main87940-0R220-D0i201511-201709

RED M.M.,3R3

main87940-0R220-D1i201709

RED MC.,3T3

main87940-0R220-E0i201511-201609

ORANGE ME.,4R8

main87940-0R220-J1i201511

BLUE ME.,8X7

main87940-0R220-K0i201511

DEEP AMETHYST M.M.,9AH

main87940-0R100-A0i201301-201411

BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

main87940-0R100-A1i201301-201411

BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,070

main87940-0R100-B0i201301-201411

BLIND SPOT MONITOR-WITH,SILVER ME.,1F7

main87940-0R100-B1i201301-201411

BLIND SPOT MONITOR-WITH,GRAY ME.,1G3

main87940-0R100-C0i201301-201411

BLIND SPOT MONITOR-WITH,BLACK,202

main87940-0R100-D0i201301-201411

BLIND SPOT MONITOR-WITH,RED M.M.,3R3

main87940-0R100-E0i201301-201411

BLIND SPOT MONITOR-WITH,BRONZE M.M.,4T3

main87940-0R100-E1i201409-201411

BLIND SPOT MONITOR-WITH,ORANGE ME.,4R8

main87940-0R100-G0i201301-201312

BLIND SPOT MONITOR-WITH,DK.GREEN MC.,6V4

main87940-0R100-J0i201301-201409

BLIND SPOT MONITOR-WITH,GRAYISH BLUE M.M.,8V5

main87940-0R100-J1i201312-201411

BLIND SPOT MONITOR-WITH,DK.BLUE M.M.,8W7

main87940-0R190-A0i201411-201511

BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

main87940-0R190-A1i201511

BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,070

main87940-0R190-B0i201411-201511

BLIND SPOT MONITOR-WITH,SILVER ME.,1F7

main87940-0R190-B1i201411-201511

BLIND SPOT MONITOR-WITH,GRAY ME.,1G3

main87940-0R190-B2i201511

BLIND SPOT MONITOR-WITH,SILVER ME.,1D6; FRONT BUMPER-WITH(TWO TONE COLOR)&BLIND SPOT MONITOR-WITH,SILVER ME.,040 ,1D6 ,202,8X7

main87940-0R190-C0i201511

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)&BLIND SPOT MONITOR-WITH,BLACK,040 ,070 ,1D6 ,1G3 ,202 ,221 ,3T3 ,8X7 ,9AH; ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)&BLIND SPOT MONITOR-WITH,BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH; BLIND SPOT MONITOR-WITH,BLACK,202; FRONT BUMPER-WITH(MOULDING(MATERIAL COLOR))&BLIND SPOT MONITOR-WITH,BLACK,040 ,070,1D6 ,1G3 ,202 ,221 ,3T3 ,8X7 ,9AH; FRONT BUMPER-WITH(MOULDING(MATERIAL COLOR))&BLIND SPOT MONITOR-WITH,BLACK,040 ,1D6,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH

main87940-0R190-C1i201609

BLIND SPOT MONITOR-WITH,BLACKISH AGEHA GF.,221

main87940-0R190-D0i201511-201709

BLIND SPOT MONITOR-WITH,RED M.M.,3R3

main87940-0R190-D1i201709

BLIND SPOT MONITOR-WITH,RED MC.,3T3

main87940-0R190-E0i201411-201511

BLIND SPOT MONITOR-WITH,ORANGE ME.,4R8

main87940-0R190-E1i201411-201511

BLIND SPOT MONITOR-WITH,BRONZE M.M.,4T3

main87940-0R190-J0i201411-201511

BLIND SPOT MONITOR-WITH,DK.BLUE M.M.,8W7

main87940-0R190-J2i201511

BLIND SPOT MONITOR-WITH,BLUE ME.,8X7

main87940-0R190-K0i201511

BLIND SPOT MONITOR-WITH,DEEP AMETHYST M.M.,9AH

main87940-0R200-A0i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,SUPER WHITE 2,040

main87940-0R200-A1i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,070

main87940-0R200-B0i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,SILVER ME.,040 ,1D6 ,202 ,8X7; BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,SILVER ME.,1D6

main87940-0R200-B1i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,GRAY ME.,1G3

main87940-0R200-C0supersedes 87940-0R220-C0i201511

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH; BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLACK,202; FRONT BUMPER-WITH(MOULDING(MATERIAL COLOR))&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLACK,040 ,1D6 ,1G3 ,202 ,221 ,3R3 ,3T3 ,4R8 ,8X7 ,9AH

main87940-0R200-C1i201609

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLACKISH AGEHA GF.,221

main87940-0R200-D0i201511-201709

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,RED M.M.,3R3

main87940-0R200-D1i201709

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,RED MC.,3T3

main87940-0R200-E0i201511-201609

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,ORANGE ME.,4R8

main87940-0R200-J1i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,BLUE ME.,8X7

main87940-0R200-K0i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH,DEEP AMETHYST M.M.,9AH

87945COVER, OUTER MIRROR, LH

main87945-0R050i201301-201411

NO PAINT REQ.,MATERIAL COLOR

main87945-0R060-A0i201301-201411

SUPER WHITE 2,040

main87945-0R060-A1i201301-201411

WHITE PEARL CS.,070

main87945-0R060-B0i201301-201411

SILVER ME.,1F7

main87945-0R060-B1i201301-201411

GRAY ME.,1G3

main87945-0R060-C0i201301-201411

BLACK,202

main87945-0R060-D0i201301-201411

RED M.M.,3R3

main87945-0R060-E0i201301-201411

BRONZE M.M.,4T3

main87945-0R060-E1i201409-201411

ORANGE ME.,4R8

main87945-0R060-G0i201301-201312

DK.GREEN MC.,6V4

main87945-0R060-J0i201301-201409

GRAYISH BLUE M.M.,8V5

main87945-0R060-J1i201312-201411

DK.BLUE M.M.,8W7

main87945-0R090i201411-201511

NO PAINT REQ.,MATERIAL COLOR

main87945-0R100-A0i201411-201511

SUPER WHITE 2,040

main87945-0R100-A1i201511

WHITE PEARL CS.,070

main87945-0R100-B0i201411-201511

SILVER ME.,1F7

main87945-0R100-B1i201511

GRAY ME.,1G3

main87945-0R100-B2i201609

FRONT BUMPER-WITH(TWO TONE COLOR),SILVER ME.,040 ,1D6 ,202 ,8X7; SILVER ME.,1D6

main87945-0R100-C0i201411-201511

BLACK,202

main87945-0R100-C1i201609

BLACKISH AGEHA GF.,221

main87945-0R100-D0i201411-201511

SUPER RED 5,3P0

main87945-0R100-D1i201511-201709

RED M.M.,3R3

main87945-0R100-D2i201709

RED MC.,3T3

main87945-0R100-E0i201411-201511

ORANGE ME.,4R8

main87945-0R100-E1i201411-201511

BRONZE M.M.,4T3

main87945-0R100-J0i201411-201511

DK.BLUE M.M.,8W7

main87945-0R100-J2i201511

BLUE ME.,8X7

main87945-0R100-K0i201511

DEEP AMETHYST M.M.,9AH

8794ACOVER, OUTER MIRROR, LH NO.2

main8794B-0R180i201301-201511

main8794B-0R200i201511

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH

87961MIRROR OUTER, LH

main87961-0R080i201301-201511

main87961-0R090i201301-201511

main87961-0R210i201511

main87961-0R220i201511

main87961-0R100supersedes 87961-0R220i201511-201709

BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH; BLIND SPOT MONITOR-WITH

90163A0003

main90163-A0003

12 parts on this diagram · 2 diagrams in section

MIRROR for Toyota RAV4 (NAP)

This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota RAV4 (NAP). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
