Toyota RAV4 (NAP) — METER

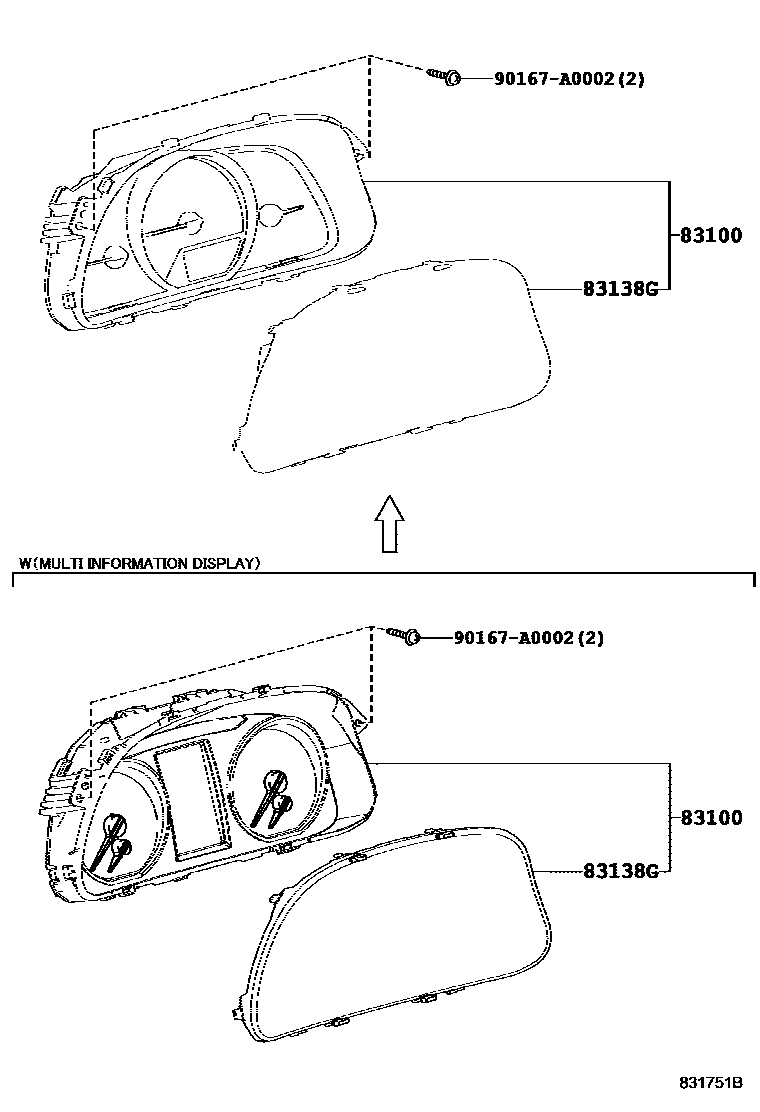

83100METER ASSY, COMBINATION

main83800-0R050i201301-201511

main83800-0R130i201301-201511

MEXICO SPEC

main83800-0R140supersedes 83800-0R080i201301-201511

main83800-0R260supersedes 83800-0R250i201511-201609

BLIND SPOT MONITOR-WITH; MEXICO SPEC; MEXICO SPEC&BLIND SPOT MONITOR-WITH; MEXICO SPEC&CLEARANCE & BACK SONAR-WITH(FRONT & REAR); MEXICO SPEC&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BLIND SPOT MONITOR-WITH; MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR); MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&BLIND SPOT MONITOR-WITH; MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR); MEXICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&CLEARANCE & BACKSONAR-WITH(FRONT & REAR)&BLIND SPOT MONITOR-WITH; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR); POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&BLIND SPOT MONITOR-WITH; PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH; PRE-COLLISION SYSTEM-WITH&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR); PRE-COLLISION SYSTEM-WITH&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&BLIND SPOT MONITOR-WITH

main83800-0R270supersedes 83800-0R240i201511-201609

MEXICO SPEC

main83800-0R390supersedes 83800-0R420i201609-201709

main83800-0R400supersedes 83800-0R360i201609

MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT

main83800-0R160supersedes 83800-0R080i201301-201511

HEADLAMP-WITH(AUTOMATIC HIGH BEAM)

main83800-0R210i201411-201511

ANNIVERSARY PACKAGE(*STRG STITCH-RED)

main83800-0R230i201511-201609

BLIND SPOT MONITOR-WITH; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR); POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&BLIND SPOT MONITOR-WITH; PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH; PRE-COLLISION SYSTEM-WITH&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR); PRE-COLLISION SYSTEM-WITH&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&BLIND SPOT MONITOR-WITH; PUERTORICO SPEC&CLEARANCE & BACK SONAR-WITH(FRONT & REAR); PUERTORICO SPEC&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BLIND SPOT MONITOR-WITH; PUERTORICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&CLEARANCE &BACK SONAR-WITH(FRONT & REAR); PUERTORICO SPEC&POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&CLEARANCE &BACK SONAR-WITH(FRONT & REAR)&BLIND SPOT MONITOR-WITH

main83800-0R250supersedes 83800-0R220i201511-201609

MEXICO SPEC

main83800-0R420supersedes 83800-0R410i201609

MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT

83138GGLASS, COMBINATION METER

main83852-0R050i201301-201511

main83852-0R230supersedes 83852-0R050i201511-201709

90167A0002

main90167-A0002

3 parts on this diagram · 1 diagram in section

METER for Toyota RAV4 (NAP)

This section contains 3 genuine Toyota parts for the METER system of the Toyota RAV4 (NAP). Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
