Toyota RAV4 (NAP) — METER

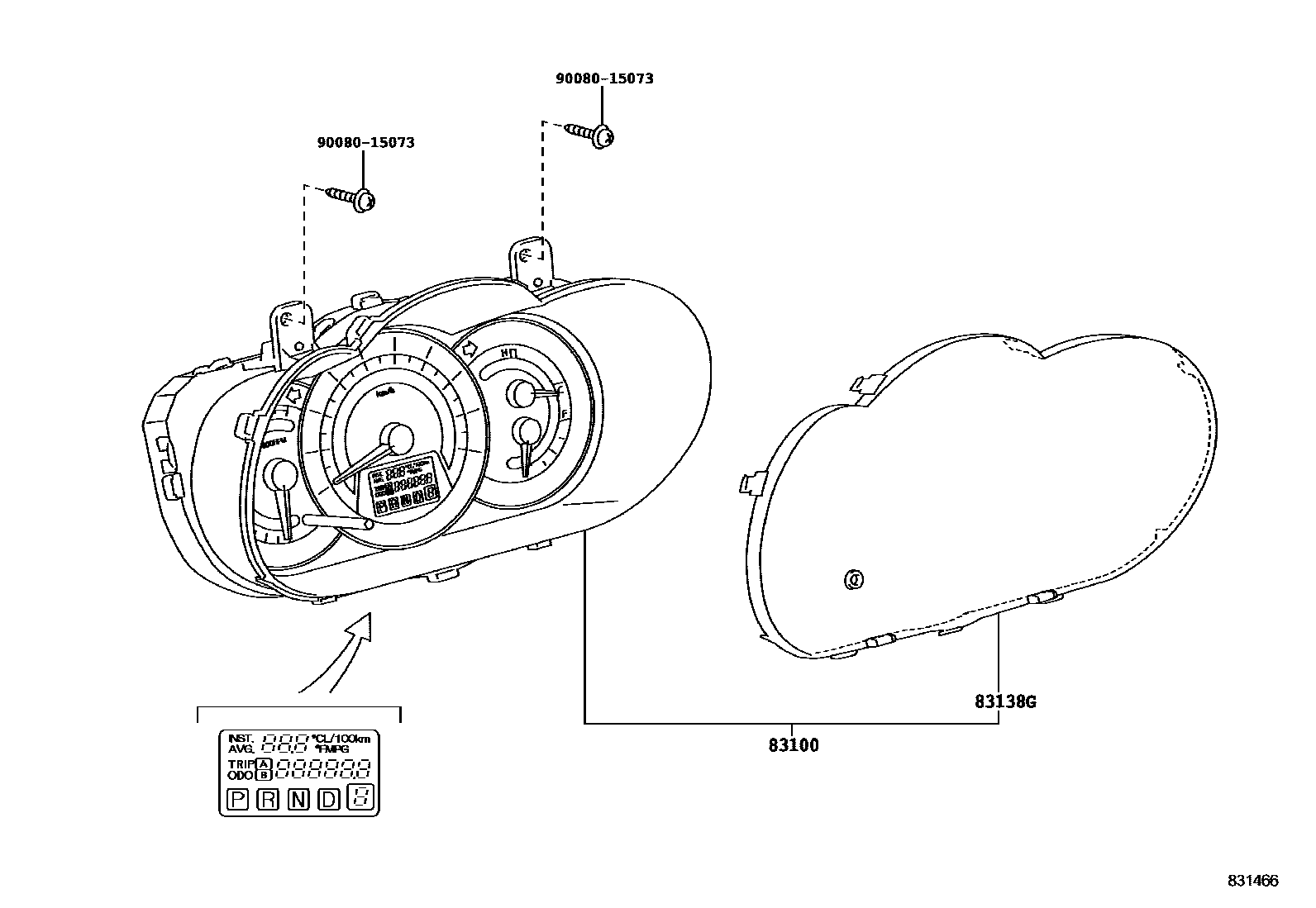

83100METER ASSY, COMBINATION

main83800-0R010supersedes 83800-0R020i200811-200909

THIRD SEAT-WITH

main83800-0R011supersedes 83800-0R021i200909

THIRD SEAT-WITH

main83800-0R090i200811-200909

MEXICO SPEC

main83800-0R091i200909

MEXICO SPEC

main83800-0R100i200904-200909

main83800-0R101i200909

MEXICO SPEC; MEXICO SPEC&THIRD SEAT-WITH

main83800-0R110supersedes 83800-0R030i200811-200909

MEXICO SPEC

main83800-0R111supersedes 83800-0R031i200909

MEXICO SPEC

main83800-0R120supersedes 83800-0R040i200904-200909

main83800-0R121supersedes 83800-0R041i200909

MEXICO SPEC

83138GGLASS, COMBINATION METER

main83852-0R010i200811

9008015073

main90080-15073

3 parts on this diagram · 2 diagrams in section

METER for Toyota RAV4 (NAP)

This section contains 7 genuine Toyota parts for the METER system of the Toyota RAV4 (NAP). Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK SUB-ASSY, ORNAMENT, CLOCK.
