Toyota RAV4 (NAP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

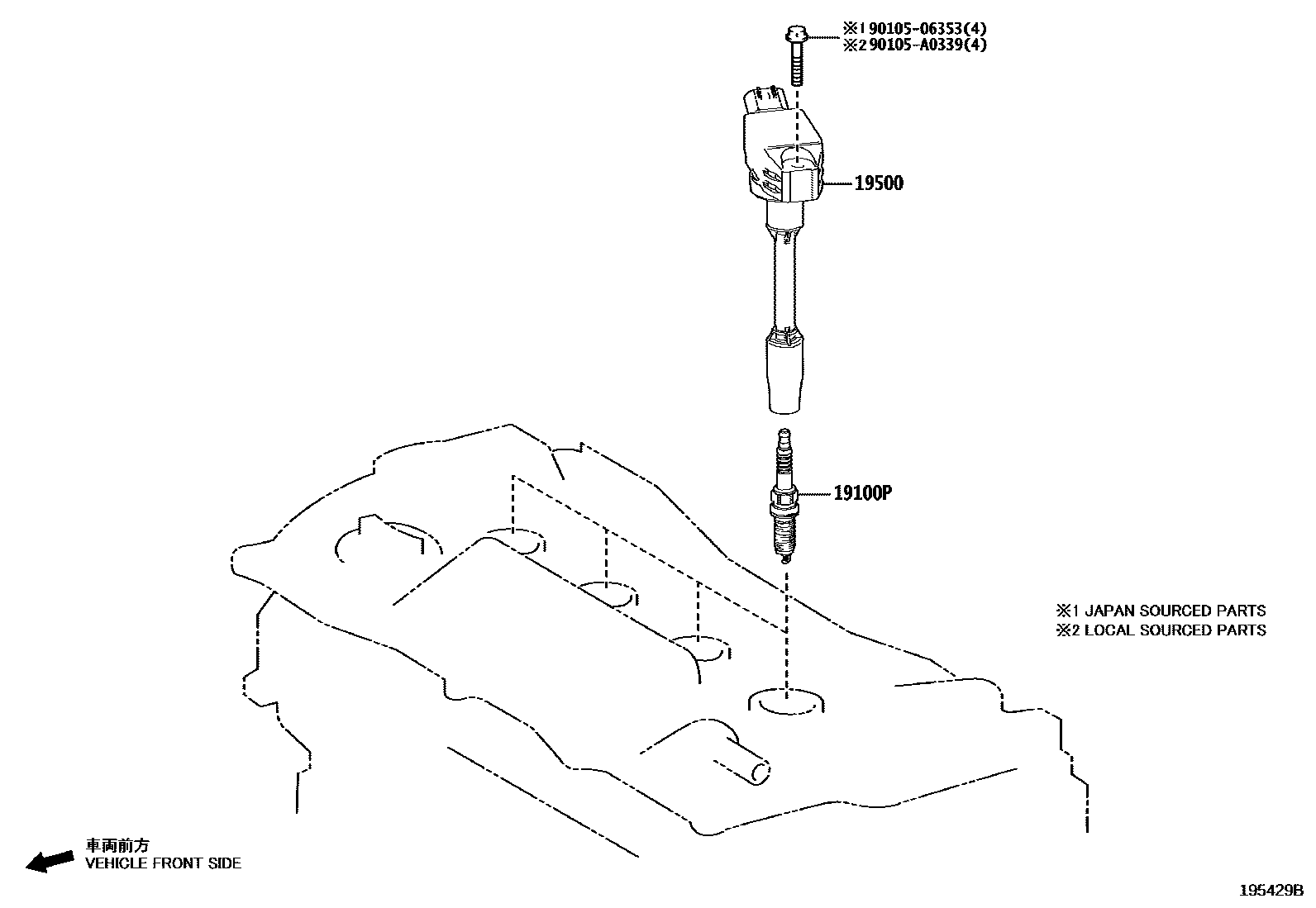

Parts diagram
19100PPLUG, SPARK
main90919-01289×4i202009-202211
FC16HR-Q8,*584
main90919-A1001×4i202211
FC16HR-Q8,*628
19500COIL ASSY, IGNITION
main90919-02276×4i202211
*584
main90919-02277×4i202211
*584
main90919-A2009×4i202009-202211
*628
main90919-A2010×4i202211
*628
9010506353
main90105-06353
90105A0339
main90105-A0339

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota RAV4 (NAP)

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota RAV4 (NAP). Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
