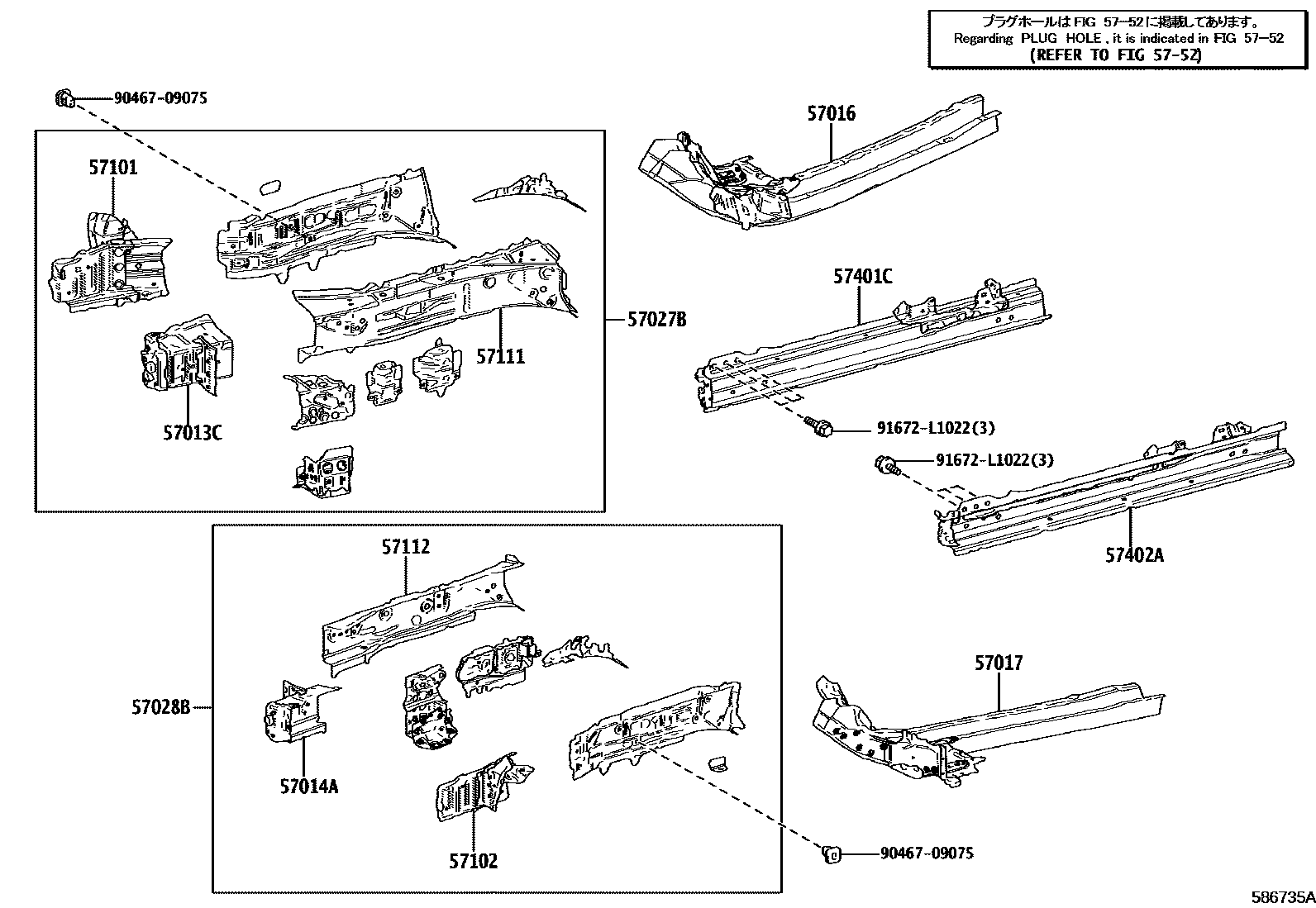

Toyota RAV4 (NAP) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0R010i201812-202009

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0R010i201812-202009

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0R020i201812-202009

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0R020i201812-202009

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-0R900i201812-202009

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-0R900i201812-202009

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57023-0R010i201812-202009

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57024-0R010i201812-202009

57111MEMBER, FRONT SIDE, RH

main57111-06040i202211

57112MEMBER, FRONT SIDE, LH

main57112-06050i201812-201912

main57112-06051i201912-202009

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0R060i201812-202009

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0R090i201812-202009

5752HOLE PLUG

→ Go to FIG 57-52

9046709075

main90467-09075

91672L1022

main91672-L1022

15 parts on this diagram · 3 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota RAV4 (NAP)

This section contains 46 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota RAV4 (NAP). Key components include: BRACKET, CLUTCH BOOSTER, BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH, BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH.
