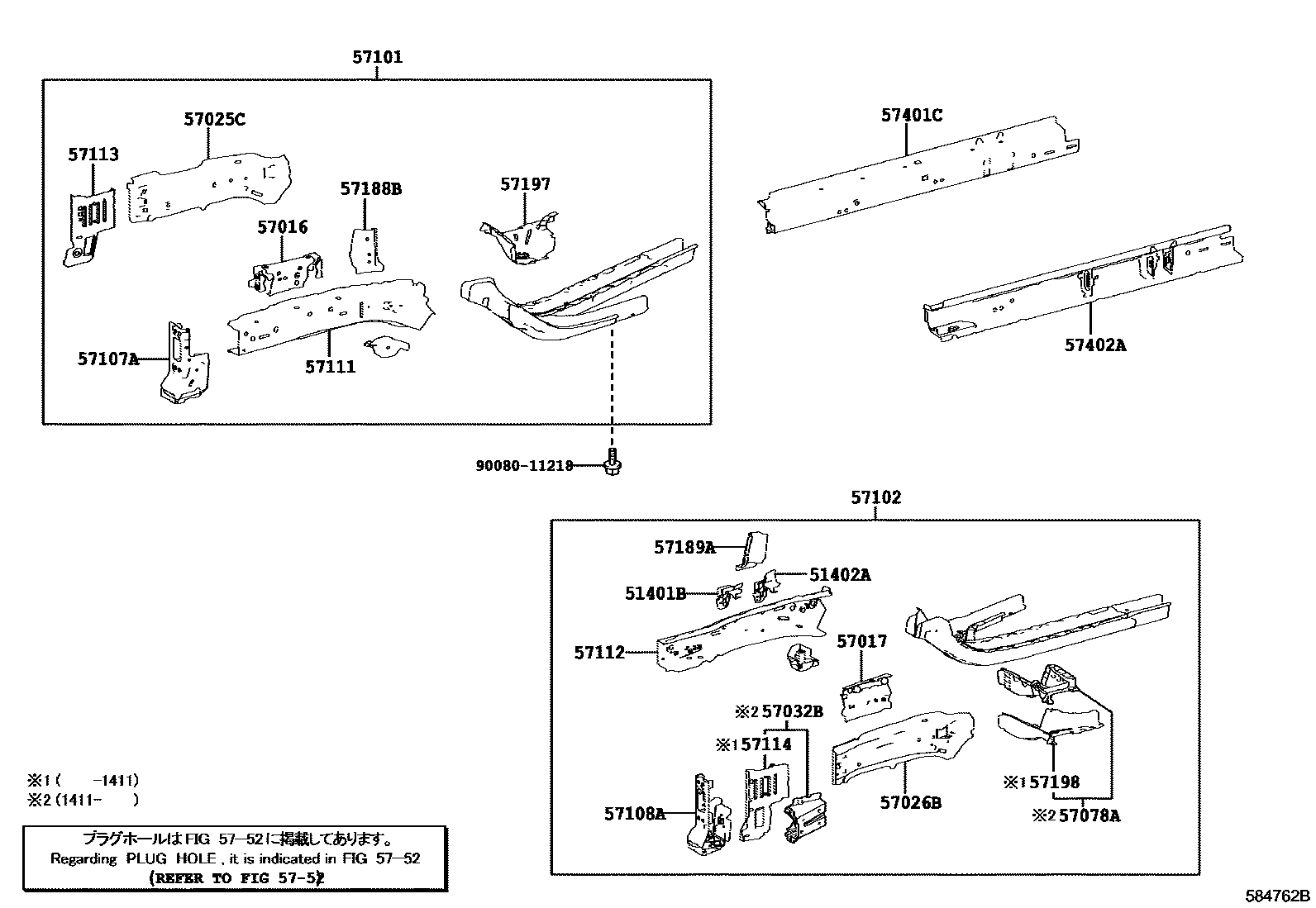

Toyota RAV4 (NAP) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-0R010i201511-201709

51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0R010i201301-201511

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0R010i201301-201511

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0R010i201301-201511

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0R010i201301-201511

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0R010i201301-201511

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-0R010i201411-201511

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-0R010i201411-201511

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0R010i201301-201511

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0R010i201301-201411

main57102-0R030i201411-201511

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-0R011i201301-201511

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-0R011i201301-201511

57111MEMBER, FRONT SIDE, RH

main57111-0R010i201301-201511

57112MEMBER, FRONT SIDE, LH

main57112-0R011i201301-201511

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0R010i201301-201511

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0R010i201301-201411

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-0R010i201301-201511

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-0R010i201301-201511

57197BOX, TORQUE, FRONT RH

main57197-0R010i201301-201511

57198BOX, TORQUE, FRONT LH

main57198-0R010i201301-201411

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0R040i201301-201511

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0R040i201301-201411

main57402-0R080i201411-201511

5752HOLE PLUG

→ Go to FIG 57-52

9008011218

main90080-11218

24 parts on this diagram · 2 diagrams in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota RAV4 (NAP)

This section contains 56 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota RAV4 (NAP). Key components include: BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH, MEMBER SUB-ASSY, FRONT SIDE, OUTER RH.
