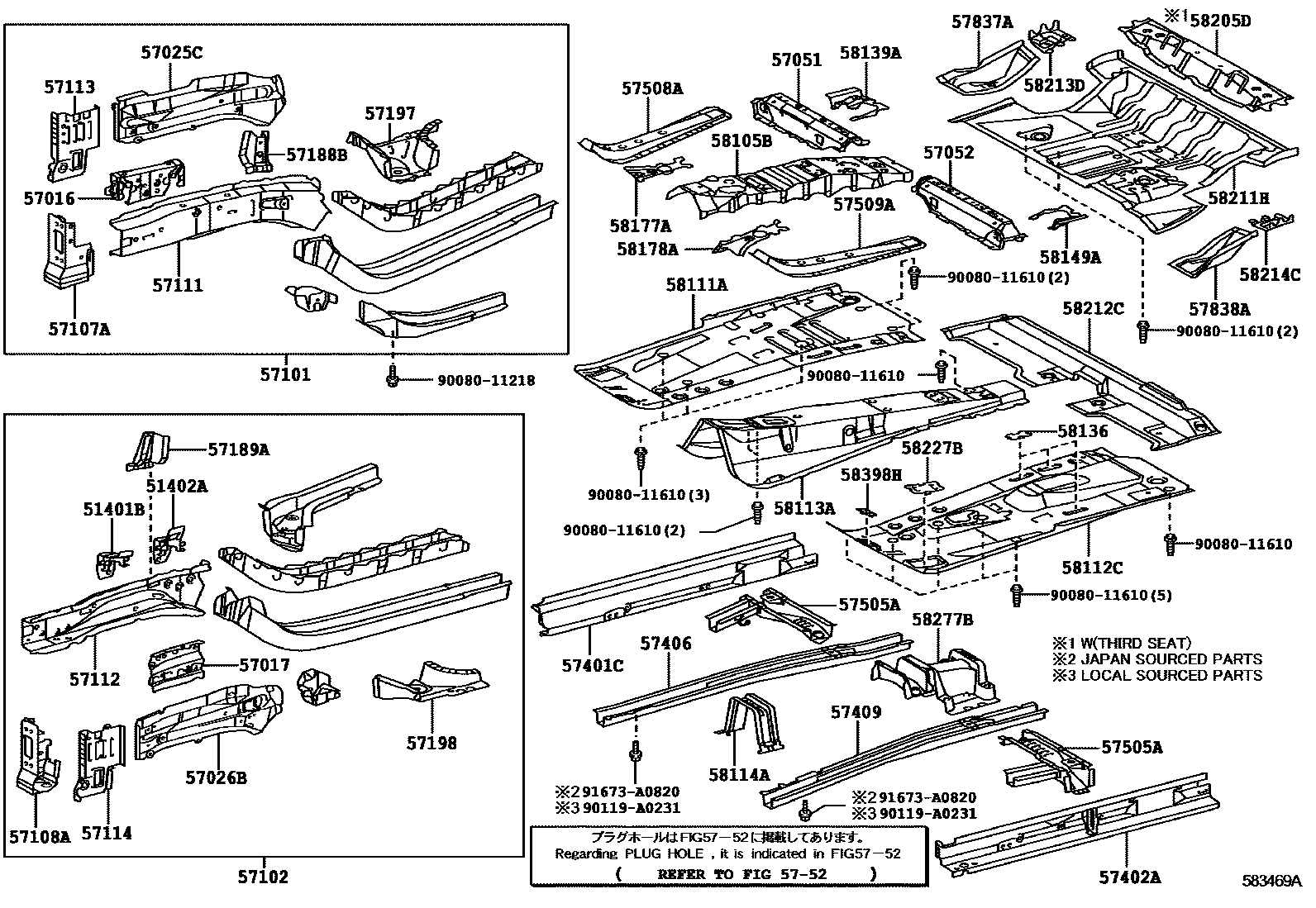

Toyota RAV4 (NAP) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING
51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH
57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
RH
LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
5752HOLE PLUG
57837AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58136COVER, FRONT FLOOR HOLE
58139APLATE, FRONT FLOOR SIDE, REAR RH
58149APLATE, FRONT FLOOR SIDE, REAR LH
58177AEXTENSION, FRONT FLOOR PANEL, RH
58178AEXTENSION, FRONT FLOOR PANEL, LH
58205DREINFORCE SUB-ASSY, REAR SEAT HINGE
THIRD SEAT-WITH
58211HPAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58213DREINFORCEMENT, CENTER FLOOR PANEL
58214CREINFORCEMENT, CENTER FLOOR PANEL, LH
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
58398HCOVER, FLOOR UNDER, NO.1
9008011218
main90080-11218
9008011610
main90080-11610
90119A0231
main90119-A0231
91673A0820
main91673-A0820
52 parts on this diagram · 1 diagram in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota RAV4 (NAP)
This section contains 52 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota RAV4 (NAP). Key components include: BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH, MEMBER SUB-ASSY, FRONT SIDE, OUTER RH.
