Toyota RAV4 (NAP) — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK,202
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
RED MC.,3T3
BRONZE M.M.,4T3
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
DK.BLUE M.M.,8W7
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
NO PAINT REQ.
WIRELESS DOOR LOCK-SMART ENTRY,SUPER WHITE 2,040
KEY PLATE-FOR SMART ENTRY,WHITE PEARL CS.,070; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,WHITE PEARL CS.,070
WIRELESS DOOR LOCK-SMART ENTRY,SILVER ME.,1F7
POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,GRAY ME.,1G3
KEY PLATE-FOR SMART ENTRY,SILVER ME.,1D6; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,SILVER ME.,1D6
KEY PLATE-FOR SMART ENTRY,BLACK,202; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,BLACK,202
KEY PLATE-FOR SMART ENTRY,BLACKISH AGEHA GF.,221; POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,BLACKISH AGEHA GF.,221; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,BLACKISH AGEHA GF.,221
POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,RED M.M.,3R3
KEY PLATE-FOR SMART ENTRY,RED MC.,3T3; POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,RED MC.,3T3; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,RED MC.,3T3
WIRELESS DOOR LOCK-SMART ENTRY,BRONZE M.M.,4T3
WIRELESS DOOR LOCK-SMART ENTRY,ORANGE ME.,4R8
WIRELESS DOOR LOCK-SMART ENTRY,DK.GREEN MC.,6V4
WIRELESS DOOR LOCK-SMART ENTRY,GRAYISH BLUE M.M.,8V5
WIRELESS DOOR LOCK-SMART ENTRY,DK.BLUE M.M.,8W7
POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,BLUE ME.,8X7
KEY PLATE-FOR SMART ENTRY,DEEP AMETHYST M.M.,9AH; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,DEEP AMETHYST M.M.,9AH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK,202
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
RED MC.,3T3
BRONZE M.M.,4T3
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
DK.BLUE M.M.,8W7
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
BLACK MATERIAL
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK,202
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
RED MC.,3T3
BRONZE M.M.,4T3
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
DK.BLUE M.M.,8W7
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
BLACK MATERIAL
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK,202
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
RED MC.,3T3
BRONZE M.M.,4T3
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
DK.BLUE M.M.,8W7
BLUE ME.,8X7
DEEP AMETHYST M.M.,9AH
NO PAINT REQ.
POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,SUPER WHITE 2,040
KEY PLATE-FOR SMART ENTRY,WHITE PEARL CS.,070; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,WHITE PEARL CS.,070
WIRELESS DOOR LOCK-SMART ENTRY,SILVER ME.,1F7
POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,GRAY ME.,1G3
KEY PLATE-FOR SMART ENTRY,SILVER ME.,1D6; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,SILVER ME.,1D6
WIRELESS DOOR LOCK-SMART ENTRY,BLACK,202
KEY PLATE-FOR SMART ENTRY,BLACKISH AGEHA GF.,221; POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,BLACKISH AGEHA GF.,221; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,BLACKISH AGEHA GF.,221
WIRELESS DOOR LOCK-SMART ENTRY,RED M.M.,3R3
KEY PLATE-FOR SMART ENTRY,RED MC.,3T3; POWER DOOR LOCK-W(TWO OPERATION) & W(HANDS FREE *PBD)&KEY PLATE-FOR SMART ENTRY,RED MC.,3T3; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,RED MC.,3T3
WIRELESS DOOR LOCK-SMART ENTRY,BRONZE M.M.,4T3
KEY PLATE-FOR SMART ENTRY,ORANGE ME.,4R8; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,ORANGE ME.,4R8
WIRELESS DOOR LOCK-SMART ENTRY,DK.GREEN MC.,6V4
WIRELESS DOOR LOCK-SMART ENTRY,GRAYISH BLUE M.M.,8V5
WIRELESS DOOR LOCK-SMART ENTRY,DK.BLUE M.M.,8W7
KEY PLATE-FOR SMART ENTRY,BLUE ME.,8X7; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,BLUE ME.,8X7
KEY PLATE-FOR SMART ENTRY,DEEP AMETHYST M.M.,9AH; POWER DOOR LOCK-W(TWO OPERATION) & W(POWER BACK DOOR)&KEY PLATE-FOR SMART ENTRY,DEEP AMETHYST M.M.,9AH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
90148A0005
main90148-A0005
90148A0017
main90148-A0017
90167A0001
main90167-A0001
9018905003
main90189-05003

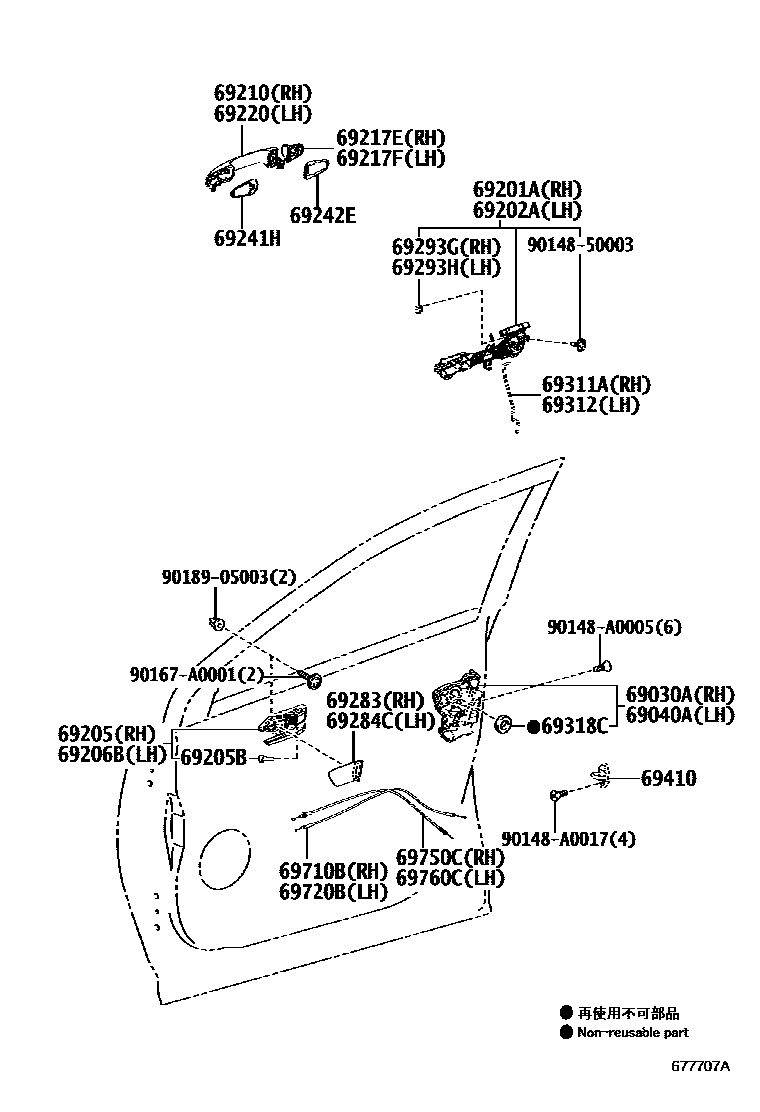

30 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota RAV4 (NAP)
This section contains 30 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RAV4 (NAP). Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
