Toyota RAV4 (NAP) — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BRONZE M.M.,4T3
BEIGE ME.,4T8
DK.GREEN MC.,6T3
GRAYISH BLUE ME.,8R3
NO PAINT REQ.
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
DK.GREEN MC.,6T3
GRAYISH BLUE ME.,8R3
US BASE PLUS PACKAGE,BRONZE M.M.,4T3
US BASE PLUS PACKAGE,BEIGE ME.,4T8
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BRONZE M.M.,4T3
BEIGE ME.,4T8
DK.GREEN MC.,6T3
GRAYISH BLUE ME.,8R3
BLACK
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
DK.GREEN MC.,6T3
GRAYISH BLUE ME.,8R3
US BASE PLUS PACKAGE,BRONZE M.M.,4T3
US BASE PLUS PACKAGE,BEIGE ME.,4T8
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BRONZE M.M.,4T3
BEIGE ME.,4T8
DK.GREEN MC.,6T3
GRAYISH BLUE ME.,8R3
BLACK
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
DK.GREEN MC.,6T3
GRAYISH BLUE ME.,8R3
US BASE PLUS PACKAGE,BRONZE M.M.,4T3
US BASE PLUS PACKAGE,BEIGE ME.,4T8
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
BRONZE M.M.,4T3
BEIGE ME.,4T8
DK.GREEN MC.,6T3
GRAYISH BLUE ME.,8R3
NO PAINT REQ.
SUPER WHITE 2,040
GRAY ME.,1G3
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
DK.GREEN MC.,6T3
GRAYISH BLUE ME.,8R3
US BASE PLUS PACKAGE,BRONZE M.M.,4T3
US BASE PLUS PACKAGE,BEIGE ME.,4T8
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
RH
LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420WIRELESS DOOR LOCK
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9014850003
main90148-50003
90148A0005
main90148-A0005
90148A0017
main90148-A0017
9015940202
main90159-40202
90167A0001
main90167-A0001
9018905003
main90189-05003
31 parts on this diagram · 1 diagram in section

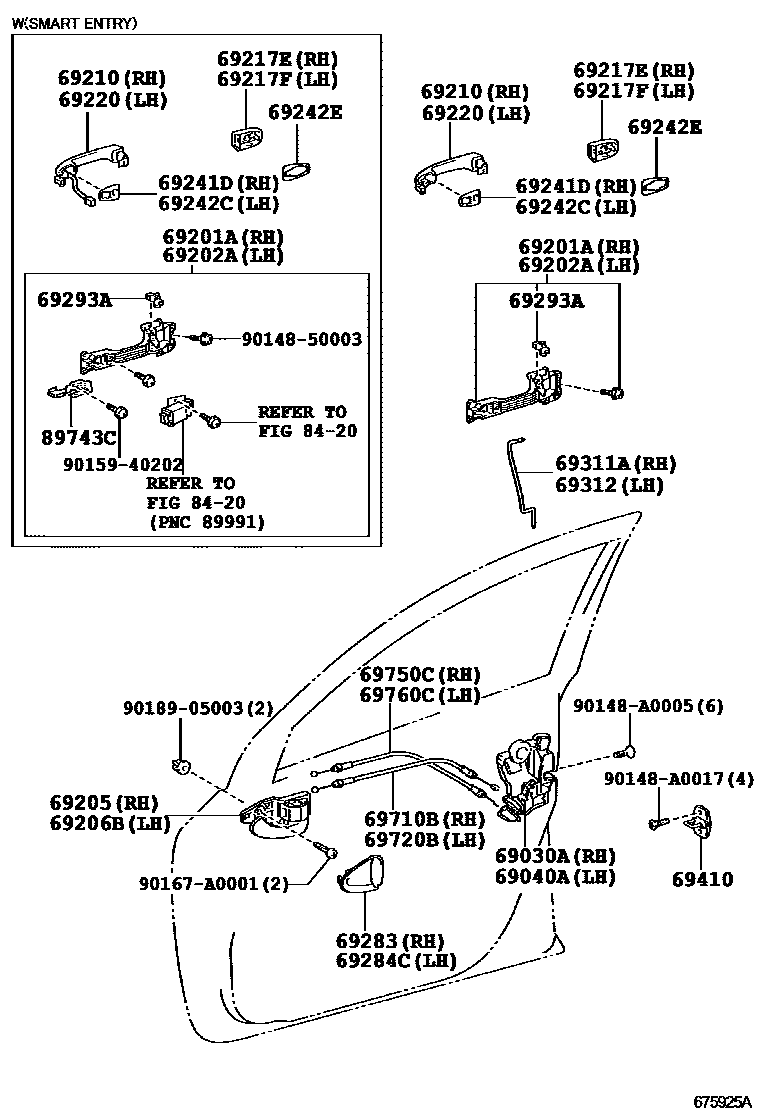

FRONT DOOR LOCK & HANDLE for Toyota RAV4 (NAP)
This section contains 31 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RAV4 (NAP). Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
