EPC Data

Toyota RAV4 (NAP) — ECO-RUN SYSTEM

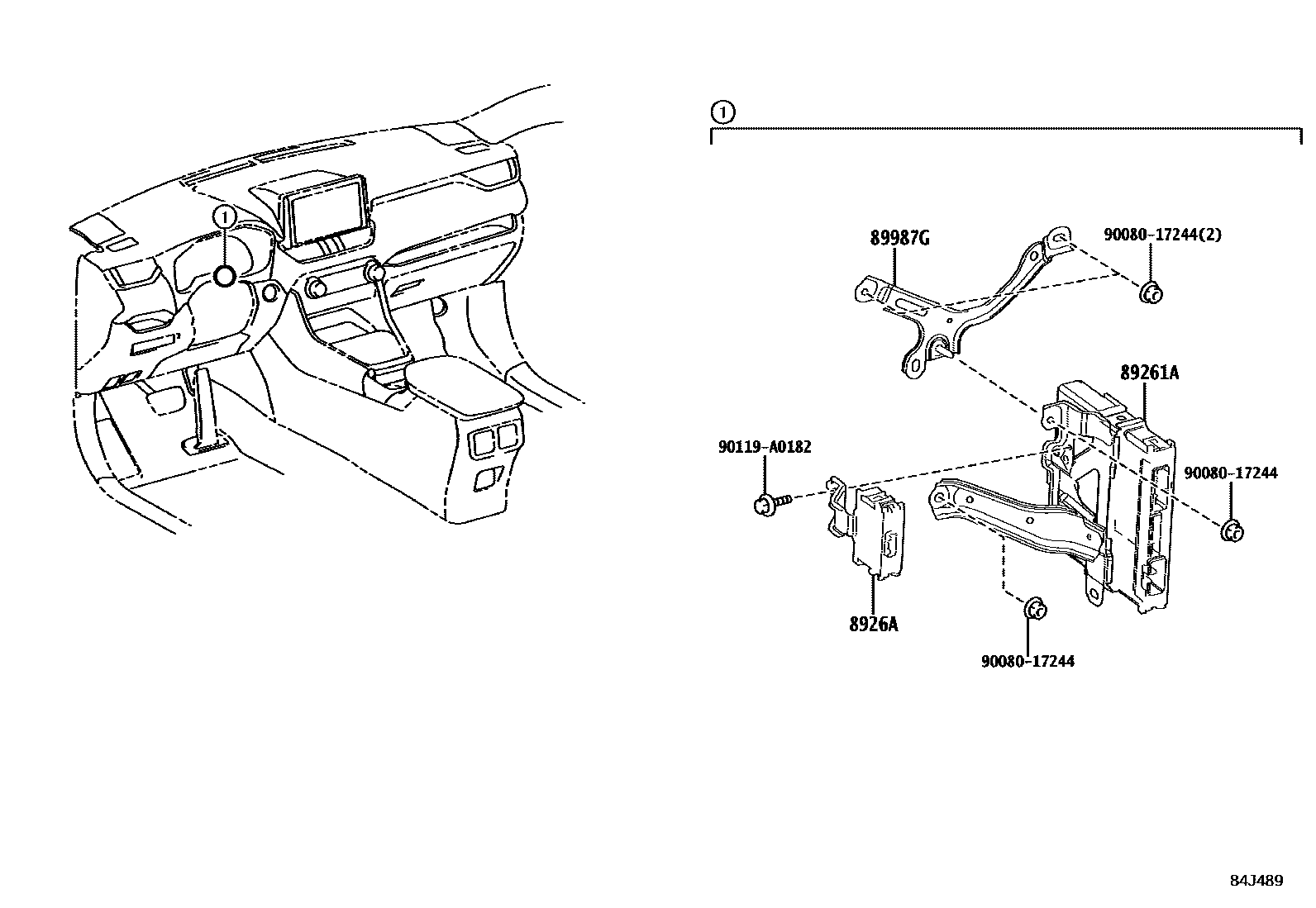

Parts diagram
89261ACOMPUTER, ENGINE STOP AND START
main89260-0R020i201812-202009
main89260-0R020i202009-202112
MEXICO SPEC
main89260-0R040i202112
main89260-0R040i202211-202310
MEXICO SPEC
main89260-0R080i202310
MEXICO SPEC
8926AFILTER, ENGINE STOP & START SOLENOID
main8926A-0R010i201812-202009
main8926A-0R010i202211
MEXICO SPEC
89987GBRACKET, COMPUTER, NO.1
main89987-0R010i201812-202009
main89987-0R010i202211
MEXICO SPEC
9008017244
main90080-17244
90119A0182
main90119-A0182

5 parts on this diagram · 1 diagram in section

ECO-RUN SYSTEM for Toyota RAV4 (NAP)

This section contains 5 genuine Toyota parts for the ECO-RUN SYSTEM system of the Toyota RAV4 (NAP). Key components include: COMPUTER, ENGINE STOP AND START, FILTER, ENGINE STOP & START SOLENOID, BRACKET, COMPUTER, NO.1.
