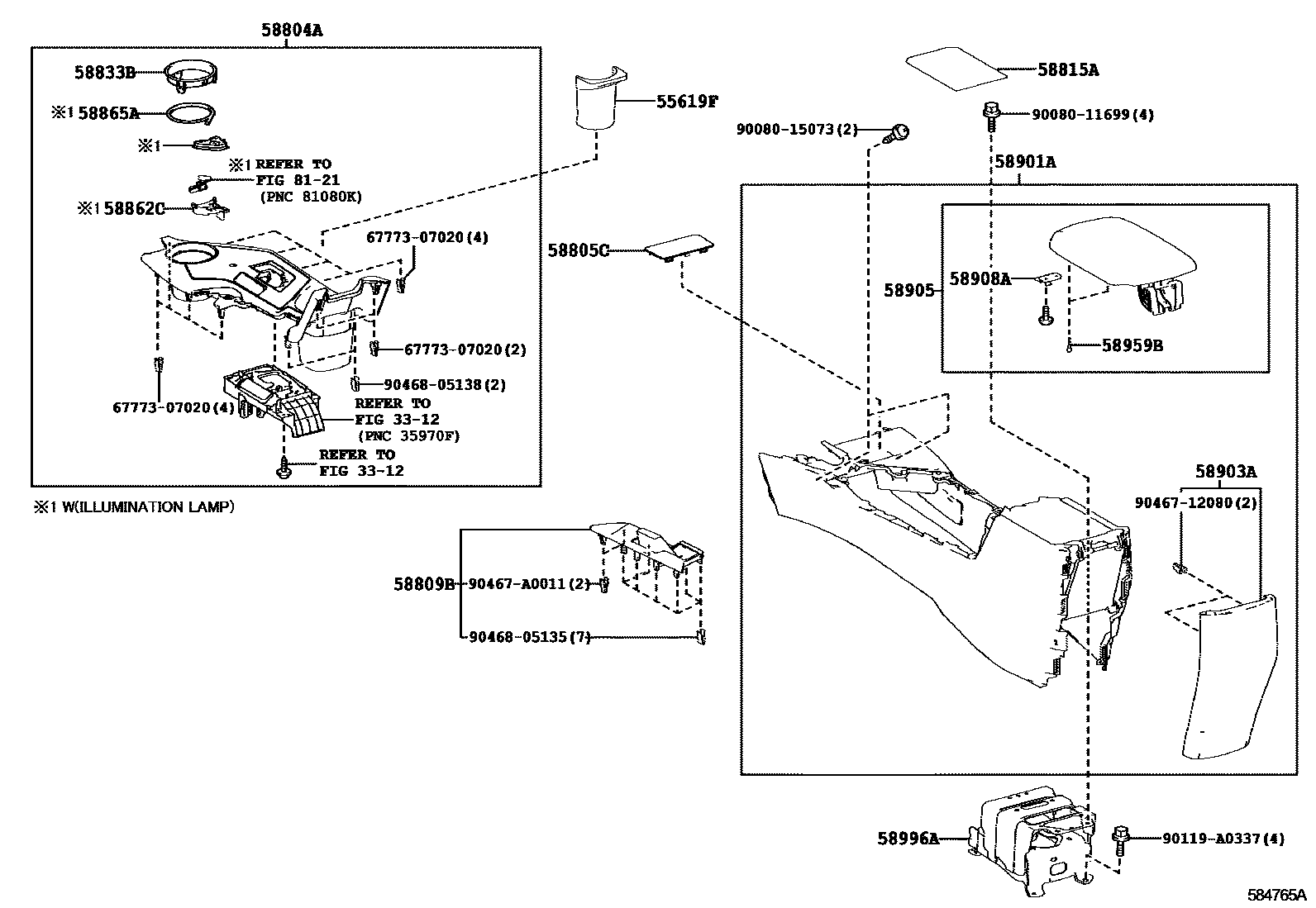

Toyota RAV4 (NAP) — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

3312

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-0R020iASA42..USA201301-201511

MEXICO SPEC

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0R020-C0iASA4#..LE;ASA4#..XLE..CND201301-201511

MEXICO SPEC&SHIFT LEVER & KNOB-SOFT VINYL CHLORIDE,BLACK,TRIM1#,2#,4#

main58804-0R030-C0iASA4#..XLE..USA201301-201511

BLACK,TRIM1#,2#,3#,4#

main58804-0R100-B2supersedes 58804-0R030-C0iASA4#..XLE..CND201511-201709

SILVER/BLACK,TRIM1#,2#,4#

main58804-0R110-B1iASA4#..XLE..USA201511-201811

SILVER/SILVER,TRIM1#,2#,3#,4#

main58804-0R120-B1iASA4#..LIMD201511-201811

SILVER/SILVER,TRIM1#,2#,3#,4#

main58804-0R130-B1iASA4#..SE201511-201811

SMOKE SILVER METALLIC,TRIM2#,3#

main58804-0R190-B0supersedes 58804-0R120-B1iASA4#..XLE..USA201709-201811

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK),SILVER,TRIM1#,2#,4#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0R030-C0iASA4#..LIMD201301-201511

BLACK,TRIM1#,2#,3#,4#

main58805-0R040-C0iASA42..(LIMD,SE)..CND201511-201709

BLACK,TRIM1#,2#,3#,4#

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58809-0R010-C1iASA4#..LIMD201301-201502

BLACK,TRIM1#,2#,3#,4#

main58809-0R011-C1iASA4#..LE201511

BLACK,TRIM2#,3#

58815ACARPET, CONSOLE BOX

main58815-0R030iASA42..(LIMD,SE)..CND201511-201709

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-0R030iASA4#..LE;ASA4#..XLE..CND201301-201511

MEXICO SPEC&SHIFT LEVER & KNOB-SOFT VINYL CHLORIDE

main58833-0R060iASA4#..LIMD;ASA4#..XLE..USA201301-201511

main58831-YY010iASA4#..XLE..USA201709

ADVENTURE PKG(REAR RAV4 EMBLEM = BLACK)

58862CSUPPORT, CONSOLE BOX, NO.2

main58862-0R010iASA4#..LIMD;ASA4#..XLE..USA201301-201511

58865ALENS, FRONT CONSOLE BOX, NO.1

main58865-0R010iASA4#..LIMD;ASA4#..XLE..USA201301-201511

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-0R030-C0iASA4#..LE,XLE201301-201511

BLACK,TRIM1#,2#,4#

main58901-0R040-C0iASA4#..LIMD201301-201511

BLACK,TRIM1#,2#,3#,4#

main58901-0R090-C0iASA4#..LE201511

BLACK,TRIM2#

main58901-0R100-C0iASA42..(LIMD,SE)..CND201511-201709

BLACK,TRIM1#,2#,3#,4#

main58901-0R080-C0iASA44..XLE..CND201411-201511

ANNIVERSARY PACKAGE(*STRG STITCH-RED),BLACK,TRIM2#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0R010-C0iASA4#..LE,XLE201301-201511

BLACK,TRIM1#,2#,4#

main58903-0R020-C0iASA4#..LIMD201301-201511

BLACK,TRIM1#,2#,3#,4#

main58903-0R040-C0iASA4#..LE201511

BLACK,TRIM2#

main58903-0R050-C0iASA44..LIMD,SE;ASA42..(LIMD,SE)..USA201511

BLACK,TRIM1#,2#,3#,4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0R030-C0iASA4#..LE,XLE201301-201511

BLACK,TRIM1#,2#,4#

main58905-0R040-C0iASA4#..LIMD201301-201511

BLACK,TRIM1#,2#,3#,4#

main58905-0R090-C0iASA4#..LE201511

BLACK,TRIM2#

main58905-0R100-C0iASA44..LIMD,SE;ASA42..(LIMD,SE)..USA201511

BLACK,TRIM1#,2#,3#,4#

main58905-0R080-C0iASA44..XLE..CND201411-201511

ANNIVERSARY PACKAGE(*STRG STITCH-RED),BLACK,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-0R030iASA4#..LIMD201301-201511

main58908-0R040iASA42..(LIMD,SE)..CND201511-201709

main58908-12080iASA4#..LE,XLE201301-201511

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-0R010×4iASA4#..LIMD201301-201511

main58959-0R040×2iASA4#..LE,XLE201301-201511

main58959-35010×6iASA42..(LIMD,SE)..CND201511-201709

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0R030iASA4#201301-201511

main58996-0R050iASA42..(LIMD,SE)..CND201511-201709

8121

6777307020

main67773-07020

9008011699

main90080-11699

9008015073

main90080-15073

90119A0337

main90119-A0337

9046712080

main90467-12080

90467A0011

main90467-A0011

9046805135

main90468-05135

9046805138

main90468-05138

24 parts on this diagram · 4 diagrams in section
