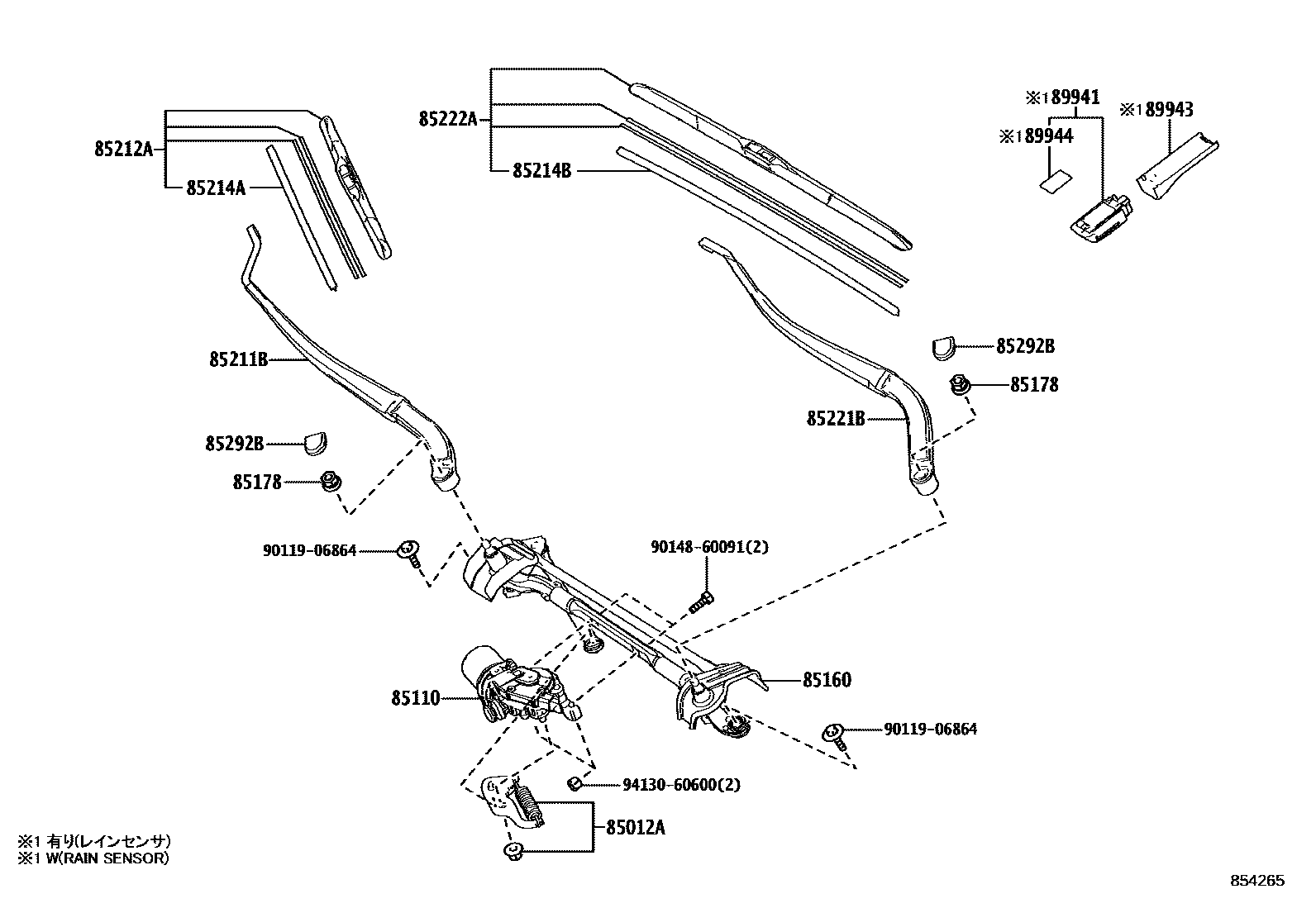

Toyota RAV4 (JPP) — WINDSHIELD WIPER
85012ACRANK SUB-ASSY, FRONT WIPER
main85012-50010iMXAA52..RHD..CVT;AXAH52..RHD..(M,X);MXAA52..RHD..6F..(M,X);AXAH52..RHD..G..(ARL,EUR);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD201811-202007
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-42280iAXAH5#..X..ARL;MXAA52..6F..SA;MXAA5#..RHD..CVT;AXAH54..RHD..G..GEN;AXAA54..(M,V,X)..ARL;AXAL5#..RHD..(G,M,P,V)..EUR;AXAA54..RHD..(G,M,X)..(GEN,SA);AXAH5#..RHD..(G,M,P,V)..(ARL,EUR,SA)202008-202210
MEXICO SPEC
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
main90182-10006×2iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH5#..RHD..M..GEN;AXAH52..RHD..X..EUR;AXAA54..RHD..V..GEN;AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111
85211BARM, FRONT WIPER, RH
main85211-42220iAXAA54..G..ARL;AXAA54..RHD..V..GEN;AXAH5#..RHD..M..GEN;AXAH52..RHD..X..EUR;AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111
85212ABLADE, FR WIPER, RH
main85212-42190iAXAH54..X..GCC;AXAH54..LHD..(G,M,P,V);AXAA5#,AXAH52,AXAL5#..JPP..LHD;MXAA5#..JPP..LHD..(GCC,GEN,RUS)202310
main85212-42210iAXAH52..RHD..(G,P)..EUR;AXAH5#..RHD..(ARL,GEN,SA);AXAA54,AXAL5#,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202310
85214ARUBBER, WIPER, RH
main85214-52110iAXAH52..RHD..(G,P)..EUR;AXAH5#..RHD..(ARL,GEN,SA);AXAA54,AXAL5#,MXAA54..RHD;MXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA)202310
85214BRUBBER, WIPER, LH
main85214-28090iMXAA52..RHD..CVT;AXAH52..RHD..(M,X);MXAA52..RHD..6F..(M,X);AXAH52..RHD..G..(ARL,EUR);AXAA5#,AXAH54,AXAL5#,MXAA54..RHD201811-202007
85221BARM, FRONT WIPER, LH
main85221-42210iAXAH52..X..GEN;AXAH54..P..GEN; MXAA54..LHD..V;AXAH52..(G,M,P)..GEN;AXAH54,MXAA52..LHD..CVT..(G,X)..GEN202310
TAIWAN SPEC
main85221-42221iAXAH54..X..GCC;AXAH54..LHD..P..EUR;AXAH54..LHD..(G,M,V);AXAH52..LHD..(G,M,P);AXAH52..X..(EUR,GCC);AXAA5#,AXAL5#..JPP..LHD;MXAA5#..JPP..LHD..(GCC,GEN,RUS)202310
main85221-42230iAXAH5#..X..ARL;MXAA52..6F..SA;MXAA5#..RHD..CVT;AXAH54..RHD..G..GEN;AXAA54..(M,V,X)..ARL;AXAL5#..RHD..(G,M,P,V)..EUR;AXAA54..RHD..(G,M,X)..(GEN,SA);AXAH5#..RHD..(G,M,P,V)..(ARL,EUR,SA)202008-202210
85222ABLADE, FR WIPER, LH
main85222-42190iMXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,AXAL5#,MXAA54..RHD202210-202310
85292BCAP, FRONT WIPER ARM HEAD
89941SENSOR, RAIN
main89941-30040iAXAA54..G..ARL;MXAA52..6F..ARL;MXAA54..RHD..6F;AXAA54..RHD..V..GEN;AXAH5#..RHD..M..GEN;AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111
89943COVER, RAIN SENSOR
main89943-42040iAXAH52,MXAA52..LHD..CVT..M..GEN; AXAH52..M..GEN; MXAA52..X..ARL;AXAL5#..G,M,P,V;AXAA54,AXAH5#..RHD;AXAH52..LHD..M..EUR;MXAA54..JPP..M..RUS;MXAA54..JPP..(G,V)..(GEN,RUS,SA);MXAA5#..RHD..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..(EUR,GEN);AXAA54,AXAH52,MXAA52..LHD..(G,P,V)..(EUR,GEN)202210-202310
MOROCCO SPEC; PANAMA SPEC
89944TAPE, RAIN SENSOR
9011906864
main90119-06864
9014860091
main90148-60091
9413060600
main94130-60600
17 parts on this diagram · 4 diagrams in section
WINDSHIELD WIPER for Toyota RAV4 (JPP)
This section contains 17 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RAV4 (JPP). Key components include: CRANK SUB-ASSY, FRONT WIPER, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH.
