Toyota RAV4 (JPP) — WINDSHIELD WASHER

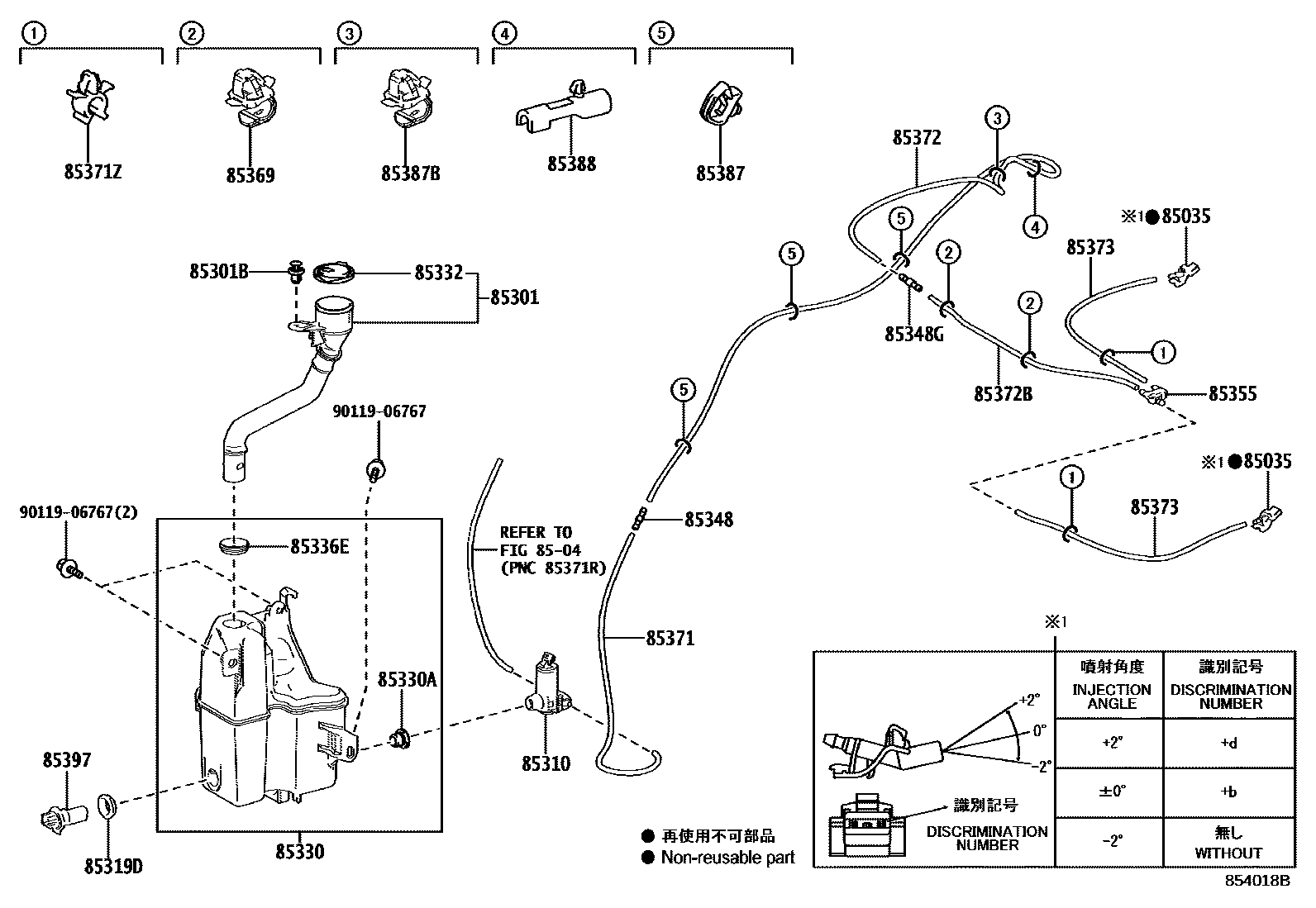

85035NOZZLE SUB-ASSY, WASHER

main85381-30220i201811-202310

ANGLE 0

main85381-30230i201811-202310

ANGLE -2

main85381-30240i201811-202310

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-42030i201811-202004

main85301-42031i202005-202310

85301BCLIP, WASHER

main90467-07215i201811-202310

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100i201811-202310

85319DPACKING, FRONT WASHER

main85319-33230i201811-202310

85330JAR ASSY, WINDSHIELD WASHER

main85315-42450i201811-202112

main85315-42590i202112-202310

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201811-202310

85332CAP, WINDSHIELD WASHER JAR

main85316-42030i201811-202005

main85316-42031i202005-202310

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201811-202310

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201811-202310

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201811-202310

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201811-202310

85369CLAMP

main85371-12040i201811-202310

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201811-202310

L=1450(*H,L=590)

85371ZCLAMP, WASHER HOSE

main90469-07011i201811-202310

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803i201811-202310

L=1690

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201811-202310

L=1450(*H,L=500)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i201811-202310

L=1450(*H,L=470)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-35520i201811-202310

85387BCLAMP, WASHER, NO.3

main85371-12040i201811-202310

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85387-42280i201811-202310

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i201811-202310

9011906767

main90119-06767

24 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota RAV4 (JPP)

This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota RAV4 (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
