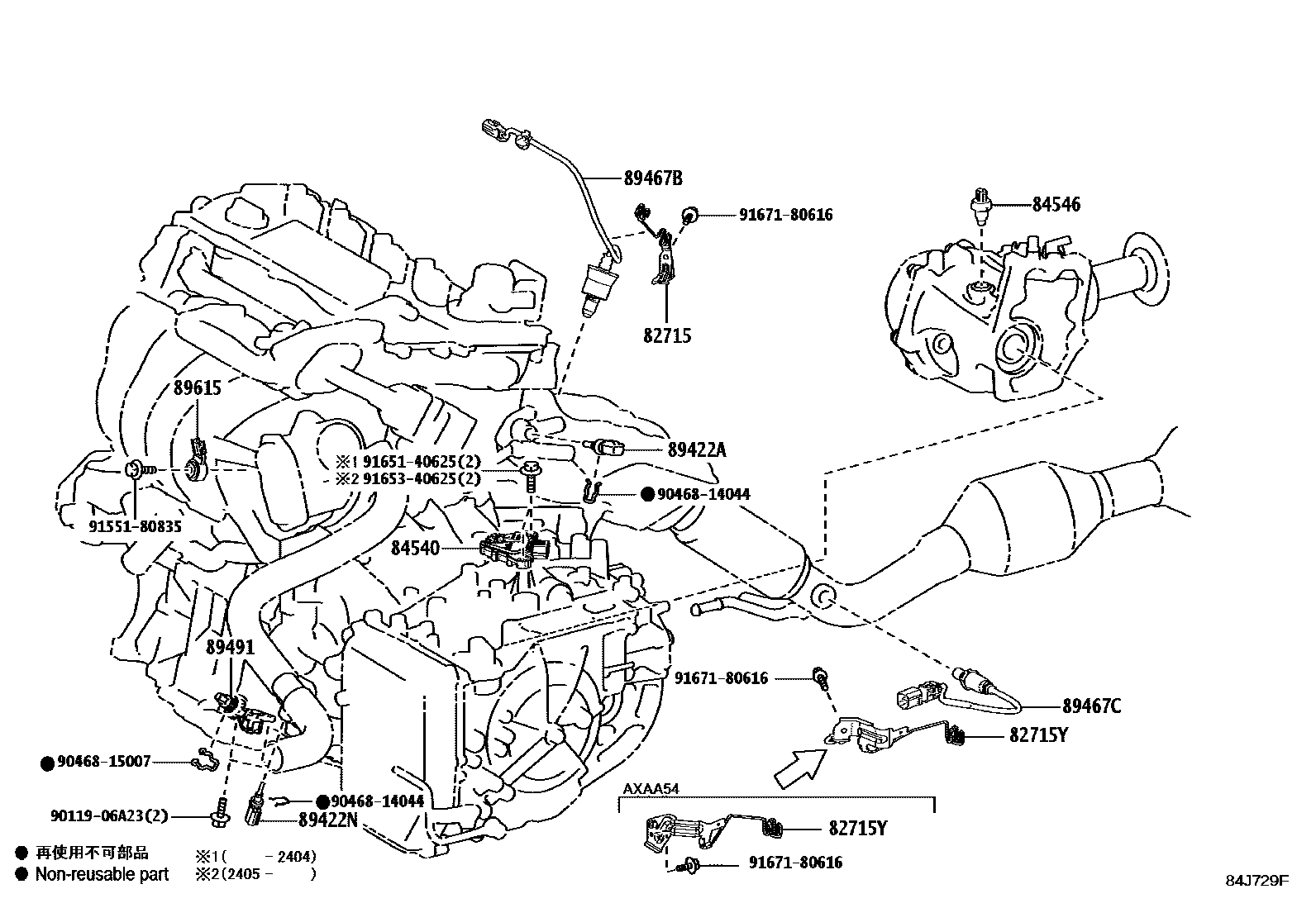

Toyota RAV4 (JPP) — SWITCH & RELAY & COMPUTER
82715BRACKET,WIRING HARNESS CLAMP
82715YBRACKET, WIRING HARNESS CLAMP, NO.3
84540SWITCH ASSY, NEUTRAL START
84546SWITCH, 4 WHEEL DRIVE POSITION, NO.1
89422ASENSOR, WATER TEMPERATURE
89422NSENSOR, WATER TEMPERATURE, NO.2
89467BSENSOR, AIR FUEL RATIO
89467CSENSOR, AIR FUEL RATIO, NO.2
89491SENSOR, ENGINE OIL LEVEL
89615SENSOR, KNOCK CONTROL
9011906A23
main90119-06A23
9046814044
main90468-14044
9046815007
main90468-15007
9155180835
main91551-80835
9165140625
main91651-40625
9165340625
main91653-40625
9167180616
main91671-80616
17 parts on this diagram · 16 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota RAV4 (JPP)
This section contains 191 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota RAV4 (JPP). Key components include: RELAY ASSY, STARTER, SENSOR ASSY, BATTERY STATE, HOLDER, BATTERY CURRENT SENSOR, STEERING COLUMN & SHAFT, CUSHION, RELAY BLOCK.
