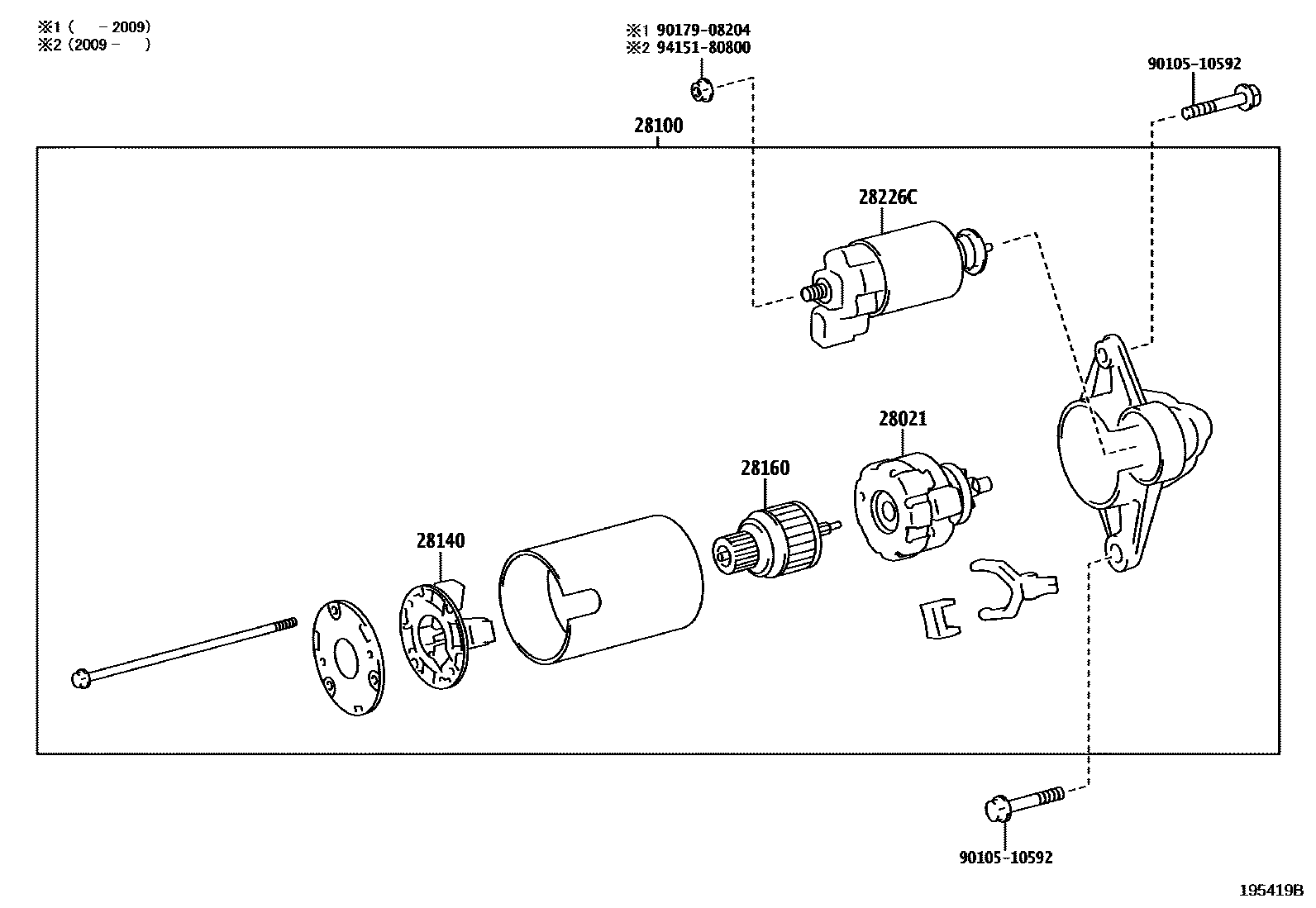

Toyota RAV4 (JPP) — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-25050i201811-201910

main28021-25070i201811-202310

main28021-K0040i202008-202310

main28021-K0040i201910-202007

LOW FUEL CONSUMPTION PACKAGE-WITHOUT

28100STARTER ASSY

main28100-24140i202112-202310

12V 1.7KW

main28100-25050i201811-201909

12V 1.3KW

main28100-25070i201811-202007

12V 1.7KW

main28100-25100i202008-202112

12V 1.7KW

main28100-K0050i201910-202007

12V 1.2KW,LOW FUEL CONSUMPTION PACKAGE-WITHOUT

main28100-K0050i201910-202310

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070i202008-202310

main28140-21070i201910-202007

LOW FUEL CONSUMPTION PACKAGE-WITHOUT

main28140-21100i201811-202310

main28140-25050i201811-201910

28160ARMATURE ASSY, STARTER

main28160-21080i201811-202310

main28160-36110i201811-202310

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-25050i201811-201910

main28226-K0040i201910-202007

LOW FUEL CONSUMPTION PACKAGE-WITHOUT

main28226-K0040i202008-202310

9010510592

main90105-10592

9017908204

main90179-08204

9415180800

main94151-80800

8 parts on this diagram · 2 diagrams in section

STARTER for Toyota RAV4 (JPP)

This section contains 11 genuine Toyota parts for the STARTER system of the Toyota RAV4 (JPP). Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, YOKE ASSY, STARTER, HOLDER ASSY, STARTER BRUSH, SWITCH ASSY, MAGNET STARTER.
