Toyota RAV4 (JPP) — STARTER

0001 112V 1.7KW 0002 112V 1.7KW 0003 112V 1.7KW

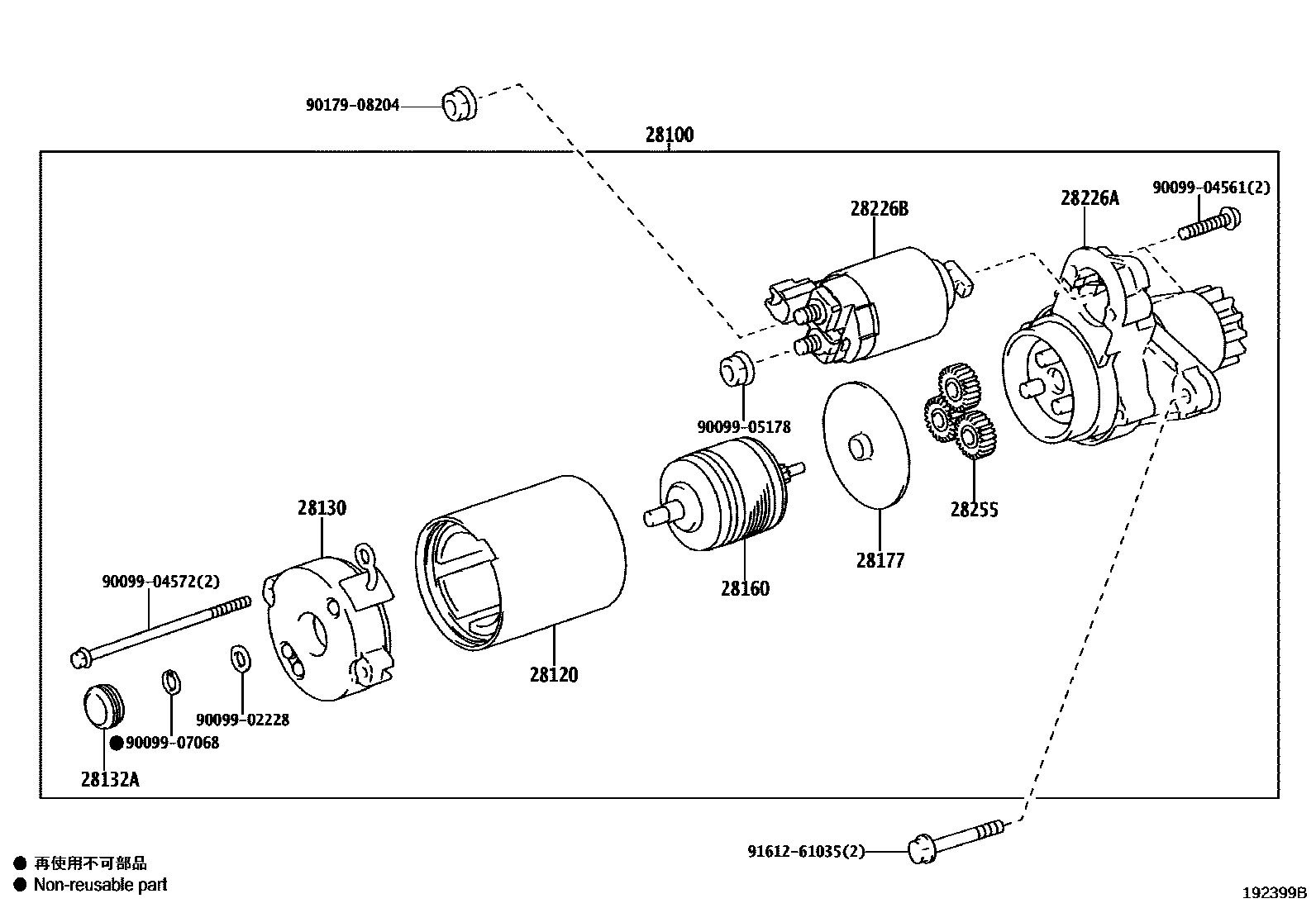

28100STARTER ASSY

main28100-20020i2AZFE,2GRFE..ACA3#,GSA3#..JPP200511-200807

12V 1.7KW

main28100-20021i2ARFE,2GRFE..ASA3#,GSA3#..JPP201107-201212

12V 1.7KW

sub28100-20022

main28100-28070i2ARFE,2GRFE..ASA3#,GSA3#..JPP200808-200904

12V 1.7KW

main28100-28071i2ARFE,2GRFE..ASA3#,GSA3#..JPP200905-200910

12V 1.7KW

main28100-28072i2ARFE,2GRFE..ASA3#,GSA3#..JPP200911-201106

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-28040i2AZFE,2GRFE..ACA3#,GSA3#..JPP200511-200808

main28120-28060i2ARFE,2GRFE..ASA3#,GSA3#..JPP200808-201212

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2AZFE,2GRFE..ACA3#,GSA3#..JPP200511-200808

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2AZFE,2GRFE..ACA3#,GSA3#..JPP200511-200808

28160ARMATURE ASSY, STARTER

main28160-28040i2ARFE,2GRFE..ASA3#,GSA3#..JPP200808-201212

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2AZFE,2GRFE..ACA3#,GSA3#..JPP200511-200808

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i2ARFE,2GRFE..ASA3#,GSA3#..JPP201107-201212

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i2AZFE,2GRFE..ACA3#,GSA3#..JPP200511-200808

main28226-28060i2ARFE,2GRFE..ASA3#,GSA3#..JPP200808-201107

28255GEAR, PLANET

main28255-20020×3i2AZFE,2GRFE..ACA3#,GSA3#..JPP200511-200808

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9161261035

main91612-61035
