Toyota RAV4 (JPP) — SPEAKER

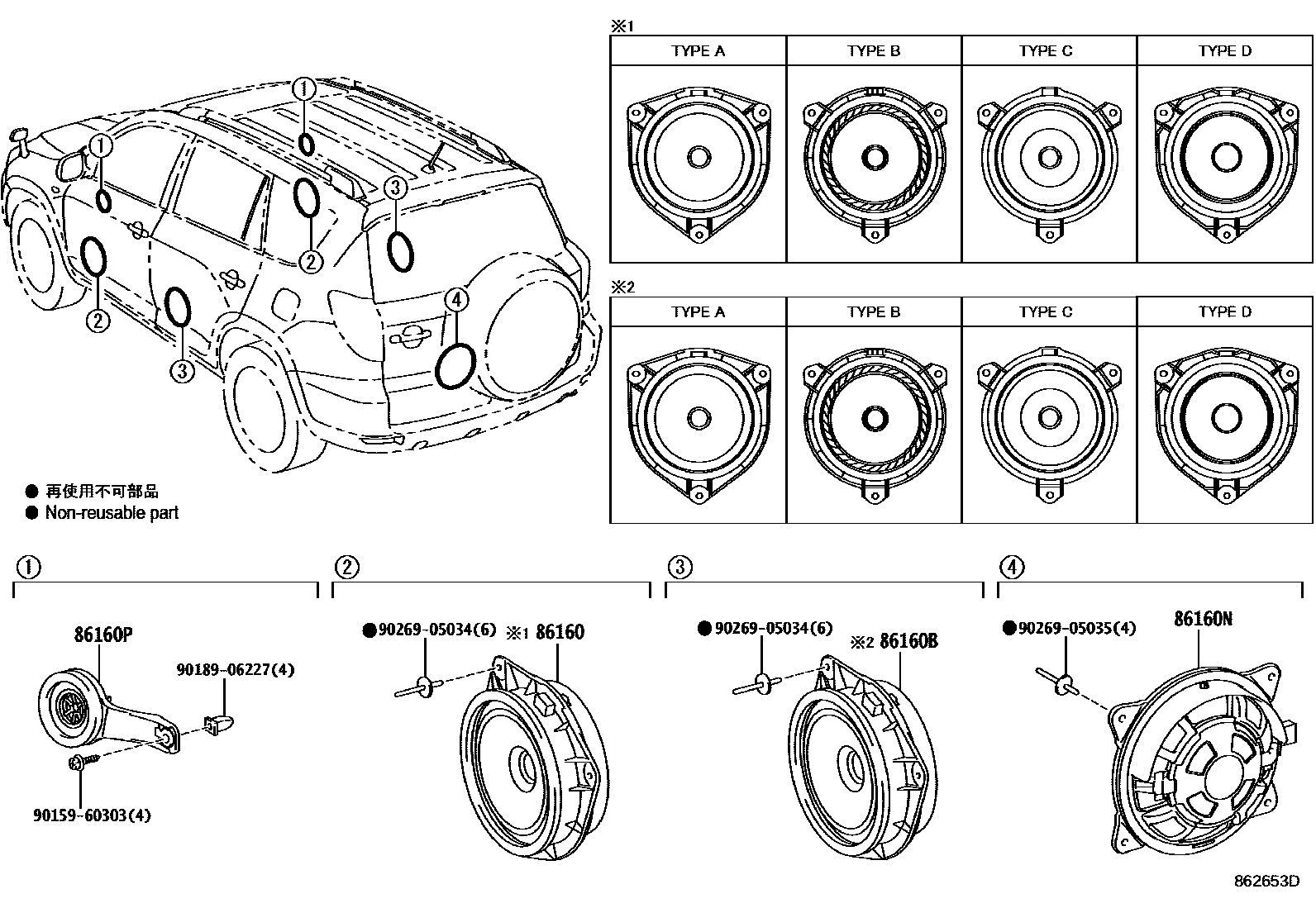

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-22A10i200511-201107
TYPE A:REFER ILLUST.
main86160-2B580i200511-201011
TYPE B:REFER ILLUST.
main86160-52330i201012-201212
TYPE C:REFER ILLUST.
86160BSPEAKER ASSY, REAR
main86160-22A10i200511-201107
TYPE A:REFER ILLUST.
main86160-2B580i200511-201011
TYPE B:REFER ILLUST.
main86160-52330i201012-201212
TYPE C:REFER ILLUST.
86160NSPEAKER ASSY, STEREO COMPONENT, REAR
86160PSPEAKER ASSY, FRONT NO.2
main86160-42120i200511-201212
RH
main86160-42130i200511-201212
LH
9015960303
main90159-60303
9018906227
main90189-06227
9026905034
main90269-05034
9026905035
main90269-05035

8 parts on this diagram · 1 diagram in section

SPEAKER for Toyota RAV4 (JPP)

This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota RAV4 (JPP). Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, STEREO COMPONENT, REAR, SPEAKER ASSY, FRONT NO.2.
