Toyota RAV4 (JPP) — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(MOON ROOF) 0003 1ROOF PANEL(PANORAMA ROOF) 0004 1SLIDING ROOF(MOON ROOF) 0005 1SLIDING ROOF(PANORAMA ROOF) 0006 1ROOF RAIL 0007 1ROOF RAIL 0009 1ROOF RAIL

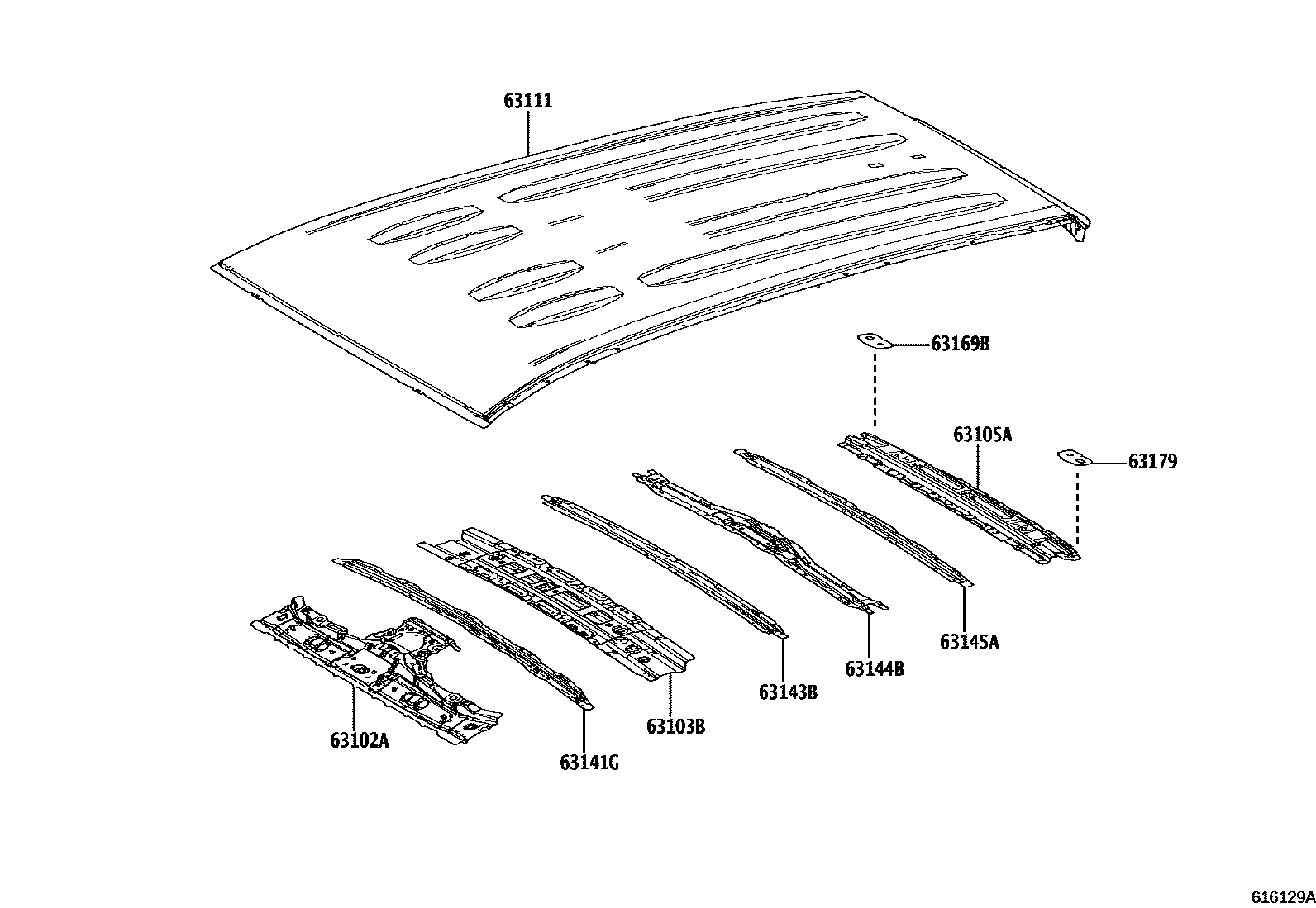

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42907iAXAA5#,AXAH54..X201811-202005

main63102-42908iAXAA5#,AXAH5#..G,M,V201811-202005

main63102-42910supersedes 63102-42911iAXAA5#,AXAH54,AXAL54..X202006-202007

MOON ROOF-WITHOUT

main63102-42911iAXAH52;AXAA5#,AXAH54,AXAL54..G,P,V202008-202210

main63102-42912iAXAA5#,AXAH54,AXAL54..X202005-202006

MOON ROOF-WITHOUT

main63102-42913iAXAA5#,AXAH5#,AXAL54..G,M,V202005-202006

main63102-42130iAXAA5#..G,V;AXAH54..G,M201811-202005

MOON ROOF-WITH(PANORAMA ROOF)

sub63102-42914

main63102-42160iAXAA5#..G,V;AXAH54,AXAL54..G,M202005-202007

MOON ROOF-WITH(PANORAMA ROOF)

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-42040iAXAA5#,AXAH54,AXAL54..X201811-202007

main00000-00000iAXAA5#..G,V;AXAH54,AXAL54..G,M201811-202007

MOON ROOF-WITH(PANORAMA ROOF),NOT APPLICABLE

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42050iAXAA5#,AXAH5#,AXAL54202210-202310

63111PANEL, ROOF

main63111-42250iAXAA5#..X202210-202310

main63111-42260iAXAA5#,AXAH54,AXAL54..X202008-202112

REFER TO PNC 86466D

main63111-42261iAXAA5#..M;AXAH54,AXAL54..M,S,X202210-202310

main63111-42280iAXAA5#,AXAH5#,AXAL54..G,M,V202008-202112

REFER TO PNC 86466D

main63111-42281iAXAH52;AXAA5#,AXAH54,AXAL54..G,P,V202112-202210

REFER TO PNC 86466D

main00000-00000iAXAA5#..G,V;AXAH54,AXAL54..G,M201811-202007

MOON ROOF-WITH(PANORAMA ROOF),NOT APPLICABLE

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-42070iAXAA5#,AXAH54,AXAL54..X201811-202007

main00000-00000iAXAA5#..G,V;AXAH54,AXAL54..G,M201811-202007

MOON ROOF-WITH(PANORAMA ROOF),NOT APPLICABLE

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-42050iAXAA5#,AXAH5#,AXAL54202210-202310

main00000-00000iAXAA5#..G,V;AXAH54,AXAL54..G,M201811-202007

MOON ROOF-WITH(PANORAMA ROOF),NOT APPLICABLE

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63108-42010iAXAA5#,AXAH5#,AXAL54202008-202210

main00000-00000iAXAA5#..G,V;AXAH54,AXAL54..G,M201811-202007

MOON ROOF-WITH(PANORAMA ROOF),NOT APPLICABLE

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63149-42080iAXAA5#,AXAH5#,AXAL54201811-202007

main00000-00000iAXAA5#..G,V;AXAH54,AXAL54..G,M201811-202007

MOON ROOF-WITH(PANORAMA ROOF),NOT APPLICABLE

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iAXAA5#,AXAH5#,AXAL54201811-202007

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iAXAA5#,AXAH5#,AXAL54201811-202007

10 parts on this diagram · 8 diagrams in section
