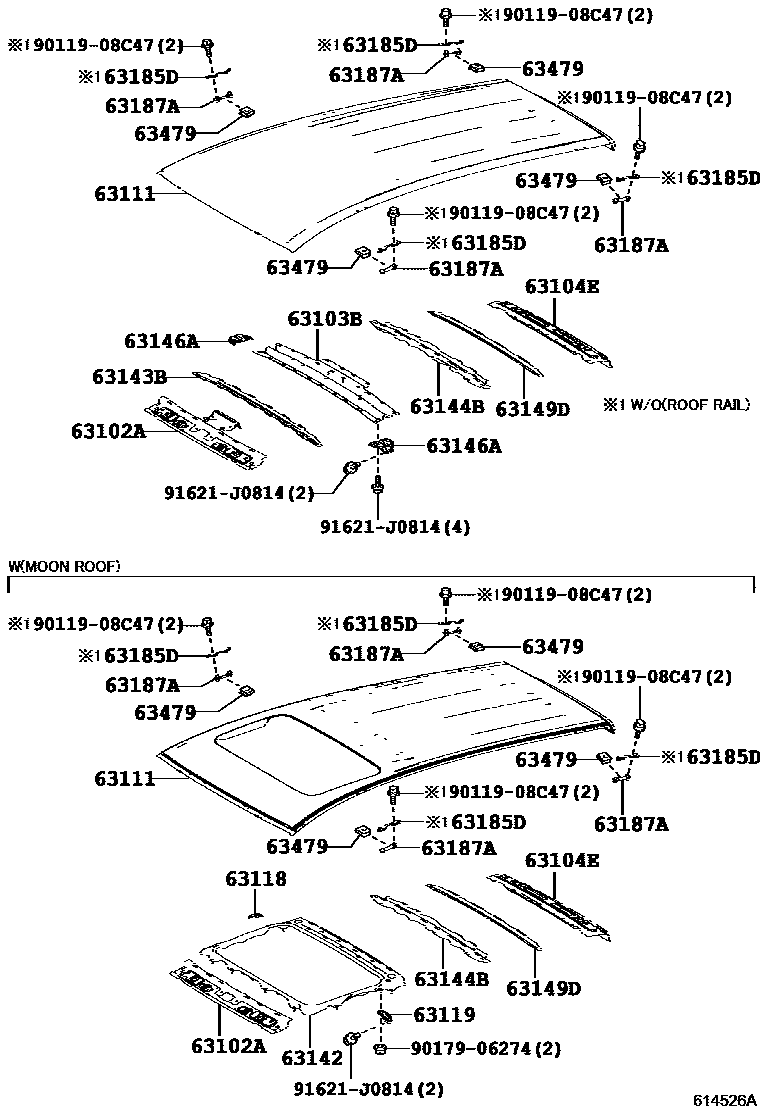

Toyota RAV4 (JPP) — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1SLIDING ROOF 0003 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42903iASA42..LIMD201212-201510

MOON ROOF-WITHOUT

main63102-42904iASA4#..LIMD,XLE201212-201510

main63102-42905iASA42..LIMD201510-201810

MOON ROOF-WITHOUT

main63102-42906iASA4#,AVA44..LIMD,SE,XLE201510-201810

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-42030iASA42..LIMD201212-201510

MOON ROOF-WITHOUT

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-42020iASA4#201212-201510

63111PANEL, ROOF

main63111-42230iASA42..LIMD201212-201510

MOON ROOF-WITHOUT

main63111-42231iASA42..LIMD201510-201810

MOON ROOF-WITHOUT

main63111-42240iASA4#..LIMD,XLE201212-201510

main63111-42241iASA4#,AVA44..LIMD,SE,XLE201510-201810

63118SUPPORT, ROOF PANEL, RH

main63118-42070iASA4#..LIMD,XLE201212-201510

63119SUPPORT, ROOF PANEL, LH

main63118-42070iASA4#..LIMD,XLE201212-201510

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-42050iASA4#,AVA44..LIMD,SE,XLE201510-201810

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-42060iASA42..LIMD201212-201510

MOON ROOF-WITHOUT

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42041iASA4#201212-201510

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-42020×2iASA42..LIMD201212-201510

MOON ROOF-WITHOUT

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-42070iASA4#201212-201510

63185DBRACKET, ROOF RACK, FRONT

main63185-42020×4iASA4#201212-201510

63187ABRACKET, ROOF RACK, REAR

main63187-42010×4iASA4#201212-201510

63479RETAINER, ROOF INNER RACK

main63479-42010×4iASA4#201212-201510

9011908C47

main90119-08C47

9017906274

main90179-06274

91621J0814

main91621-J0814

17 parts on this diagram · 3 diagrams in section
