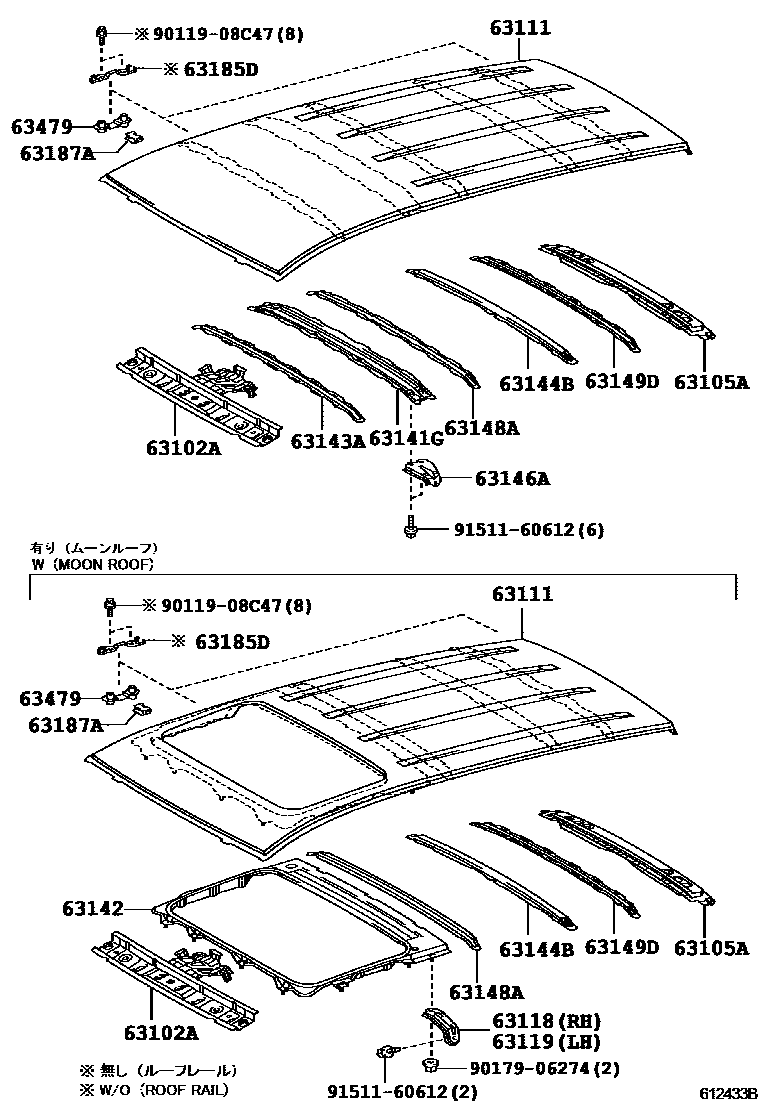

Toyota RAV4 (JPP) — ROOF PANEL & BACK PANEL

0001 1 0002 1MOON ROOF 0004 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42901iASA3#,GSA3#..JPP200808-201212

main63102-42902iASA3#,GSA3#..JPP..X201008-201212

US BASE PLUSE PACKAGE

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42030iACA3#,GSA3#..JPP200511-200608

main63105-42031iACA3#,GSA3#..JPP200608-200808

63111PANEL, ROOF

main63111-42150iACA3#,GSA3#..JPP200511-200808

main63111-42160iASA3#,GSA3#..JPP200808-201212

main63111-42170iACA3#,GSA3#..JPP..(LIMD,SPO)200511-200808

MOON ROOF-WITH

main63111-42180iASA3#,GSA3#..JPP..X201008-201212

US BASE PLUSE PACKAGE

63118SUPPORT, ROOF PANEL, RH

main63118-42060iASA3#,GSA3#..JPP..(LIMD,SPO)200808-201212

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-42060iASA3#,GSA3#..JPP..X201008-201212

US BASE PLUSE PACKAGE

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-42080iACA3#,GSA3#..JPP200511-200808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-42901iASA3#,GSA3#..JPP..X201008-201212

US BASE PLUSE PACKAGE

63143AREINFORCEMENT, ROOF PANEL

main63143-42050iACA3#,GSA3#..JPP200511-200808

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42030iACA3#,GSA3#..JPP200511-200808

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-42010×2iACA3#,GSA3#..JPP200511-200808

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-42030iACA3#,GSA3#..JPP200511-200808

main63148-42040iASA3#,GSA3#..JPP..X201008-201212

US BASE PLUSE PACKAGE

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-42060iACA3#,GSA3#..JPP200511-200808

63185DBRACKET, ROOF RACK, FRONT

main63185-42020×4iACA3#,GSA3#..JPP..X200511-200808

63187ABRACKET, ROOF RACK, REAR

main63187-42010×4iACA3#,GSA3#..JPP200511-200808

63479RETAINER, ROOF INNER RACK

main63479-42010×4iACA3#,GSA3#..JPP200511-200808

9011908C47

main90119-08C47

9017906274

main90179-06274

9151160612

main91511-60612

18 parts on this diagram · 3 diagrams in section
