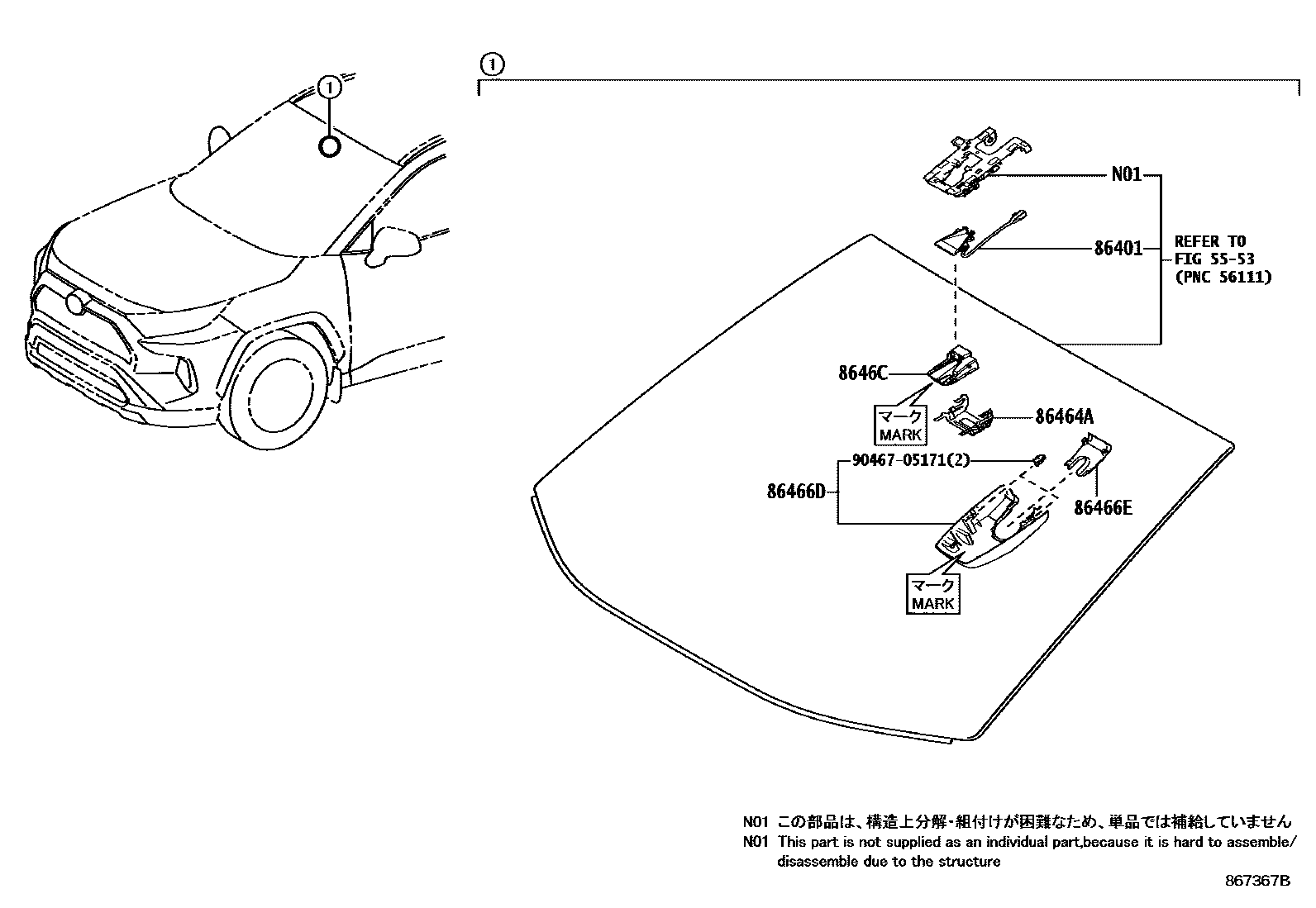

Toyota RAV4 (JPP) — PRE-COLLISION SYSTEM

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-10010iAXAA5#,AXAH5#,AXAL54202210-202310

REFER TO PNC 86466D

main86401-42040iAXAA54;AXAA52,AXAH54..X201811-201905

AMERICAN SAMOA SPEC

main86401-42041iAXAA54;AXAA52,AXAH54..X201906-202007

AMERICAN SAMOA SPEC

86464ALATCH, FORWARD RECOGNITION

main86464-26010iAXAA54;AXAA52,AXAH54..X201811-202007

AMERICAN SAMOA SPEC

main86464-K0010iAXAA5#,AXAH5#,AXAL54202112-202210

REFER TO PNC 86466D

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42060iAXAA5#,AXAH5#,AXAL54..M,V,X202008-202112

MARK 86466-42060

main86466-42120iAXAA5#,AXAH54,AXAL54..G,M,P202112-202210

MARK=86466-42120

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42070iAXAA52,AXAH5#..M201811-202007

AMERICAN SAMOA SPEC

main86466-42130supersedes 86466-42070iAXAA54..G201811-202007

AMERICAN SAMOA SPEC

8646CCAMERA, FORWARD RECOGNITION

main8646C-0R090iAXAA5#,AXAH5#,AXAL54202112-202210

REFER TO PNC 86466D

main8646C-0R140iAXAA5#,AXAH5#,AXAL54202210-202306

REFER TO PNC 86466D

main8646C-0R141iAXAA5#,AXAH5#,AXAL54202307-202310

REFER TO PNC 86466D

main8646C-0R142iAXAA5#,AXAH5#,AXAL54202407

MARK=8646C-0R142

main8646C-42030iAXAA54;AXAA52,AXAH54..X201811-201910

AMERICAN SAMOA SPEC

main8646C-42031iAXAA54;AXAA52,AXAH54..X201910-202007

AMERICAN SAMOA SPEC

main8646C-42032iAXAA5#,AXAH5#,AXAL54202010-202112

REFER TO PNC 86466D

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
