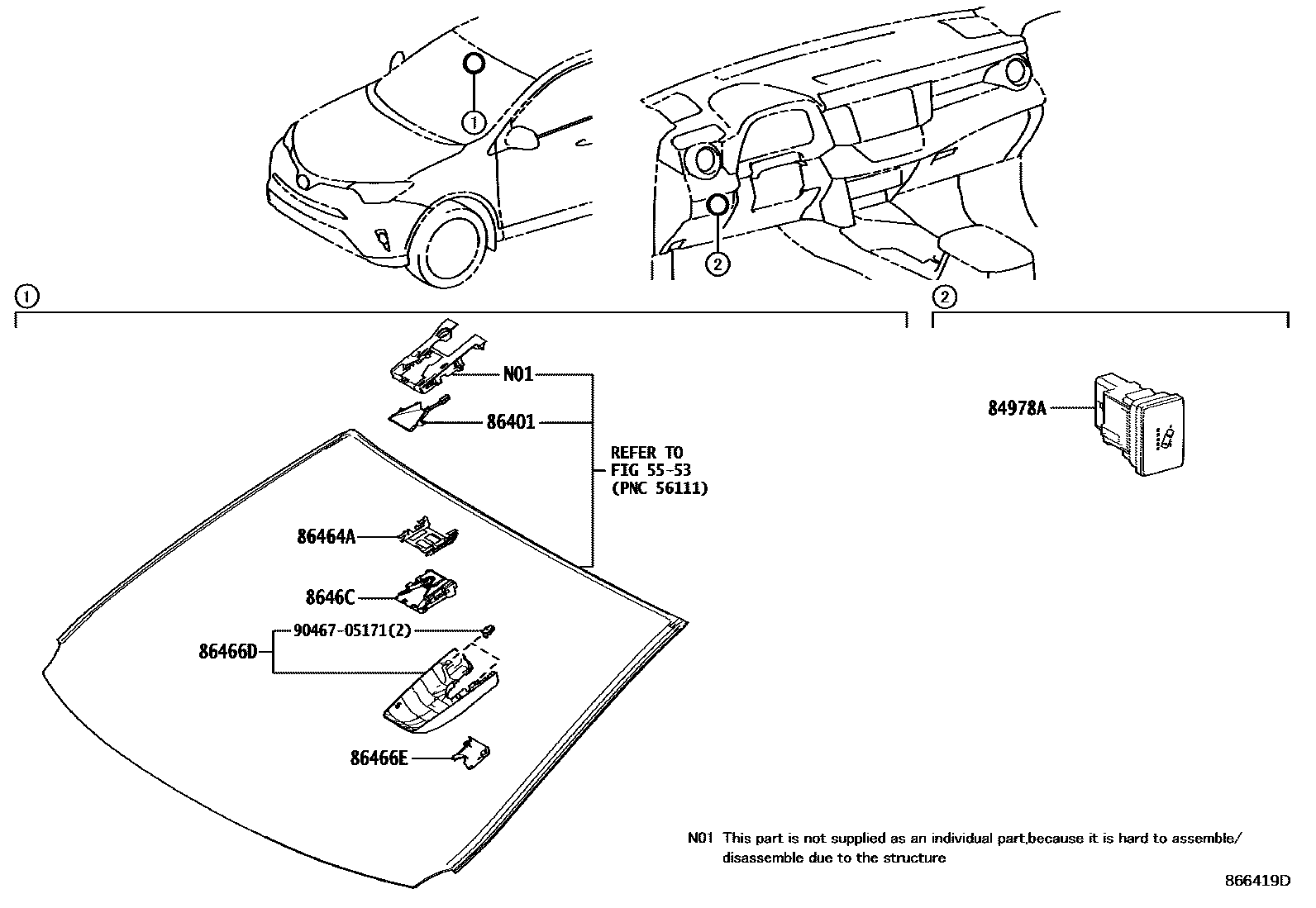

Toyota RAV4 (JPP) — PRE-COLLISION SYSTEM

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

84978ASWITCH, LANE-KEEPING ASSIST MAIN

main84978-42030i201608-201810

PRE-COLLISION SYSTEM-WITHOUT

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-48030i201701-201810

PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITHOUT

86464ALATCH, FORWARD RECOGNITION

main86464-48011i201608-201810

PRE-COLLISION SYSTEM-WITHOUT

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42020i201608-201701

PRE-COLLISION SYSTEM-WITHOUT

main86466-42080i201701-201810

PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITHOUT

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42030i201608-201701

PRE-COLLISION SYSTEM-WITHOUT

main86466-42090i201701-201810

PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITHOUT

8646CCAMERA, FORWARD RECOGNITION

main8646C-42020i201608-201701

PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITHOUT

main8646C-42021i201701-201810

PRE-COLLISION SYSTEM-WITH; PRE-COLLISION SYSTEM-WITHOUT

main8646C-42010i201510-201608

PRE-COLLISION SYSTEM-WITH

9046705171

main90467-05171

8 parts on this diagram · 1 diagram in section

PRE-COLLISION SYSTEM for Toyota RAV4 (JPP)

This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota RAV4 (JPP). Key components include: COWL PANEL & WINDSHIELD GLASS, SWITCH, LANE-KEEPING ASSIST MAIN, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1.
