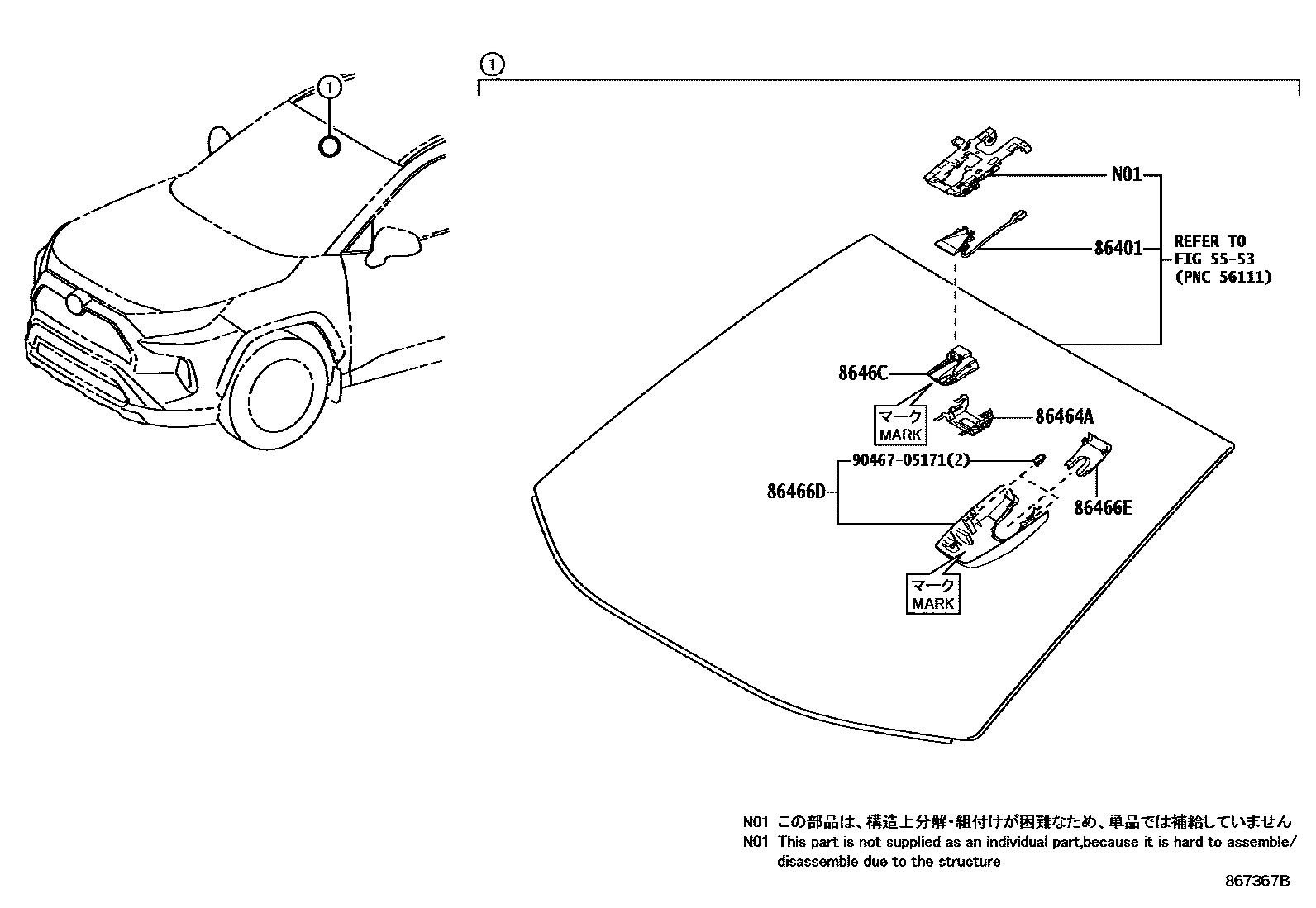

Toyota RAV4 (JPP) — PRE-COLLISION SYSTEM

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-10010iAXAA54..V..ARL;AXAH54,MXAA52..G..ARL202112-202210

PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D

main86401-42041supersedes 86401-42041iAXAL5#..ARL201906-202007

NEW ZEALAND SPEC

86464ALATCH, FORWARD RECOGNITION

main86464-26010supersedes 86464-26010iAXAL5#..ARL201902-202007

main86464-K0010supersedes 86464-K0010iAXAA54..V..ARL;AXAH54,MXAA52..G..ARL202112-202210

PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42060supersedes 86466-42060iAXAL5#..ARL201902-202007

main86466-42120supersedes 86466-42120iAXAA54..V..ARL;AXAH54,MXAA52..G..ARL202112-202210

OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK 86466-42120

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42070supersedes 86466-42070iAXAL5#..ARL201902-202007

main86466-42130supersedes 86466-42070iAXAH54,MXAA52..G..ARL202112-202210

PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

8646CCAMERA, FORWARD RECOGNITION

main8646C-0R090iAXAA54..V..ARL;AXAH54,MXAA52..G..ARL202112-202210

PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D

main8646C-0R140iMXAA54..RHD..(M,X);AXAH54..LHD..P..EUR;AXAH52..X..(EUR,GCC);AXAH54..RHD..(EUR,GEN);AXAH52..(G,M,P)..(EUR,GEN);AXAA5#,AXAL5#,MXAA52..EUR,GCC,GEN;AXAH54,MXAA54..LHD..202210-202306

PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D

main8646C-0R141iAXAH52..X..GEN;AXAH54..V..ARL;AXAH54..P..GEN;MXAA52..X..ARL;AXAA54,AXAH52..ARL,SA;MXAA52..(G,M)..(ARL,SA);AXAH54..(G,M,P,X)..(ARL,SA)202310-202407

PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK=8646C-0R141

main8646C-0R142iAXAH52..X..GEN;AXAH54..V..ARL;AXAH54..P..GEN;MXAA52..X..ARL;AXAA54,AXAH52..ARL,SA;MXAA52..(G,M)..(ARL,SA);AXAH54..(G,M,P,X)..(ARL,SA)202407

OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK=8646C-0R142

main8646C-42031iAXAA54..LHD..V;MXAA54..JPP..LHD;MXAA54..RHD..(M,X);MXAA52..JPP..LHD..6F..X;MXAA52..CVT..X..(EUR,GEN);MXAA52..(G,M)..(EUR,GEN,SA);AXAA5#,AXAH5#,AXAL5#..(G,M,X)..(EUR202008-202010

NEW ZEALAND SPEC

main8646C-42032supersedes 8646C-42032iAXAA52..X..GEN;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR202010-202111

REFER TO PNC 86466D

main8646C-42150iAXAH5#,AXAL5#..EUR202310-202401

ACTIVE SAFETY PACKAGE-WITHOUT,*614

main8646C-42151iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202402-202410

*614

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
