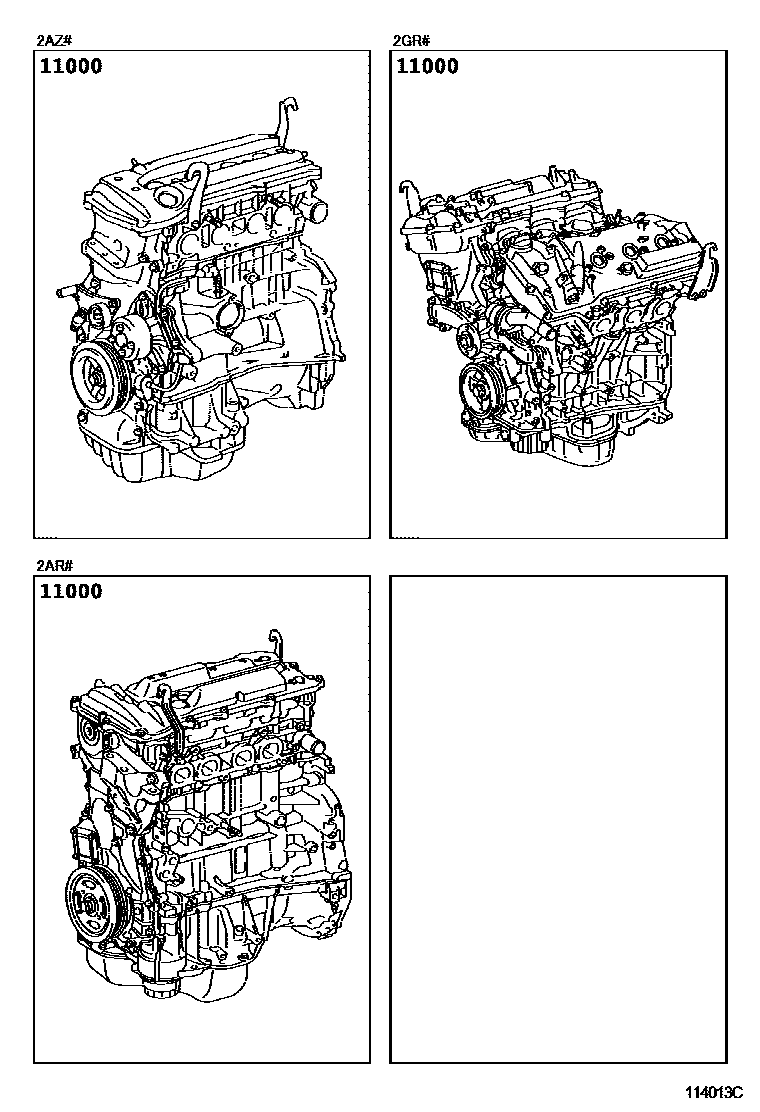

Toyota RAV4 (JPP) — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-28B00i2AZFE..ACA3#..JPP200511-200808

sub19000-28B01

main19000-31B70i2GRFE..GSA3#..JPP200601-200808

main19000-36210i2ARFE..ASA3#..JPP200808-201212

main19000-31F80i2GRFE..GSA3#..JPP..USA200808-201008

MEXICO SPEC

main19000-36270i2ARFE..ASA3#..JPP..LIMD..USA200909-201003

KOREA SPEC

1 parts on this diagram · 1 diagram in section
