Toyota RAV4 (JPP) — MIRROR

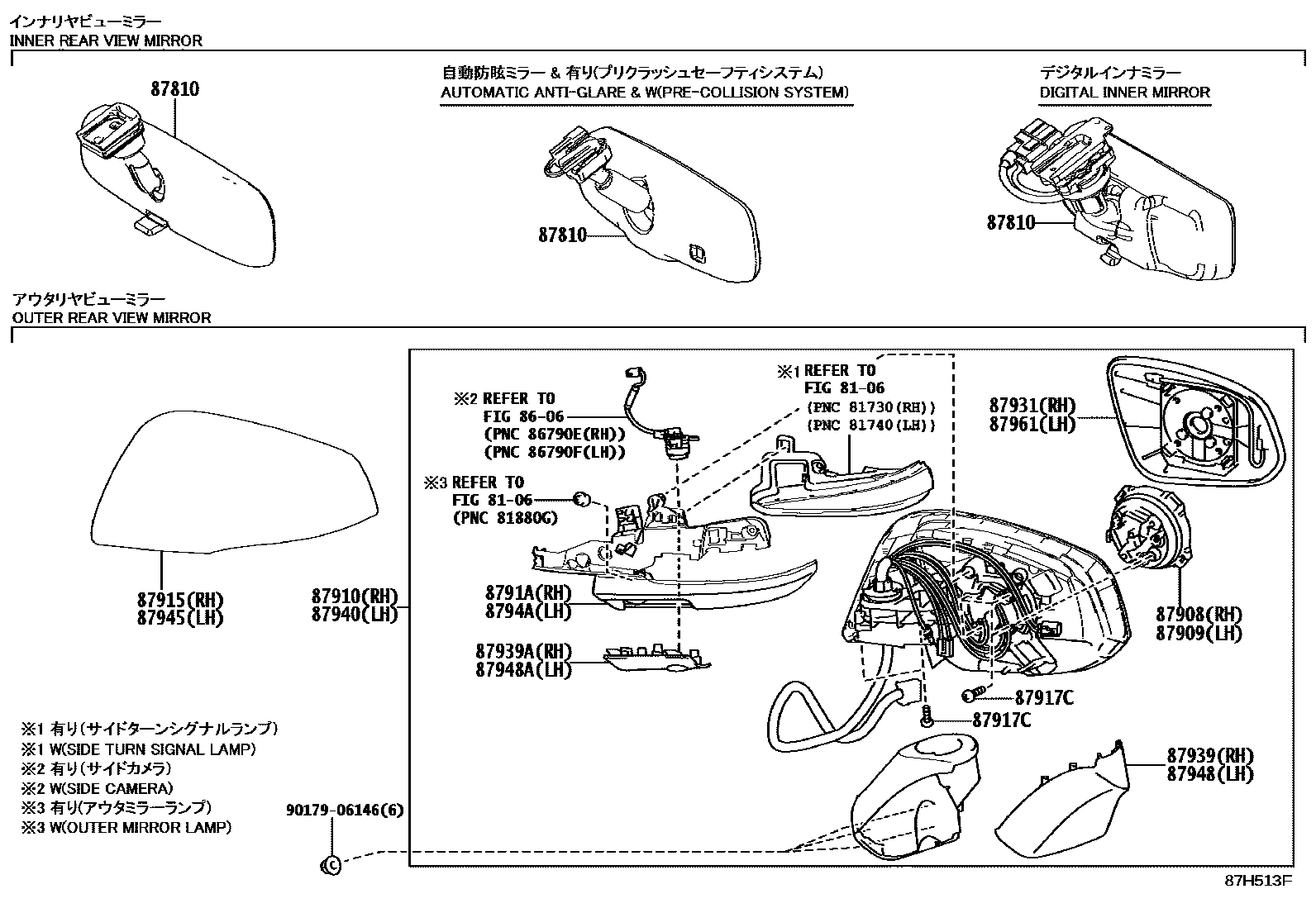

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-0R110i201811-201910
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK
main87810-0R190i201910-202007
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK
main87810-0R250i202008-202112
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK
main87810-0WW70i202112-202210
main87810-28140i201811-202007
main87810-0R120i201902-201909
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main87810-0R200i201910-202007
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main87810-0WK00i201811-202007
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
main87810-0WZ20i202008-202112
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main87840-0W140i202310
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; KOREA SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-42E71i202310
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87908-42E71i202310
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-42E40supersedes 87910-42E30i201811-201902
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87910-42E41supersedes 87910-42L50i202008-202012
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87910-42E42i202101-202204
NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87910-42E70supersedes 87910-42E40i201811-202007
NO PAINT REQ.; NO PAINT REQ.,KOREA SPEC&BACK MONITOR-WITH(BACK GUIDE MONITOR)
main87910-42E71i202101-202204
NO PAINT REQ.,KOREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87910-42L60i202204-202210
NO PAINT REQ.; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87910-42L80i202310-202408
NO PAINT REQ.,KOREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,KOREA SPEC,REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87910-42E60supersedes 87910-42E50i201811-201902
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87910-42E61supersedes 87910-42L70i202008-202012
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87910-42K50i202112-202209
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D
main87910-42K51i202209-202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87910-42K90i202101-202112
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D
main87910-42L20supersedes 87910-42L70i202210-202310
NO PAINT REQ.,AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42L21supersedes 87910-42L70i202310
NO PAINT REQ.,AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42L70i202210-202310
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87915COVER, OUTER MIRROR, RH
main87915-42200-A0i202310
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,SUPER WHITE 2,040; SUPER WHITE 2,040
main87915-42200-A1i201811-202007
KOREA SPEC&BACK MONITOR-WITH(BACK GUIDE MONITOR),WHITE PEARL CS.,070; WHITE PEARL CS.,070
main87915-42200-A2i202310
PLATINUM WHITE PEARL MC.,089
main87915-42200-B0i202310
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,SILVER ME.,1D6; SILVER ME.,1D6
main87915-42200-B1i202210-202310
GRAY ME.,1G3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3
main87915-42200-C0i202210-202310
BLACK,2QU
main87915-42200-C1i202008-202210
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,218
main87915-42200-D0i202008-202210
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,RED MC.,3T3; RED MC.,3T3
main87915-42200-G0i202210-202310
URBAN KHAKI,6X3
main87915-42200-J0i202008-202112
CYAN METALLIC,8W9; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,CYAN METALLIC,8W9
main87915-42200-J1i202210-202310
DK. BLUE MC.,8X8
main87915-42200-J3i202112-202210
GRAYISH BLUE,8W2; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAYISH BLUE,8W2
main87915-42210i202310
NO PAINT REQ.
87917CSCREW, OUTER MIRROR
main87917-15010×12i202210-202309
8791ACOVER, OUTER MIRROR, RH NO.2
main8791B-42E40supersedes 8791B-42E30i202008-202210
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main8791B-42E50i202008-202210
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
87931OUTER MIRROR, RH
main87931-42E50supersedes 87931-42E30i201811-202007
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
87939COVER, OUTER MIRROR HOLE, RH
main87939-42E30i201811-202007
87939ACOVER, OUTER MIRROR HOLE, RH
main87939-42E50i201811-202007
KOREA SPEC&BACK MONITOR-WITH(BACK GUIDE MONITOR)
main87939-42E60i201811-202007
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87939-42L20i202310
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-42E10supersedes 87940-42E00i201811-201902
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87940-42E11supersedes 87940-42L40i201903-202007
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87940-42E12i202101-202204
NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87940-42E40supersedes 87940-42E10i201811-202007
NO PAINT REQ.; NO PAINT REQ.,KOREA SPEC&BACK MONITOR-WITH(BACK GUIDE MONITOR)
main87940-42E41i202101-202204
NO PAINT REQ.,KOREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87940-42L50i202310
NO PAINT REQ.,AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87940-42L70i202310-202408
NO PAINT REQ.,KOREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,KOREA SPEC,REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87940-42E30i201811-201902
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87940-42E31supersedes 87940-42L60i201903-202007
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87940-42K40i202112-202209
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D
main87940-42K41i202209-202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87940-42K80i202101-202112
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D
main87940-42L10i202210-202310
NO PAINT REQ.,AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42L11i202310
NO PAINT REQ.,AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42L60i202210-202310
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
87945COVER, OUTER MIRROR, LH
main87945-42200-A0i201811-202007
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,SUPER WHITE 2,040; SUPER WHITE 2,040
main87945-42200-A1i201811-202007
KOREA SPEC&BACK MONITOR-WITH(BACK GUIDE MONITOR),WHITE PEARL CS.,070; WHITE PEARL CS.,070
main87945-42200-A2i202210-202310
PLATINUM WHITE PEARL MC.,089
main87945-42200-B0i202008-202210
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,SILVER ME.,1D6; SILVER ME.,1D6
main87945-42200-B1i202210-202310
GRAY ME.,1G3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3
main87945-42200-C0i202210-202310
BLACK,2QU
main87945-42200-C1i201811-202007
ATTITUDE BLACK MC.,218; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,218
main87945-42200-D0i202008-202210
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,RED MC.,3T3; RED MC.,3T3
main87945-42200-G0i202310
URBAN KHAKI,6X3
main87945-42200-J0i202008-202112
CYAN METALLIC,8W9; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,CYAN METALLIC,8W9
main87945-42200-J1i202210-202310
DK. BLUE MC.,8X8
main87945-42200-J3i202210-202310
GRAYISH BLUE,8W2; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAYISH BLUE,8W2
main87945-42210i202210-202310
NO PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
main87948-42E00i201811-202007
87948ACOVER, OUTER MIRROR HOLE, LH
main87948-42E20i202310
KOREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87948-42E30i202008-202112
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87948-42L10i202210-202310
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
8794ACOVER, OUTER MIRROR, LH NO.2
main8794B-42E10supersedes 8794B-42E00i201811-202007
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main8794B-42E20i202210-202310
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTB; KOREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
87961MIRROR OUTER, LH
main87961-42E20supersedes 87961-42E00i201811-202007
LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87961-42E40i202210-202310
KOREA SPEC; KOREA SPEC&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
9017906146
main90179-06146

19 parts on this diagram · 1 diagram in section

MIRROR for Toyota RAV4 (JPP)

This section contains 19 genuine Toyota parts for the MIRROR system of the Toyota RAV4 (JPP). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
