Toyota RAV4 (JPP) — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
PRE-COLLISION SYSTEM-WITH
KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&HEAD LAMP-LED
INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE WITH(HOMELINK)
PRE-COLLISION SYSTEM-WITH&HEAD LAMP-HALOGEN, W(*AHB); PRE-COLLISION SYSTEM-WITH&HEAD LAMP-LED, W(*AHB); PRE-COLLISION SYSTEM-WITH&INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE WITH(HOMELINK)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INSIDE REAR VIEW MIRROR-AUTO-ANTI GLARE WITH(HOMELINK)
KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&HEAD LAMP-LED
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
KOREA SPEC&BACK MONITOR-WITH(*BGM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA); LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
KOREA SPEC
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA); LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
KOREA SPEC&BACK MONITOR-WITH(*BGM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,KOREA SPEC
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
KOREA SPEC&BACK MONITOR-WITH(*BGM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.
SUPER WHITE 2,040,TYPE A
WHITE PEARL CS.,070,TYPE A
SILVER ME.,1F7,TYPE A
GRAY ME.,1G3,TYPE A
BLACK MC.,209,TYPE A
RED M.M.,3R3,TYPE A
BRONZE M.M.,4T3,TYPE A
DK.BROWN ME.,4U5,TYPE A
DK.GREEN MC.,6V4,TYPE A
GRAYISH BLUE M.M.,8V5,TYPE A
NO PAINT REQ.
WHITE PEARL CS.,070,TYPE B
SUPER WHITE 2,040,TYPE B
SILVER ME.,040 ,1F7 ,209 ,8X7; SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,040 ,209 ,8X7; SILVER ME.,1D6
BLACK,040 ,070 ,1D6 ,1G3 ,209 ,221 ,3R3 ,3T0 ,3T3 ,4T3 ,4U5 ,8X7; BLACK,040 ,070 ,1D6 ,1G3 ,209 ,221 ,3T3 ,8X7
BLACKISH AGEHA M.M.,221
BLACK MC.,209,TYPE B
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
DK.BROWN ME.,4U5,TYPE B
ORANGE ME.,4R8
BRONZE M.M.,4T3,TYPE B
BLUE ME.,8X7
87915BCOVER, OUTER MIRROR, LOWER RH
KOREA SPEC&BACK MONITOR-WITH(*BGM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
8791ACOVER, OUTER MIRROR, RH NO.2
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,KOREA SPEC
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
KOREA SPEC&BACK MONITOR-WITH(*BGM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.
SUPER WHITE 2,040,TYPE A
WHITE PEARL CS.,070,TYPE A
SILVER ME.,1F7,TYPE A
GRAY ME.,1G3,TYPE A
BLACK MC.,209,TYPE A
RED M.M.,3R3,TYPE A
BRONZE M.M.,4T3,TYPE A
DK.BROWN ME.,4U5,TYPE A
DK.GREEN MC.,6V4,TYPE A
GRAYISH BLUE M.M.,8V5,TYPE A
NO PAINT REQ.
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,040 ,1F7 ,209 ,8X7; SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,040 ,209 ,8X7; SILVER ME.,1D6
BLACK,040 ,070 ,1D6 ,1F7 ,1G3 ,209 ,221 ,3R3 ,3T0 ,3T3 ,4R8 ,4T3 ,4U5 ,8X7
BLACKISH AGEHA M.M.,221
BLACK MC.,209
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
DK.BROWN ME.,4U5,TYPE B
ORANGE ME.,4R8,TYPE B
BRONZE M.M.,4T3
BLUE ME.,8X7
87945CCOVER, OUTER MIRROR, LOWER LH
KOREA SPEC&BACK MONITOR-WITH(*BGM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87946RETRACTOR, OUTER MIRROR, RH
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA),NOT APPLICABLE; LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA),NOT APPLICABLE; NOT APPLICABLE,#
KOREA SPEC
8794ACOVER, OUTER MIRROR, LH NO.2
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87966RETRACTOR, OUTER MIRROR, LH
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA),NOT APPLICABLE; LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA),NOT APPLICABLE; NOT APPLICABLE,#
KOREA SPEC
9016360024
main90163-60024

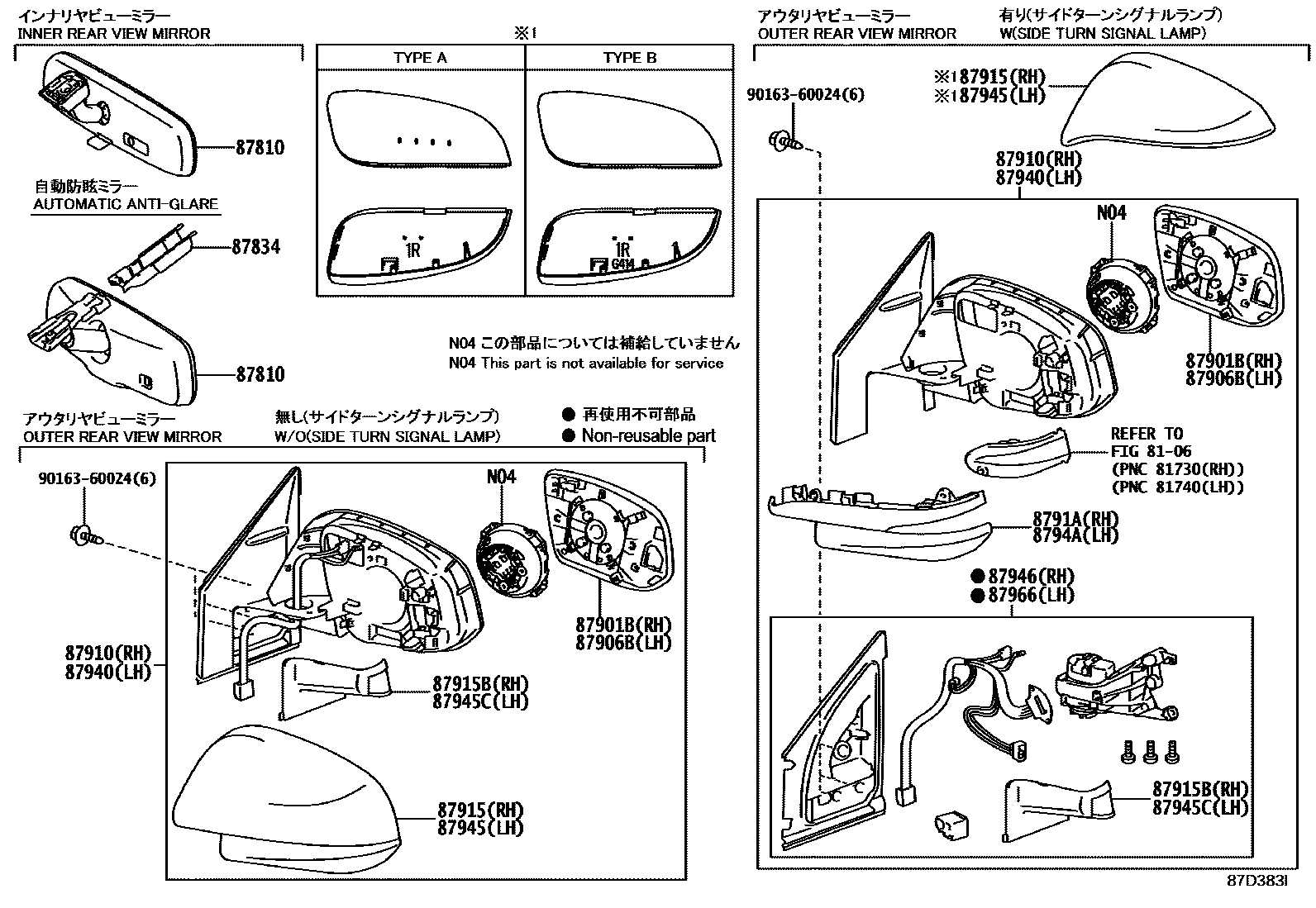

16 parts on this diagram · 2 diagrams in section
MIRROR for Toyota RAV4 (JPP)
This section contains 19 genuine Toyota parts for the MIRROR system of the Toyota RAV4 (JPP). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
