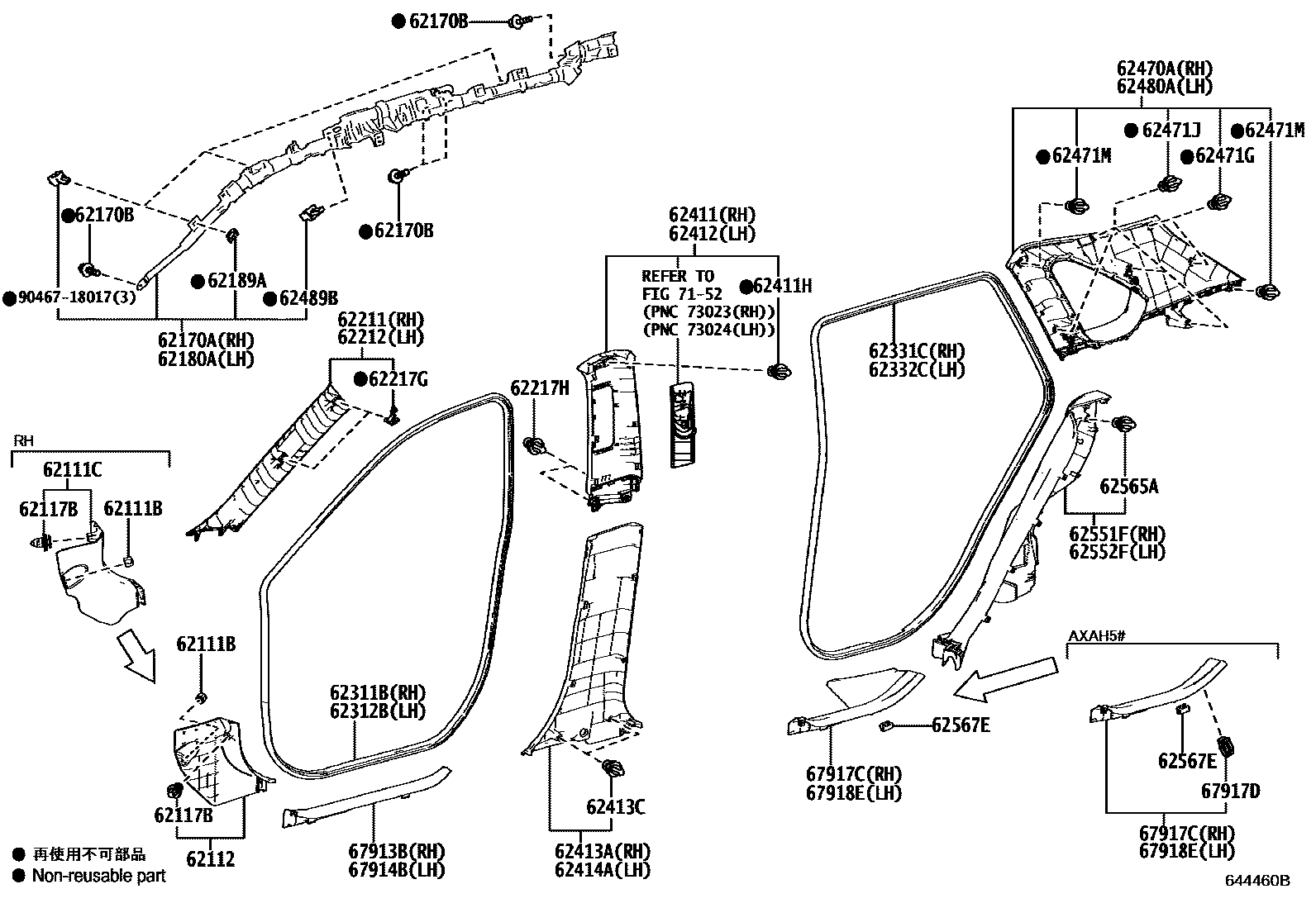

Toyota RAV4 (JPP) — INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06155×2iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
main62111-42080-C0iAXAH52..RHD..P..EUR;AXAL5#..RHD..(M,P,V);AXAA54,AXAH5#,MXAA52..(M,P,X)..ARL; AXAH54..V..ARL;MXAA54..RHD..(V,X);MXAA52..RHD..X..GEN;AXAA54..(G,V)..(ARL,SA);AXAH54,MXAA52..(G,V)..SA; MXAA52..RHD..M..GEN;AXAH52,AXAL5#..RHD..G;AXAA54,MXAA54..RHD..(G,M)..GEN;AXAH54,MXAA52..RHD..G..(ARL,GEN)202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM2#
main62112-42070-C0iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN; AXAH5#,AXAL5#..RHD..X..EUR; MXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)202008-202111
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-42070iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202207
62170BBOLT, W/WASHER
(L)
main91673-80616×8iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-42070iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
main62180-42071iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
main62210-42100-B0iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN; AXAH5#,AXAL5#..RHD..X..EUR; MXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)202008-202111
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#
main62210-42110-B1supersedes 62210-42100-B0iAXAA54,AXAH54..V..ARL; AXAH5#,AXAL5#..M..EUR; AXAH5#,MXAA52..G..ARL202112-202210
AUDIO-JBL 8INCH DAB, EUROPE,LT.GRAY,TRIM2#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
BLACK,TRIM2#
HV BLACK PACKAGE&AUDIO-JBL 8INCH DAB, EUROPE,BLACK,TRIM2#; HV EMOTIONAL PACKAGE&AUDIO-JBL 8INCH DAB, EUROPE,BLACK,TRIM2#
62212GARNISH, FRONT PILLAR, LH
main62220-42090-B0iAXAA54..V..ARL; AXAH54,MXAA52..G..ARL; AXAH54..G..ARL; AXAH54..V..SA;AXAH5#,MXAA52..X..(ARL,GCC,GEN);AXAA5#,MXAA54..(V,X)..(GCC,GEN,SA); MXAA52..M..ARL;MXAA52..(G,M)..(GEN,SA);AXAH5#..M..(ARL,GCC,GEN);AXAH5#,AXAL5#..G..(EUR,GCC,GEN,SA);AXAA5#,MXAA54..(G,M)..(ARL,GCC,GEN,SA); MXAA54..JPP..RUS;AXAH5#,AXAL5#..(M,V,X)..EUR202210-202310
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; OCEANIA OTHERS SPEC,LT.GRAY,TRIM1#,2#,4#; OCEANIA OTHERS SPEC,LT.GRAY,TRIM2#,4#; PAPUA NEW GUINEA, SAMOA SPEC,LT.GRAY,TRIM1#,2#,4#
main62220-42100-B1supersedes 62220-42090-B0iAXAA54,AXAH54..V..ARL; AXAH5#,MXAA52..G..ARL; AXAH54..LHD..G..EUR;AXAH52,AXAL5#..G..EUR; AXAL5#..M,V;AXAH5#..LHD..(M,V)..EUR202310
AUDIO-JBL 10.5INCH DAB, EUROPE,LT.GRAY,TRIM1#,2#,4#; AUDIO-JBL 10.5INCH DAB, EUROPE,LT.GRAY,TRIM2#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
BLACK,TRIM2#
HV BLACK PACKAGE&AUDIO-JBL 8INCH DAB, EUROPE,BLACK,TRIM2#; HV EMOTIONAL PACKAGE&AUDIO-JBL 8INCH DAB, EUROPE,BLACK,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
main90467-10216×4iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-42110iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-42110iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411GARNISH, CENTER PILLAR, RH
LT.GRAY,TRIM2#
main62410-42100-B1iAXAH54..G;AXAH54..M..(ARL,GCC);AXAH52,AXAL5#..G..EUR;AXAA5#,AXAH52,MXAA5#..(G,M)..(ARL,GCC,GEN,SA); MXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,MXAA54..(V,X)..(ARL,GCC,GEN,SA); MXAA54..JPP..RUS;AXAH5#,AXAL5#..(M,V,X)..EUR202210-202310
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#
BLACK,TRIM2#
62411HCLIP
main90467-10167×2iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
62412GARNISH, CENTER PILLAR, LH
LT.GRAY,TRIM2#
main62420-42100-B1iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN; AXAH5#,AXAL5#..RHD..X..EUR; MXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)202008-202111
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#
BLACK,TRIM2#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
main62413-42090-C0iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN); AXAH52..M;AXAL5#..G..EUR;MXAA54..RHD..(M,X);AXAH5#..LHD..X..EUR;AXAA54..RHD..X..GEN;AXAH52..LHD..G..GEN;MXAA5#..LHD..6F..EUR;AXAH52..G..(ARL,EUR);MXAA5#..LHD..6F..M..GEN;MXAA52..CVT..X..(EUR,GEN,SA);MXAA54..JPP..LHD..CVT..(G,M);MXAA52..RHD..6F..(M,X)..(EUR,GEN,SA);AXAA5#,AXAL5#..(G,M)..(ARL,GCC,GEN,SA);AXAH54,MXAA52..CVT..(G,M)..(ARL,EUR,GCC,GEN,SA)201811-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161×4iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
main62414-42090-C0iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN; AXAH5#,AXAL5#..RHD..X..EUR; MXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)202008-202111
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
main62470-42170-B0iAXAA54..V..GEN;AXAH5#..RHD..X;MXAA54..RHD..V;AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN;AXAA54,AXAL5#,MXAA52..(V,X)..(ARL,GCC);AXAA52,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN); AXAH52..M;AXAL5#..G..EUR;MXAA54..RHD..(M,X);AXAH5#..LHD..X..EUR;AXAA54..RHD..X..GEN;AXAH52..LHD..G..GEN;MXAA5#..LHD..6F..EUR;AXAH52..G..(ARL,EUR);MXAA5#..LHD..6F..M..GEN;MXAA52..CVT..X..(EUR,GEN,SA);MXAA54..JPP..LHD..CVT..(G,M);MXAA52..RHD..6F..(M,X)..(EUR,GEN,SA);AXAA5#,AXAL5#..(G,M)..(ARL,GCC,GEN,SA);AXAH54,MXAA52..CVT..(G,M)..(ARL,EUR,GCC,GEN,SA)201811-202007
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
BLACK,TRIM2#
62471GCLIP, ROOF SIDE INNER GARNISH
main90467-10167×4iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
62471JCLIP (FOR ROOF SIDE GARNISH)
62471MCLIP
62480AGARNISH ASSY, ROOF SIDE, INNER LH
LT.GRAY,TRIM2#
LT.GRAY,TRIM2#
main62480-42180-B0iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN; AXAH5#,AXAL5#..RHD..X..EUR; MXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)202008-202111
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#
BLACK,TRIM2#
62489BCLIP, ROOF SIDE INNER GARNISH
main62489-28010×2iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
62551FGARNISH, REAR SEAT SIDE, RH
main62555-42050-C0iAXAA5#,MXAA5#..(G,M)..(ARL,GCC,GEN,SA); MXAA54..JPP..(V,X);AXAA5#,MXAA52..(V,X)..(ARL,GCC,GEN); MXAA54..JPP..RUS202210-202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main62555-42070-C0iAXAH5#..(V,X)..(ARL,GCC,GEN,SA); AXAH5#..P..(ARL,GEN);AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#..(M,P,V)..EUR; AXAH54..G;AXAH52..(G,M)..ARL;AXAH5#..LHD..M..GEN;AXAH54..M..(ARL,GCC);AXAH52,AXAL5#..G..(EUR,GEN)202008-202210
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
62552FGARNISH, REAR SEAT SIDE, LH
main62556-42050-C0iAXAA54..LHD..V..GEN;MXAA54..V..(GEN,SA);AXAA54..V..(ARL,GCC);AXAA54,MXAA54..JPP..X;MXAA52..LHD..6F..X..GEN;MXAA52..CVT..X..(ARL,GEN);AXAA52,MXAA52..X..(GCC,SA); AXAA54..M..ARL;MXAA5#..G..EUR;MXAA54..M..GCC;MXAA54..CVT..(G,M)..GEN;MXAA52..(G,M)..(ARL,GEN,SA);AXAA54..(G,M)..(GCC,GEN,SA);AXAA52,MXAA54..LHD..(6F,8FC)..(G,M)..(GCC,GEN); MXAA5#..(M,X)..EUR202008-202210
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main62556-42070-C0iAXAH5#,AXAL5#..RHD..X..EUR; AXAL5#..(G,M)..ARL;AXAH5#..RHD..M..GEN; AXAL5#..X..ARL202008-202111
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62567-33040×2iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
main67913-42130-C0iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN; AXAH5#,AXAL5#..RHD..X..EUR; MXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)202008-202111
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#
main67914-42130-C0iAXAA54..M..ARL;MXAA54..G..EUR;AXAH52..(G,M)..ARL;AXAH5#..LHD..M..GEN;MXAA52..M..(ARL,GEN);AXAH54,MXAA52..JPP..G;MXAA54..CVT..(G,M)..GEN;AXAA54..(G,M)..(GCC,GEN,SA);AXAH52,AXAL5#..G..(EUR,GEN);AXAH54,MXAA54..M..(ARL,GCC);AXAA52,MXAA54..LHD..(6F,8FC)..(G,M)..(GCC,GEN); AXAA54..X..GEN;AXAA54..LHD..V..GEN;MXAA52..X..(GCC,SA);MXAA54..V..(GEN,SA);MXAA52..LHD..6F..X..GEN;MXAA52..CVT..X..(ARL,GEN);AXAH52,MXAA54..X..(ARL,GCC,GEN);AXAA5#,AXAH54..(V,X)..(ARL,GCC,SA); MXAA52..(M,X)..EUR;AXAH5#..P..(ARL,GEN);AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#,MXAA54..(M,P,V)..EUR202008-202210
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
67917CPLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#
main67917-42100-C0iAXAA5#,MXAA5#..(G,M)..(ARL,GCC,GEN,SA); MXAA54..JPP..(V,X);AXAA5#,MXAA52..(V,X)..(ARL,GCC,GEN); MXAA54..JPP..RUS202210-202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main67917-42110-C0iAXAH5#..(V,X)..(ARL,GCC,GEN,SA); AXAH54..G;AXAH54..M..(ARL,GCC);AXAH52,AXAL5#..G..EUR;AXAH52..(G,M)..(ARL,GEN); AXAH54..P..ARL;AXAH52..P..(ARL,GEN);AXAH54..(M,P,V,X)..(EUR,GEN);AXAH52,AXAL5#..(M,P,V,X)..EUR202210-202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
67917DCLIP, REAR DOOR SCUFF PLATE
main90467-05171×2iAXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAL5#..(G,M,P,V)..EUR;AXAH5#..X..(ARL,GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA)202008-202210
67918EPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#
main67918-42100-C0iAXAA54..V..GEN;MXAA54..RHD..V;AXAA54..LHD..X..GEN;MXAA54..JPP..LHD..(V,X);AXAA54,MXAA52..(V,X)..(ARL,GCC);AXAA52,MXAA52..LHD..(6F,8FC)..X..(GCC,GEN); MXAA54..RHD..(M,X);AXAA54..RHD..X..GEN;MXAA5#..LHD..6F..EUR;MXAA5#..LHD..6F..M..GEN;MXAA52..JPP..CVT..(G,M);MXAA52..CVT..X..(EUR,GEN,SA);MXAA54..JPP..LHD..CVT..(G,M);AXAA5#..(G,M)..(ARL,GCC,GEN,SA);MXAA52..RHD..6F..(M,X)..(EUR,GEN,SA)201811-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
main67918-42110-C0iAXAH5#..(V,X)..(ARL,GCC,GEN,SA); AXAH54..G;AXAH54..M..(ARL,GCC);AXAH52,AXAL5#..G..EUR;AXAH52..(G,M)..(ARL,GEN); AXAH54..P..ARL;AXAH52..P..(ARL,GEN);AXAH54..(M,P,V,X)..(EUR,GEN);AXAH52,AXAL5#..(M,P,V,X)..EUR202210-202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
7152SEAT BELT
9046718017
main90467-18017
39 parts on this diagram · 2 diagrams in section
INSIDE TRIM BOARD for Toyota RAV4 (JPP)
This section contains 39 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota RAV4 (JPP). Key components include: CLIP(FOR COWL SIDE TRIM), BOARD, COWL SIDE TRIM, RH, BOARD, COWL SIDE TRIM, LH, CLIP, NO.1(FOR COWL SIDE TRIM), AIRBAG ASSY, CURTAIN SHIELD, RH.
