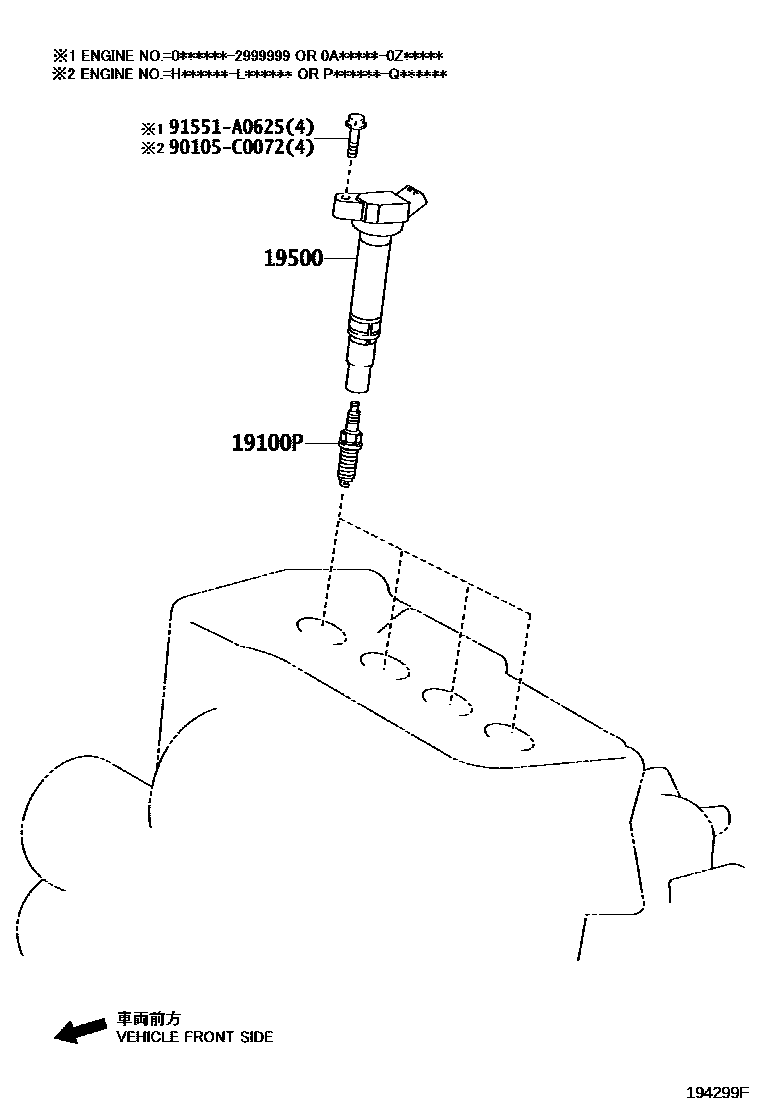

Toyota RAV4 (JPP) — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01233×4i201510-201810

SK16HR11,(J),*347,*265 OR *524

main90919-01259×4i201510-201810

FK16HR-A8,*347,*265 OR *524

main90919-C1001×4i201312-201412

SK16HR11,*347

main90919-C1008×4i201507-201510

SK16HR11,(L),*347

19500COIL ASSY, IGNITION

main90919-02256×4i201212-201510

*265 OR *524

main90919-C2004×4i201312-201510

*347

90105C0072

main90105-C0072

91551A0625

main91551-A0625

4 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota RAV4 (JPP)

This section contains 4 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota RAV4 (JPP). Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
