Toyota RAV4 (JPP) — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
SAUDI ARABIA SPEC
main48131-42A90iAXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH54,AXAL5#..ARL,EUR,GCC,GEN201811-202007
GR-S PACKAGE&FRONT SUSPENSION-HEIGHT NORMAL(GR-S)
48132SPRING, FRONT COIL, LH
GR-S PACKAGE&FRONT SUSPENSION-HEIGHT NORMAL(GR-S)
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-33110iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-33110iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
48331BBUMPER, FRONT SPRING, RH
main48331-33071iAXAA54..RHD;AXAH52..M,X;AXAA54..V..GCC;MXAA54..X..GEN;MXAA54..JPP..(M,V);MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);MXAA52..JPP..6F..(M,X);AXAA54..LHD..(G,M,X)..(GCC,GEN);AXAA52,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,EUR,GCC,GEN,SA)201811-202007
main48331-33101iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
48331CBUMPER, FRONT SPRING, LH
main48331-33071iAXAA54..RHD;AXAH52..M,X;AXAA54..V..GCC;MXAA54..X..GEN;MXAA54..JPP..(M,V);MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);MXAA52..JPP..6F..(M,X);AXAA54..LHD..(G,M,X)..(GCC,GEN);AXAA52,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,EUR,GCC,GEN,SA)201811-202007
main48331-33101iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-42690; MARK 48510-42690,SAUDI ARABIA SPEC
MARK 48510-42710
MARK 48510-42730
MARK 48510-0R170,REFER TO LAST PAGE; MARK 48510-0R170,SAUDI ARABIA SPEC,REFER TO LAST PAGE
MARK 48510-0R240,REFER TO LAST PAGE
MARK 48510-42700; MARK 48510-42700,SAUDI ARABIA SPEC
MARK 48510-42480,"OFFROAD PACKAGE"*(B)
MARK 48510-42B10,GR-S PACKAGE&FRONT SUSPENSION-HEIGHT NORMAL(GR-S)
MARK 48510-0R180,SAUDI ARABIA SPEC,REFER TO LAST PAGE
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-42690,REFER TO LAST PAGE; MARK 48520-42690,SAUDI ARABIA SPEC,REFER TO LAST PAGE
main48520-80634iAXAA54..LHD..V;AXAA54..(M,V,X)..ARL;MXAA54..JPP..LHD..6F;MXAA54..CVT..(EUR,GEN,SA);AXAA54..(G,M,X)..(GCC,GEN,SA)202008-202210
MARK 48520-42710,REFER TO LAST PAGE
MARK 48520-42730
MARK 48520-0R170,REFER TO LAST PAGE; MARK 48520-0R170,SAUDI ARABIA SPEC,REFER TO LAST PAGE
MARK 48520-0R240,REFER TO LAST PAGE
MARK 48520-42700,SAUDI ARABIA SPEC,REFER TO LAST PAGE
MARK 48520-42480,"OFFROAD PACKAGE"*(B)
MARK 48520-42B10,GR-S PACKAGE&FRONT SUSPENSION-HEIGHT NORMAL(GR-S)
MARK 48520-0R180,SAUDI ARABIA SPEC,REFER TO LAST PAGE
48553FCAP
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
main48559-42010iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
main48559-42010iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90177-14007iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
main48619-42040iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-33030iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
main48820-42040iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48826PROTECTOR, FRONT STABILIZER BAR
main48826-42010iMXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAA5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202210-202310
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-33040iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
9011910994
main90119-10994
9017810029
main90178-10029
9046823005
main90468-23005

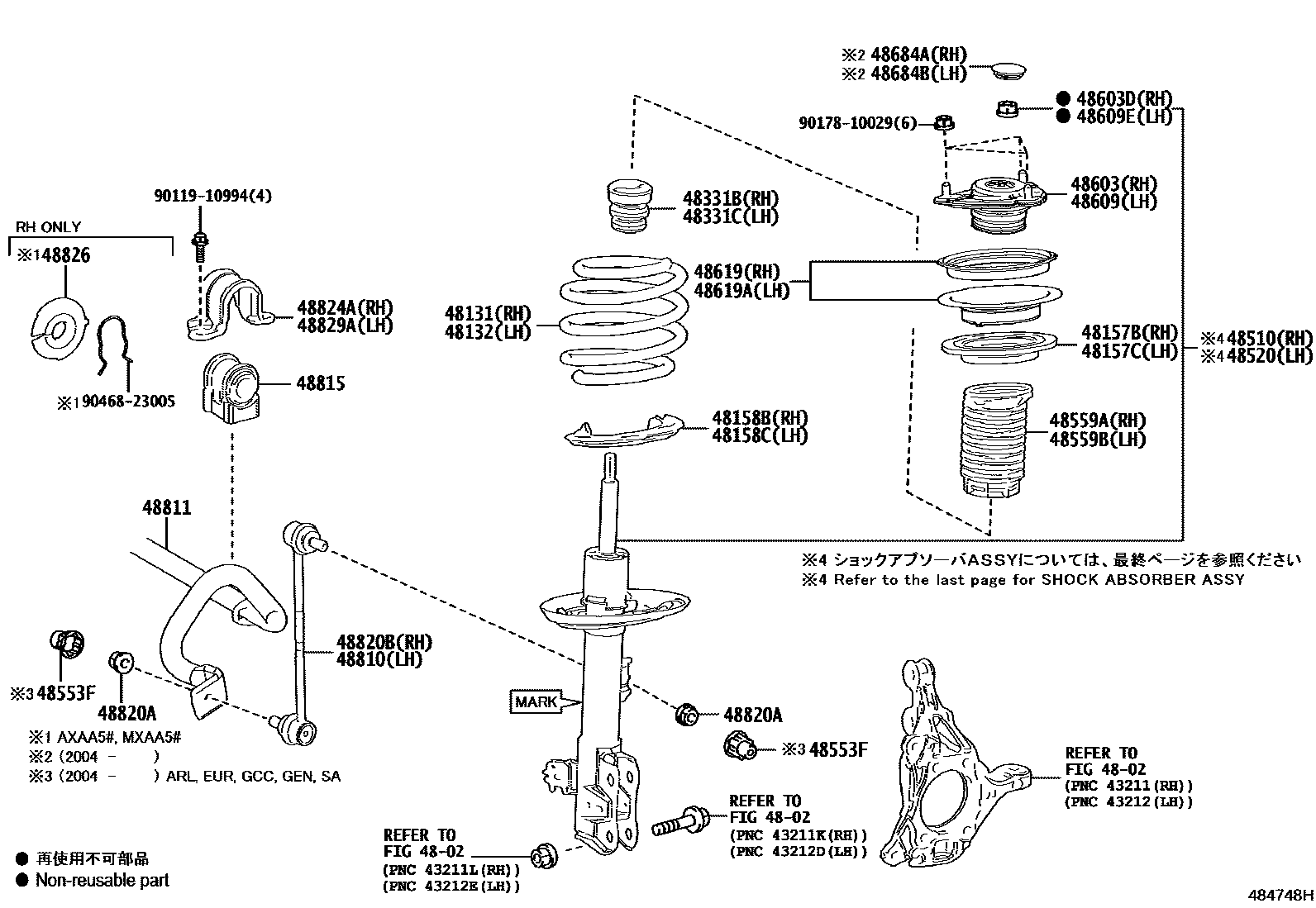

33 parts on this diagram · 2 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota RAV4 (JPP)
This section contains 33 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota RAV4 (JPP). Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH.
