Toyota RAV4 (JPP) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

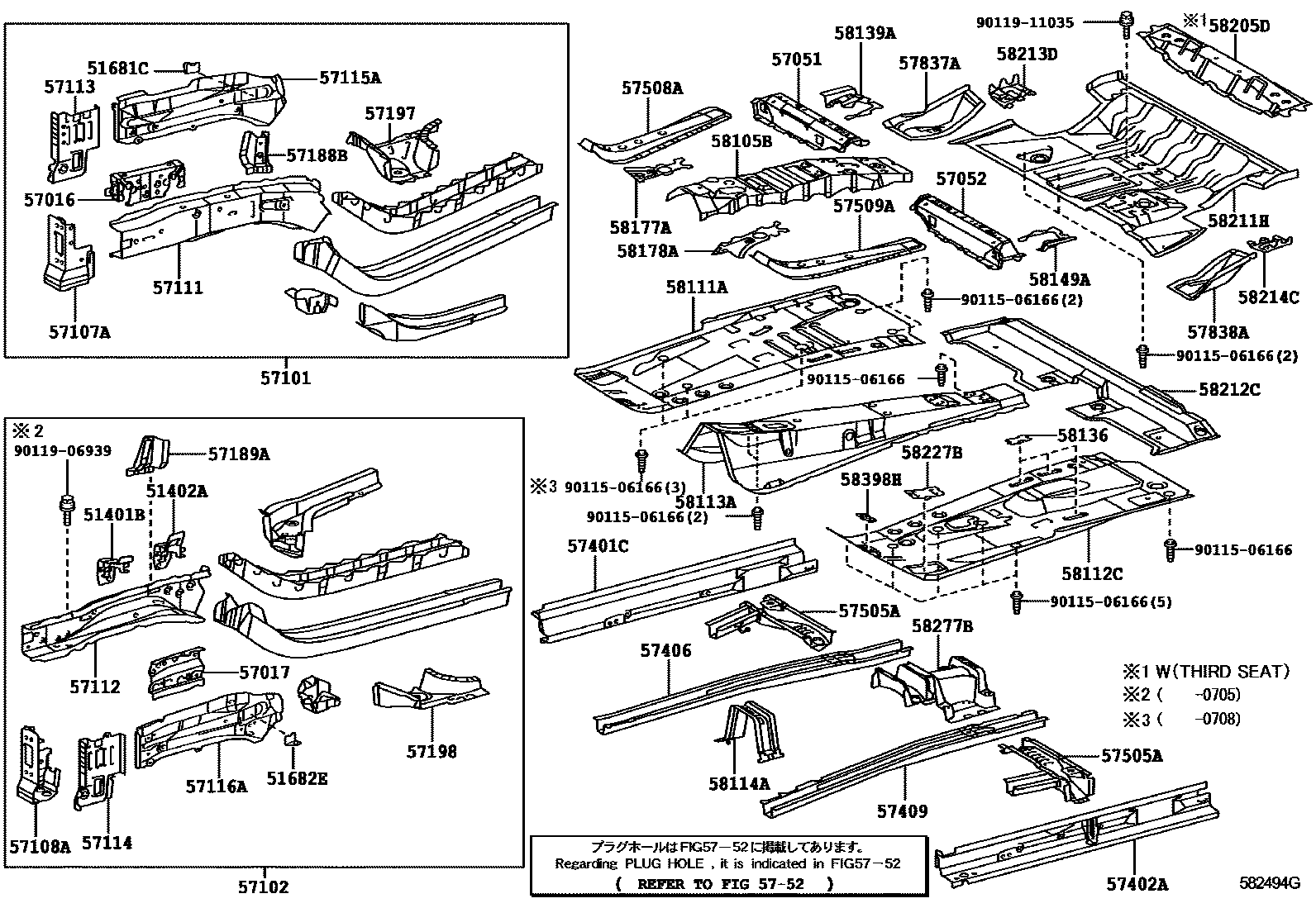

Parts diagram
51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING
main51401-42010i200808-201212
51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
main51402-42010i200511-200808
51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
main51681-12080i200511-200808
51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
main51682-12080i200511-200808
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
main57016-12110i200511-200808
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
main57017-12070i200511-200808
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
main57051-42010i200511-200808
main57051-42011i201201-201212
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
main57052-42010i200511-200808
main57052-42011i201201-201212
57101MEMBER SUB-ASSY, FRONT SIDE, RH
main57101-42110i200511-200808
sub57111-42900
sub57043-42010
sub57053-42011
sub57191-42060
57102MEMBER SUB-ASSY, FRONT SIDE, LH
main57102-42090i200511-200808
sub57112-42900
sub57044-42010
sub57054-42010
sub57192-42060
57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
main57107-42030i200511-200808
57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
main57108-42030i200511-200808
sub57108-42031
57111MEMBER, FRONT SIDE, RH
main57111-12230i200808-201212
main57111-42060i200511-200704
57112MEMBER, FRONT SIDE, LH
main57112-12190i200705-200808
main57112-42060i200511-200705
57113EXTENSION, FRONT SIDE MEMBER, RH
main57113-42050i200511-200808
57114EXTENSION, FRONT SIDE MEMBER, LH
main57114-42050i200808-201105
main57114-42051i201106-201212
sub57114-78010
57115APLATE, FRONT SIDE MEMBER, OUTER RH
main57115-12090i200511-200808
sub57025-12010
57116APLATE, FRONT SIDE MEMBER, OUTER LH
main57116-12090i200705-200808
sub57116-12091
main57116-42030i200511-200705
sub57116-12091
57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH
main57188-42030i200511-200808
57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
main57189-42020i200511-200808
57197BOX, TORQUE, FRONT RH
main57197-42060i200511-200808
57198BOX, TORQUE, FRONT LH
main57198-42060i200511-200808
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
main57401-42121i200511-200808
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
main57402-42121i200511-200808
57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
main57406-42010i200511-200808
sub57406-42011
57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
main57409-42010i200808-201212
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
main57505-42110i200511-200808
RH
main57506-42050i200511-200808
LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
main57508-42010i200511-200808
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
main57509-42010i200808-201212
5752
57837AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
main57837-42020i200511-200808
57838AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
main57838-42010i200511-200808
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
main58105-42011i200511-200808
main58105-42012i201205-201212
58111APAN, FRONT FLOOR, RH
main58111-42200i200607-200808
main58111-42201i201201-201212
main58111-42918i200511-200607
58112CPAN, FRONT FLOOR, LH
main58112-42010i200808-201201
main58112-42011i201201-201212
main58112-42901i200511-200607
58113APANEL, FRONT FLOOR, CENTER
main58113-42010i200808-201212
sub58113-42011
58114AREINFORCEMENT, FRONT FLOOR PANEL
main58114-42040i200511-200808
main58114-42041i201210-201212
58136COVER, FRONT FLOOR HOLE
main58136-42020×6i200511-200808
58139APLATE, FRONT FLOOR SIDE, REAR RH
main58139-42010i200511-200808
58149APLATE, FRONT FLOOR SIDE, REAR LH
main58149-42010i200511-200808
main58149-42011i201201-201212
58177AEXTENSION, FRONT FLOOR PANEL, RH
main58177-42010i200511-200808
58178AEXTENSION, FRONT FLOOR PANEL, LH
main58178-42010i200511-200808
58205DREINFORCE SUB-ASSY, REAR SEAT HINGE
main58205-42010i200511-200808
THIRD SEAT-WITH(2PERSONS)
58211HPAN, CENTER FLOOR
main58211-42010i200511-200612
sub90333-30008
main58211-42011i200612-200808
58212CPAN, CENTER FLOOR, FRONT
main58202-42010i200511-200808
58213DREINFORCEMENT, CENTER FLOOR PANEL
main58213-42010i200511-200808
58214CREINFORCEMENT, CENTER FLOOR PANEL, LH
main58214-42010i200511-200808
58227BPLATE, FRONT FLOOR PANEL SIDE, RH
main58227-42010×2i200511-200808
58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
main58209-42030i200511-200808
sub58209-48010
58398HCOVER, FLOOR UNDER, NO.1
main58398-42010×2i200511-200808
9011506166
main90115-06166
9011906939
main90119-06939
9011911035
main90119-11035
