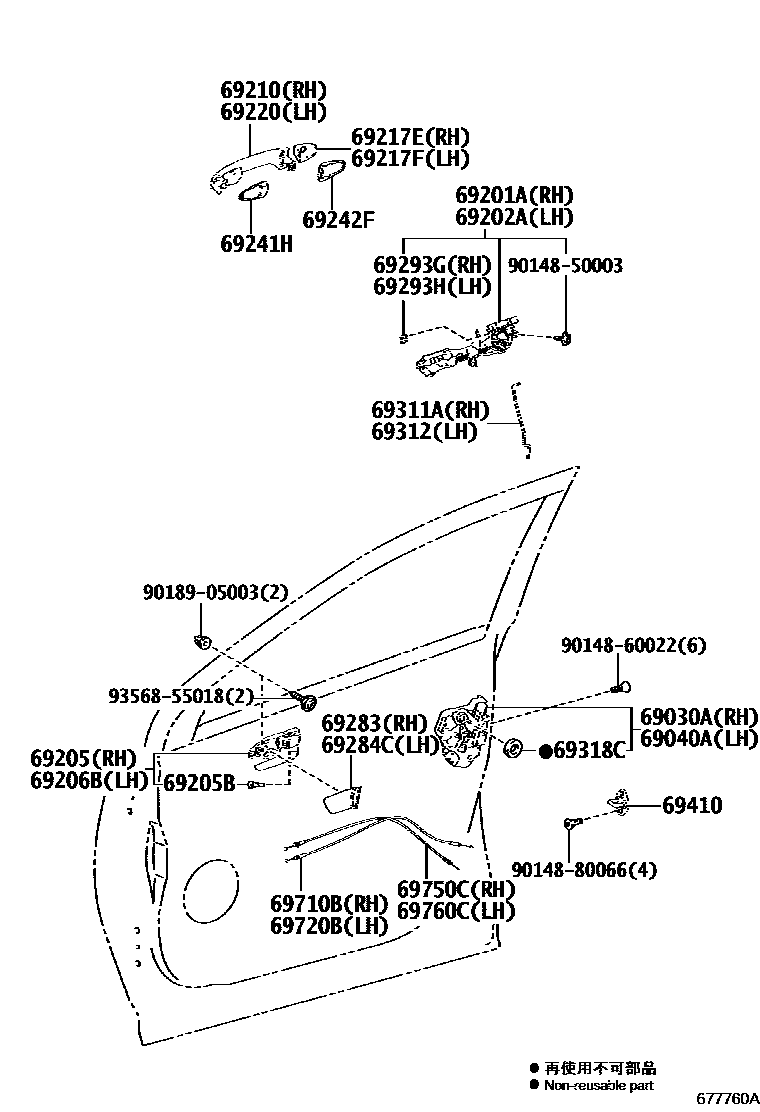

Toyota RAV4 (JPP) — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
KEY PLATE-MASTER 2 FOR SMART,SUPER WHITE 2,040; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,SUPER WHITE 2,040; SUPER WHITE 2,040
KEY PLATE-MASTER 2 FOR SMART,WHITE PEARL CS.,070; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,WHITE PEARL CS.,070; WHITE PEARL CS.,070
KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1F7; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1F7; SILVER ME.,1F7
GRAY ME.,1G3; KEY PLATE-MASTER 2 FOR SMART,GRAY ME.,1G3; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,GRAY ME.,1G3
KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1D6; POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1D6; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1D6; SILVER ME.,1D6
BLACK MC.,209; KEY PLATE-MASTER 2 FOR SMART,BLACK MC.,209; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BLACK MC.,209
BLACKISH AGEHA GF.,221; KEY PLATE-MASTER 2 FOR SMART,BLACKISH AGEHA GF.,221; POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BLACKISH AGEHA GF.,221; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BLACKISH AGEHA GF.,221
KEY PLATE-MASTER 2 FOR SMART,RED M.M.,3R3; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,RED M.M.,3R3; RED M.M.,3R3
DK.RED M.M.,3T0; KEY PLATE-MASTER 2 FOR SMART,DK.RED M.M.,3T0; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,DK.RED M.M.,3T0
KEY PLATE-MASTER 2 FOR SMART,RED MC.,3T3; POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,RED MC.,3T3; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,RED MC.,3T3; RED MC.,3T3
BRONZE M.M.,4T3; KEY PLATE-MASTER 2 FOR SMART,BRONZE M.M.,4T3; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BRONZE M.M.,4T3
DK.BROWN ME.,4U5; KEY PLATE-MASTER 2 FOR SMART,DK.BROWN ME.,4U5; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,DK.BROWN ME.,4U5
KEY PLATE-MASTER 2 FOR SMART,ORANGE ME.,4R8; ORANGE ME.,4R8; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,ORANGE ME.,4R8
BLUE ME.,8X7; KEY PLATE-MASTER 2 FOR SMART,BLUE ME.,8X7; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BLUE ME.,8X7
PLATED
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR,DK.GREEN MC.,6V4
WIRELESS DOOR LOCK-SMART ENTRY,GRAYISH BLUE M.M.,8V5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
KEY PLATE-MASTER 2 FOR SMART,SUPER WHITE 2,040; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,SUPER WHITE 2,040; SUPER WHITE 2,040
KEY PLATE-MASTER 2 FOR SMART,WHITE PEARL CS.,070; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,WHITE PEARL CS.,070; WHITE PEARL CS.,070
KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1F7; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1F7; SILVER ME.,1F7
GRAY ME.,1G3; KEY PLATE-MASTER 2 FOR SMART,GRAY ME.,1G3; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,GRAY ME.,1G3
KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1D6; POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1D6; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,SILVER ME.,1D6; SILVER ME.,1D6
BLACK MC.,209; KEY PLATE-MASTER 2 FOR SMART,BLACK MC.,209; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BLACK MC.,209
BLACKISH AGEHA GF.,221; KEY PLATE-MASTER 2 FOR SMART,BLACKISH AGEHA GF.,221; POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BLACKISH AGEHA GF.,221; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BLACKISH AGEHA GF.,221
KEY PLATE-MASTER 2 FOR SMART,RED M.M.,3R3; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,RED M.M.,3R3; RED M.M.,3R3
DK.RED M.M.,3T0; KEY PLATE-MASTER 2 FOR SMART,DK.RED M.M.,3T0; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,DK.RED M.M.,3T0
KEY PLATE-MASTER 2 FOR SMART,RED MC.,3T3; POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,RED MC.,3T3; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,RED MC.,3T3; RED MC.,3T3
BRONZE M.M.,4T3; KEY PLATE-MASTER 2 FOR SMART,BRONZE M.M.,4T3; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BRONZE M.M.,4T3
DK.BROWN ME.,4U5; KEY PLATE-MASTER 2 FOR SMART,DK.BROWN ME.,4U5; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,DK.BROWN ME.,4U5
KEY PLATE-MASTER 2 FOR SMART,ORANGE ME.,4R8; ORANGE ME.,4R8; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,ORANGE ME.,4R8
BLUE ME.,8X7; KEY PLATE-MASTER 2 FOR SMART,BLUE ME.,8X7; POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)&KEY PLATE-MASTER 2 FOR SMART,BLUE ME.,8X7
PLATED
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
DK.RED M.M.,3T0
RED MC.,3T3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
BLUE ME.,8X7
WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR,DK.GREEN MC.,6V4
WIRELESS DOOR LOCK-SMART ENTRY,GRAYISH BLUE M.M.,8V5
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9356855018
main93568-55018
30 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota RAV4 (JPP)
This section contains 30 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RAV4 (JPP). Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
