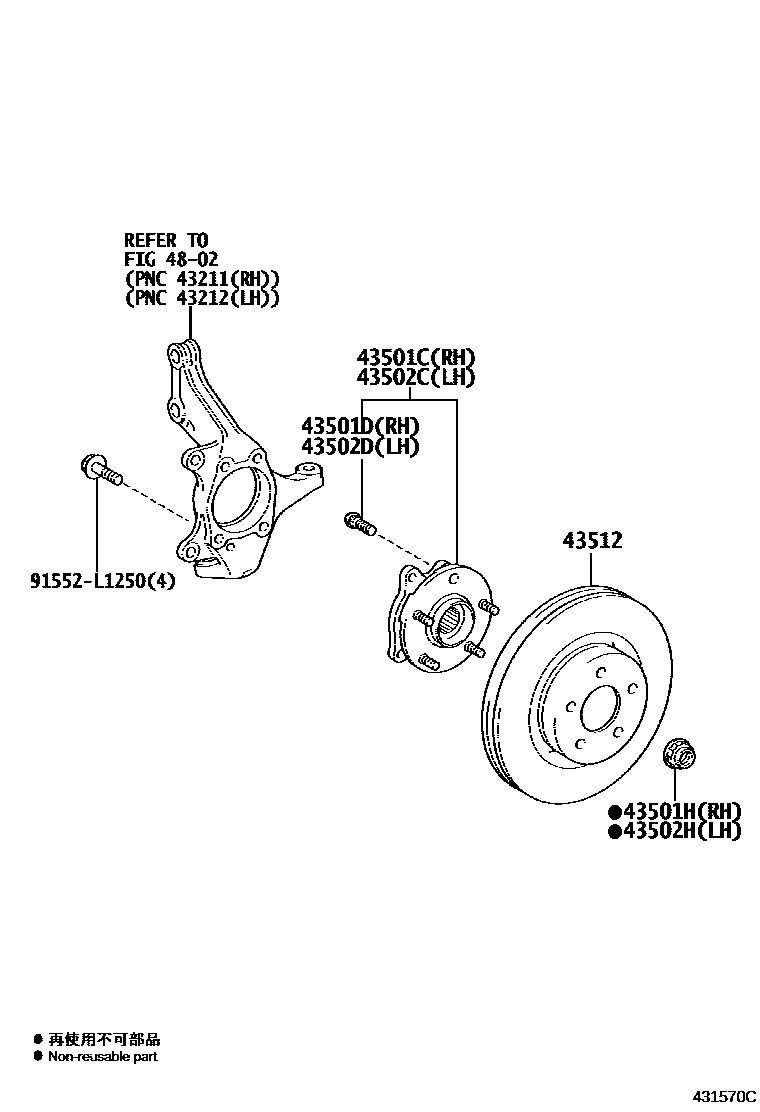

Toyota RAV4 (JPP) — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010i200511-200808

main43550-42020i200808-201212

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200511-200808

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200511-200808

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010i200511-200808

main43550-42020i200601-200808

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200511-200808

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200511-200808

43512DISC, FRONT

main43512-42040×2i200808-201212

main43512-42050×2i200601-200712

main43512-42080×2i200801-200802

main43512-42090×2i200801-200802

THIRD SEAT-WITH(2PERSONS)

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1250

main91552-L1250

9 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota RAV4 (JPP)

This section contains 9 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota RAV4 (JPP). Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH).
