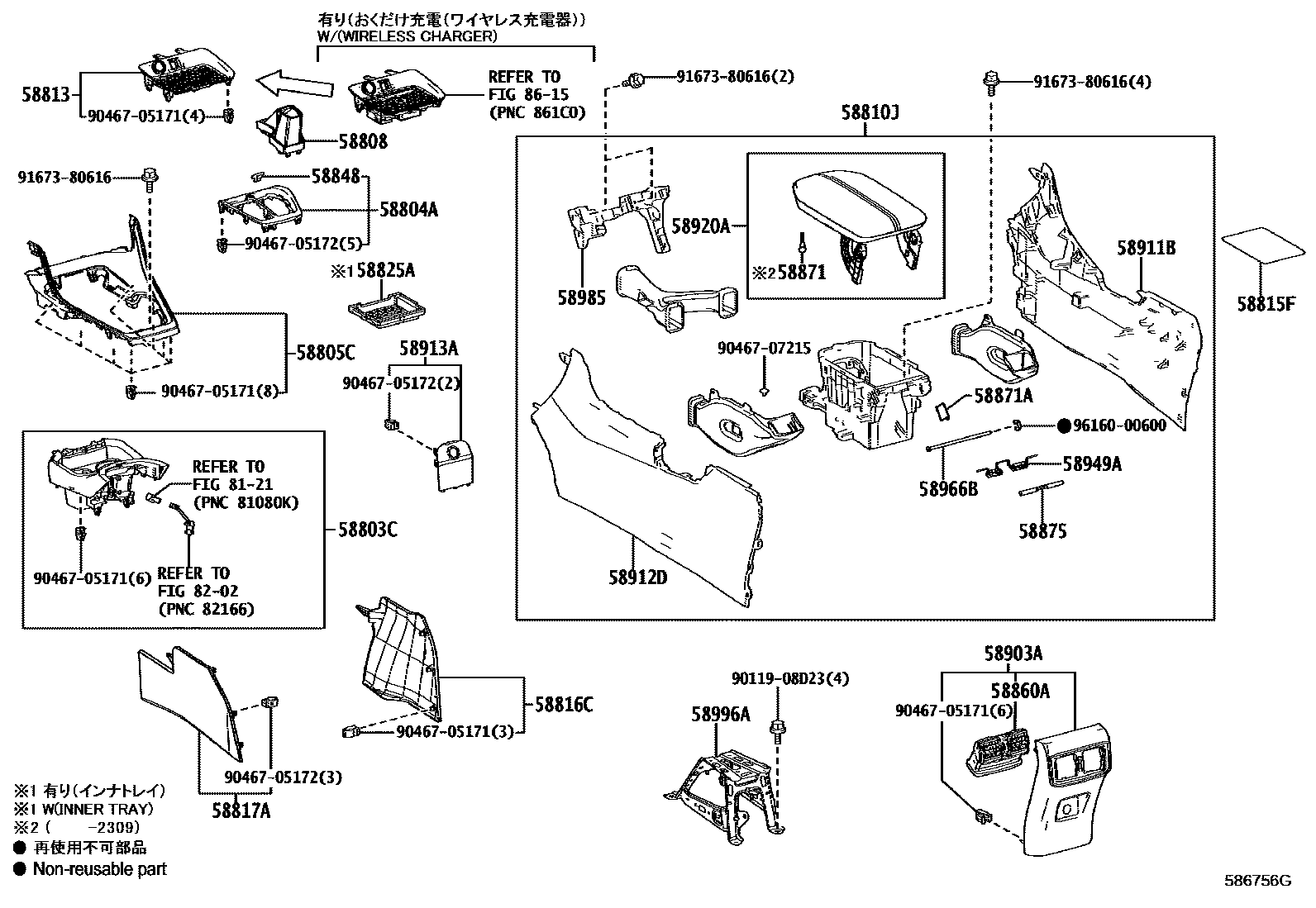

Toyota RAV4 (JPP) — CONSOLE BOX & BRACKET

0001 1W(REAR DUCT) 0002 1W/O(REAR DUCT)

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-42030-C3iAXAA5#,AXAH5#,AXAL54..M202008-202111

BLACK,TRIM1#,2#,4#

main58803-42050-C4iAXAA5#,AXAH54,AXAL54..G201811-202007

DK.BROWN,TRIM1#,2#,4#

main58803-42050-C5iAXAA54..V201811-202007

ORANGE,TRIM2#,4#

main58803-42090-C0iAXAA5#,AXAH5#,AXAL54..M202112-202210

BLACK,TRIM1#,2#,4#

main58803-42100-C0iAXAH54,AXAL54..P202112-202210

BLACK,TRIM2#

main58803-42100-C2iAXAA5#,AXAH54,AXAL54..G202112-202210

BLACK/DK.BROWN,TRIM1#,2#,4#

main58803-42100-C3iAXAA54..V202210-202310

BLACK/ORANGE,TRIM2#,4#

main58803-42050-C3iAXAH54,AXAL54..M201902-202007

HV EMOTIONAL PACKAGE,BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-42460iAXAA5#,AXAH5#,AXAL54201811-202007

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-42080iAXAA5#,AXAH5#,AXAL54202008-202210

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-42110-C0iAXAH54,AXAL54..P,S202210-202310

BLACK,TRIM1#,2#,4#

58810JBOX ASSY, CONSOLE

main58810-42020-C0supersedes 58810-42010-C0iAXAA5#,AXAH5#,AXAL54..M202008-202210

BLACK,TRIM1#,2#,4#

main58810-42030-C1iAXAA54..V202008-202210

BLACK,TRIM1#,2#,4#

58813BOX, CONSOLE, UPPER

main58813-42060-C2supersedes 58813-42060-C2iAXAA5#,AXAH5#,AXAL54..M201811-202007

BLACK,TRIM1#,2#,4#

main58813-42040-C3iAXAA5#,AXAH54,AXAL54..M202008-202111

XLE PACKAGE,BLACK,TRIM1#,2#,4#

sub58813-42041

58815FCARPET, CONSOLE BOX

main58815-42040iAXAA5#,AXAH5#,AXAL54202310

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-42020-C0iAXAA5#,AXAH5#,AXAL54..G,M202008-202210

BLACK,TRIM1#,2#,4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-42020-C0iAXAL54..G,M;AXAA5#,AXAH5#..G,M,X201811-202007

BLACK,TRIM1#,2#,4#

main58817-42021-C0iAXAA5#,AXAH5#,AXAL54..G,M202210-202310

BLACK,TRIM1#,2#,4#

58825APOCKET, CONSOLE BOX

main58825-42030iAXAA5#,AXAH54,AXAL54..G201811-202007

58848COVER, SHIFT LEVER HOLE

main58848-42010iAXAA5#,AXAH5#,AXAL54201811-202007

58860AREGISTER ASSY, CONSOLE BOX

main58860-48050-C2iAXAH54;AXAA5#,AXAH52,AXAL54..G,M201811-202007

BLACK,TRIM1#,2#,4#

58871CUSHION, CONSOLE BOX

main90541-03078×4iAXAA5#,AXAH5#,AXAL54201811-202007

58871ACUSHION, CONSOLE BOX, NO.2

main58871-42040iAXAA5#..X201811-202007

AUDIO-6SPEAKER 8INCH XM

58875SPACER, CONSOLE BOX

main58875-42010iAXAA5#,AXAH5#,AXAL54201811-202007

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-42050-C0supersedes 58903-42070-C0iAXAA5#..X202112-202210

BLACK,TRIM2#,4#

main58903-42060-C0supersedes 58903-42050-C0iAXAA5#,AXAH5#,AXAL54..M202112-202210

BLACK,TRIM1#,2#,4#

58911BPANEL, BOX, NO.1

main58911-42060-C0iAXAA5#,AXAH5#,AXAL54..G,M202310

BLACK,TRIM1#,2#,4#

58912DPANEL, BOX, NO.2

main58912-42050-C0iAXAA5#,AXAH5#,AXAL54..G,M202210-202310

BLACK,TRIM1#,2#,4#

58913APANEL, BOX, NO.3

main58913-42010supersedes 58913-42040iAXAA5#,AXAH54,AXAL54..X201811-202007

AUDIO-6SPEAKER 8INCH XM

main58913-42050iAXAA5#,AXAH5#,AXAL54202112-202210

main58913-42030supersedes 58913-42010iAXAA5#,AXAH5#,AXAL54..M201910-202007

AUDIO JACK-FRONT:USB3

58920AARMREST ASSY, REAR CONSOLE

main58920-42010-C0iAXAA5#,AXAH5#,AXAL54..M202310

BLACK,TRIM1#,2#,4#

main58920-42020-C1iAXAA54..V202310

BLACK,TRIM1#,2#,4#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-42040iAXAA5#,AXAH5#,AXAL54..M,X201811-202007

main58949-42050iAXAA5#,AXAH54,AXAL54..M202310

XLE PACKAGE

58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER

main58966-42020iAXAA5#,AXAH5#,AXAL54202310

58985RETAINER, CONSOLE BOX

main58985-42060iAXAA5#,AXAH5#,AXAL54201811-202007

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-42080iAXAA5#,AXAH5#,AXAL54201811-202007

main58996-42081iAXAA5#,AXAH5#,AXAL54202310

8121

8202

8615

9011908D23

main90119-08D23

9046705171

main90467-05171

9046705172

main90467-05172

9046707215

main90467-07215

9167380616

main91673-80616

9616000600

main96160-00600

33 parts on this diagram · 2 diagrams in section
