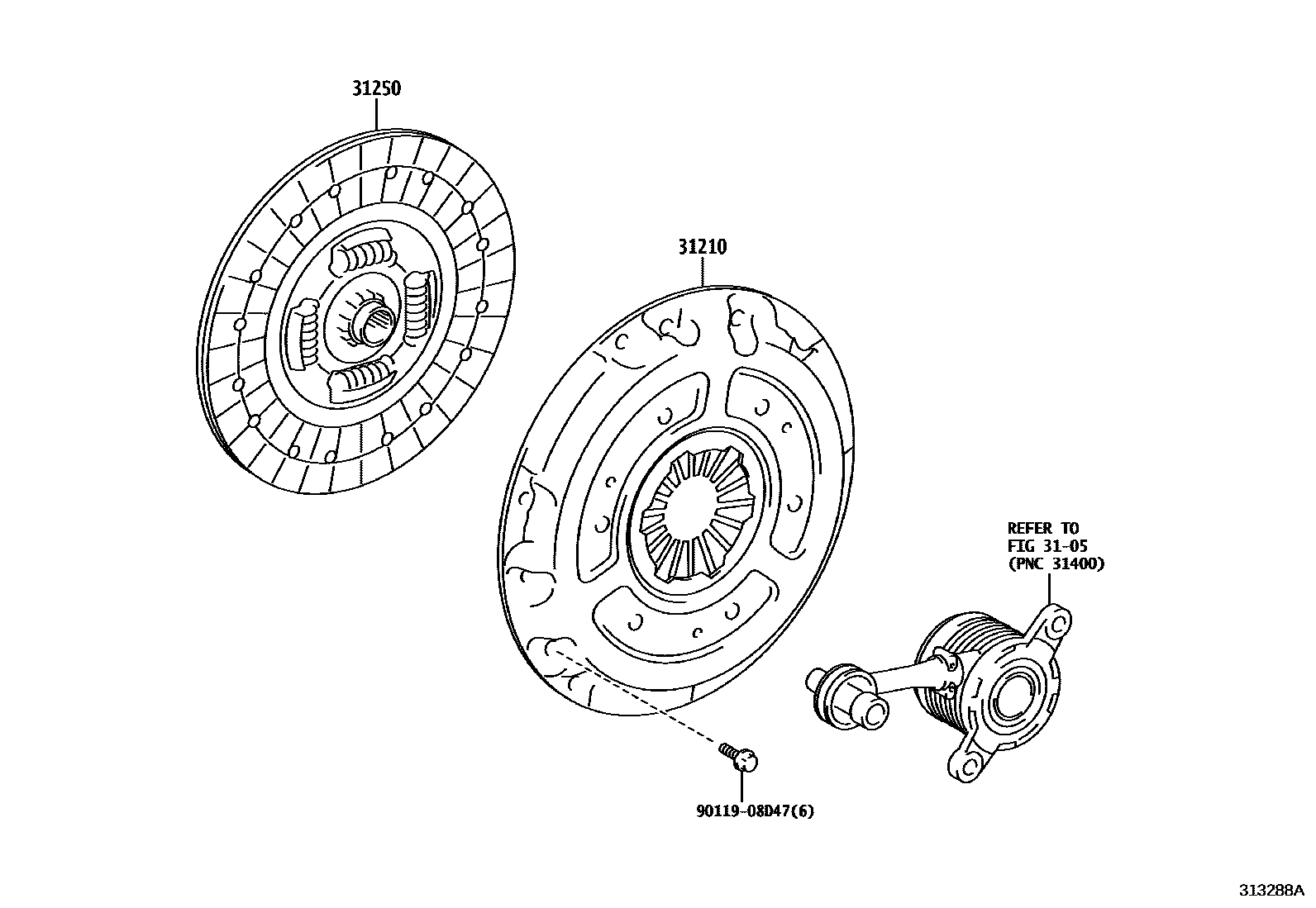

Toyota RAV4 (JPP) — CLUTCH & RELEASE FORK

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31210COVER ASSY, CLUTCH

main31210-42060i201811-201909

31250DISC ASSY, CLUTCH

main31250-42040i201811-201909

9011908D47

main90119-08D47

4 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota RAV4 (JPP)

This section contains 4 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota RAV4 (JPP). Key components include: CLUTCH RELEASE CYLINDER, COVER ASSY, CLUTCH, DISC ASSY, CLUTCH.
