Toyota RAV4 (JPP) — ARMREST & VISOR

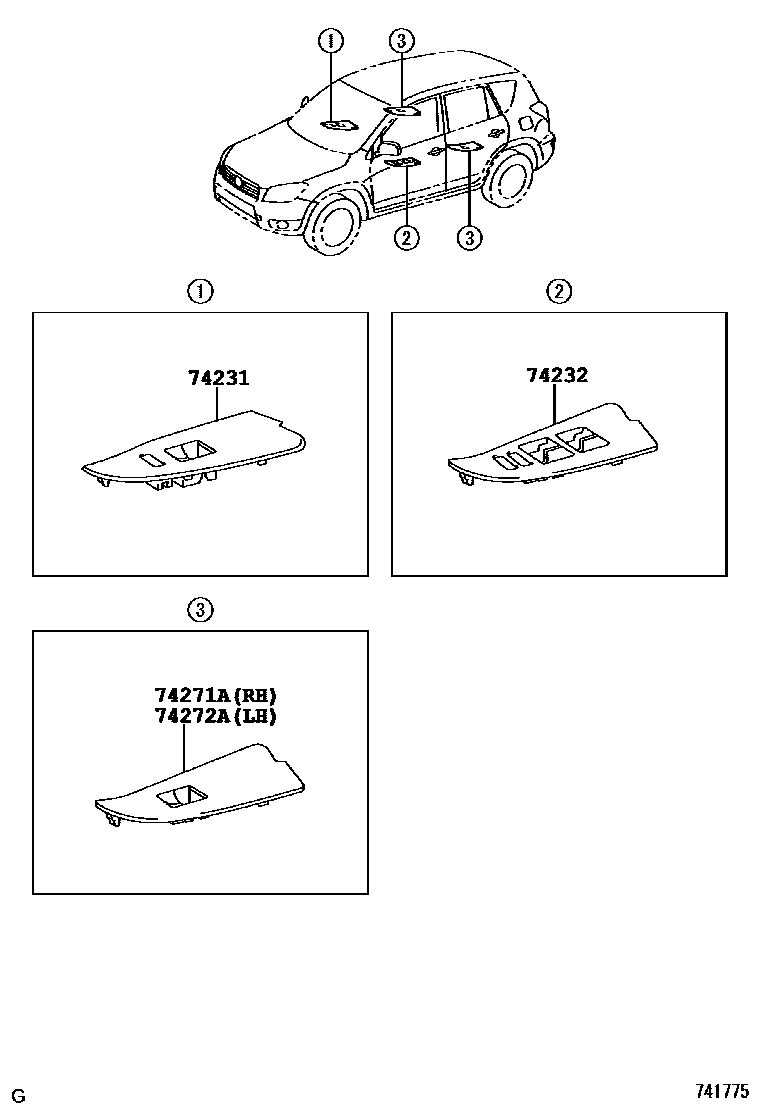

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-42100-B0i200511-201212
DK.GRAY,TRIM1#,4#
main74231-42100-B0i200511-201212
DK.GRAY,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-42070-B0i200511-201212
DK.GRAY,TRIM1#
main74232-42070-B0i200511-201212
DK.GRAY,TRIM1#,4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-42010-B0i200511-201212
DK.GRAY,TRIM1#
main74271-42010-B0i200511-201212
DK.GRAY,TRIM1#,4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-42010-B0i200511-201212
DK.GRAY,TRIM1#
main74272-42010-B0i200511-201212
DK.GRAY,TRIM1#,4#

4 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota RAV4 (JPP)

This section contains 12 genuine Toyota parts for the ARMREST & VISOR system of the Toyota RAV4 (JPP). Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
