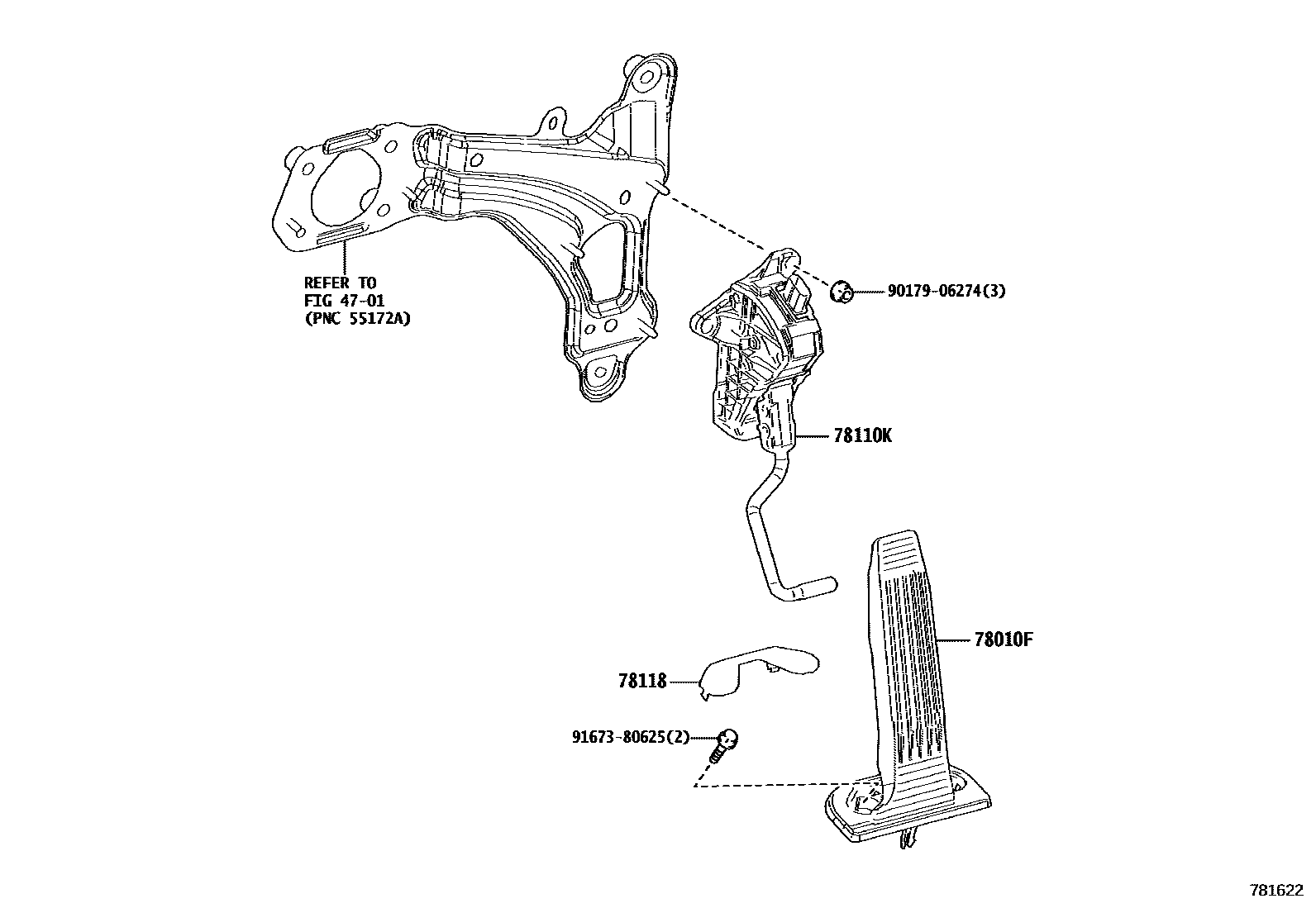

Toyota RAV4 (JPP) — ACCELERATOR LINK

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-33060iAXAA5#,AXAH5#,AXAL54202008-202111

main78101-33061iAXAA5#,AXAH5#,AXAL54202310

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33130iAXAA5#,AXAH5#,AXAL54201811-202007

main78110-33131iAXAA5#,AXAH5#,AXAL54202310

main78110-33140iAXAA52..M202008-202011

KOREA SPEC

main78110-33141iAXAA52..M202011-202112

KOREA SPEC

78118PAD, ACCELERATOR PEDAL

main78117-33020iAXAA5#,AXAH5#,AXAL54201811-202007

9017906274

main90179-06274

9167380625

main91673-80625

6 parts on this diagram · 1 diagram in section
