Toyota RAV4 (JPP) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
main85381-30220×2iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
ANGLE 0
main85381-30230×2iMXAA54..GCC,GEN,SA;MXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA)202210-202310
ANGLE -2
ANGLE +2
8504REAR WASHER
85301INLET SUB-ASSY, WASHER
main85301-42040iMXAA54..CVT..G..(GCC,GEN);MXAA54..(M,V,X)..(GCC,GEN,SA);MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAA5#,AXAH5#,MXAA52..(ATM,CVT)..(ARL,GCC,GEN,SA)201811-202004
85301BCLIP, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
main85315-42460iAXAH52..G..ARL;MXAA52..6F..(M,X)..(ARL,GEN,SA);AXAH52,MXAA54..LHD..CVT..G..(GCC,GEN);AXAH52,MXAA54..(M,V,X)..(ARL,GCC,GEN,SA);AXAA5#,AXAH54,AXAL5#,MXAA52..(ATM,CVT)..(ARL,GCC,GEN,SA)201811-202007
main85355-42191iAXAH5#,AXAL5#..G..EUR;AXAH5#,AXAL5#..LHD..(M,P,V)..EUR; AXAH5#,AXAL5#..LHD..(G,M,P,V)..EUR; AXAH5#,AXAL5#..LHD..G..EUR; AXAH5#,AXAL5#..X..EUR; MXAA54..JPP..RUS202210-202310
COLD AREA SPEC; COLD AREA SPEC&FRONT FOG & DRIVING LAMP-WITH(LED); COLD AREA SPEC,WITH(REAR SEAT HEATER); COLD AREA SPEC,WITH(STEERING HEATER); COLD AREA SPEC,WITHOUT(REAR SEAT HEATER)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=590); L=1450(*H,L=590),COLD AREA SPEC
85371ZCLAMP, WASHER HOSE
main90469-07011×2iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1690
L=1690
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main85370-42330iAXAH5#,AXAL5#..LHD..(G,M,P,V)..EUR; AXAH5#,AXAL5#..LHD..G..EUR; MXAA54..JPP..RUS202310
L=505; L=505,COLD AREA SPEC,WITH(REAR SEAT HEATER); L=505,COLD AREA SPEC,WITH(STEERING HEATER); L=505,COLD AREA SPEC,WITHOUT(REAR SEAT HEATER)
L=1450(*H,L=500)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=470)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
main82711-35520iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH5#..RHD..M..GEN;AXAA54..RHD..V..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL54..RHD..X..EUR;AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111
85387BCLAMP, WASHER, NO.3
main85371-12040iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH5#..RHD..M..GEN;AXAA54..RHD..V..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL54..RHD..X..EUR;AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
9011906767
main90119-06767

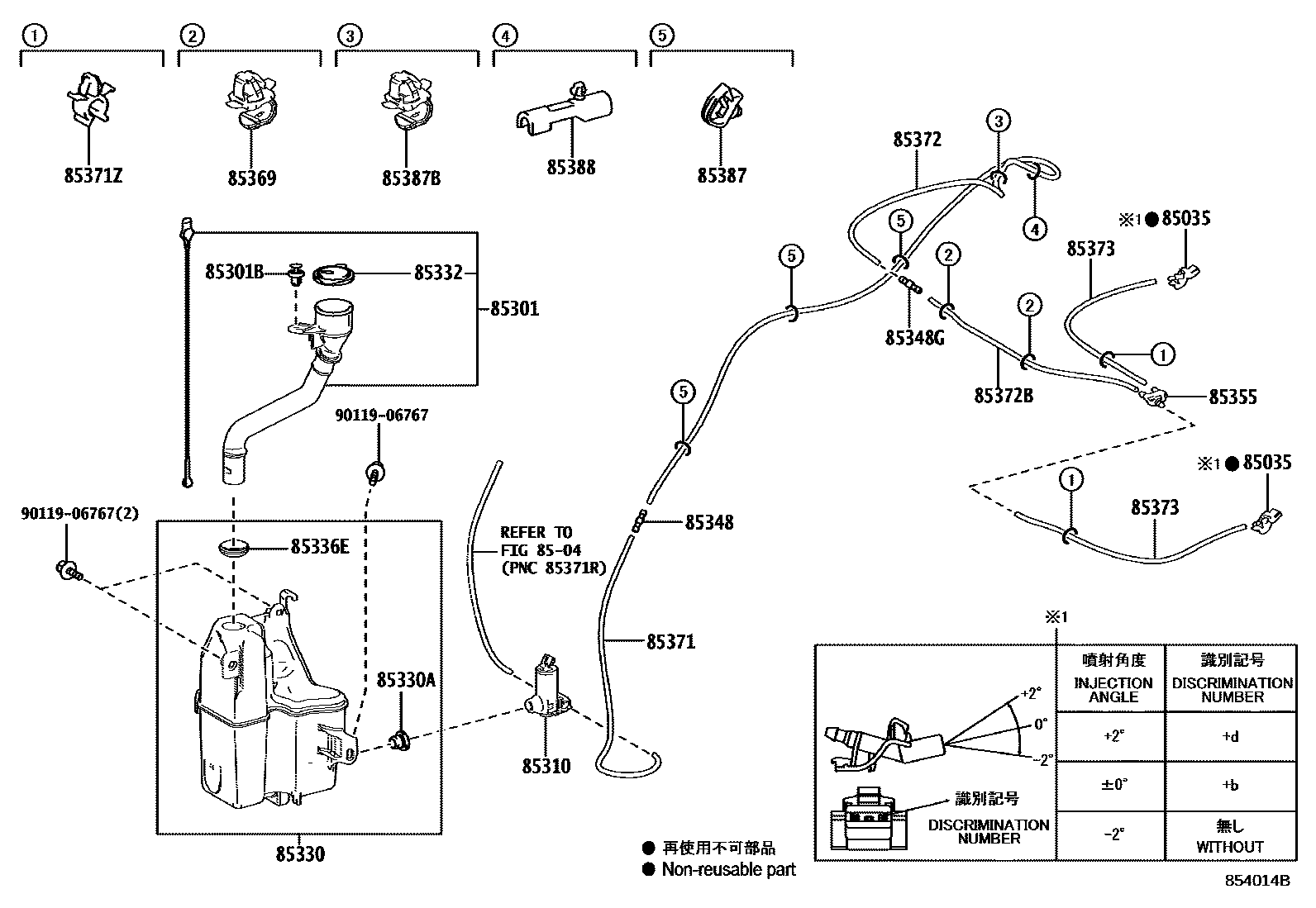

22 parts on this diagram · 9 diagrams in section
WINDSHIELD WASHER for Toyota RAV4 (JPP)
This section contains 27 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota RAV4 (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, CLIP, WASHER.
