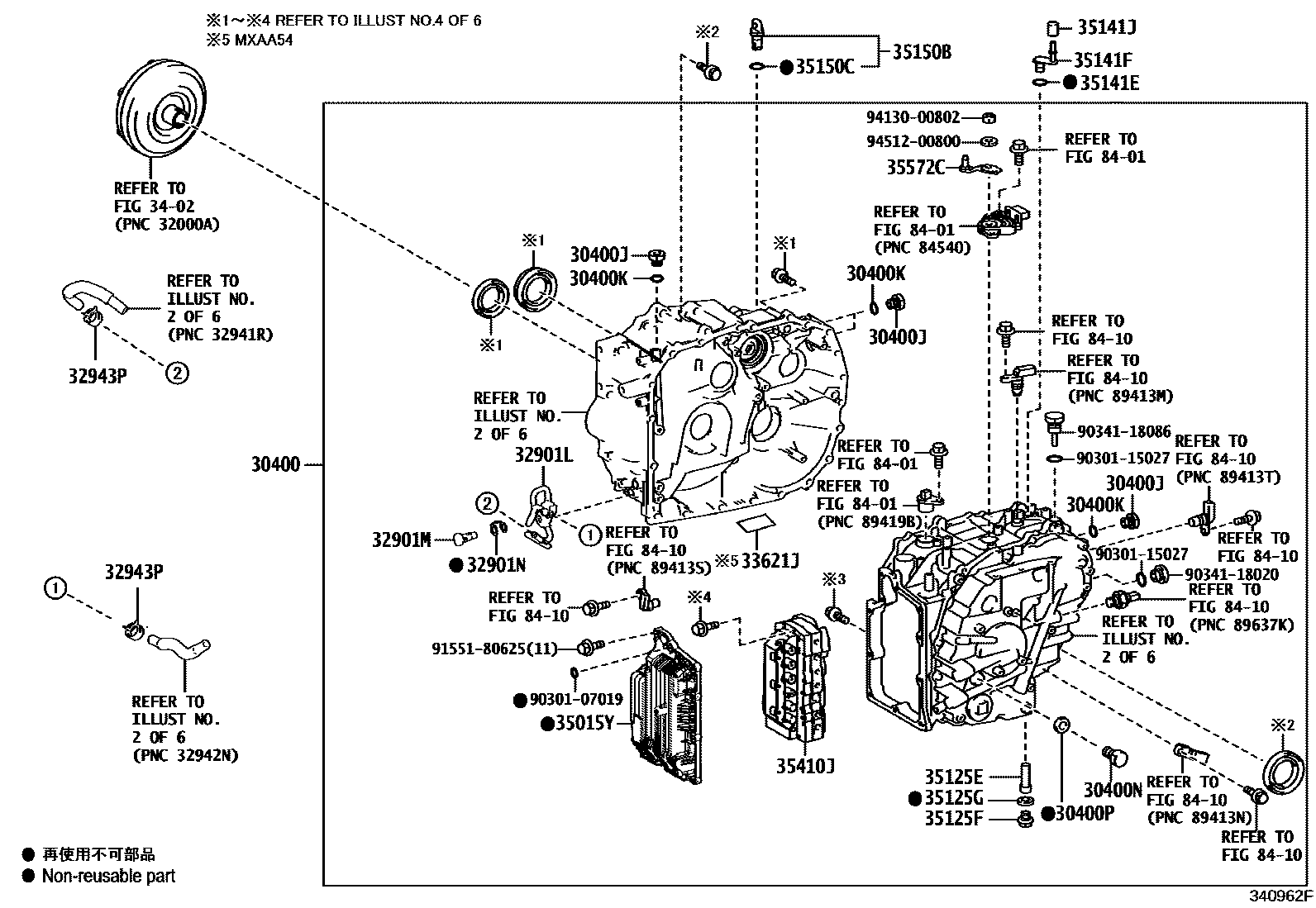

Toyota RAV4 (JPP) — TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K120,AISIN AW:REF.ILLUST; K120,LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN,AISIN AW:REF.ILLUST
K120,TMH:REFER TO ILLUST.
K120,TMH:REFER TO ILLUST.
K120F,TMH:REFER TO ILLUST.
K120
main30400-42150iMXAA54..(G,V)..(GEN,SA);MXAA54..CVT..(M,X)..(GCC,GEN); MXAA54..CVT..EUR202201-202210
K120F,AISIN AW:REF.ILLUST; K120F,REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL,AISIN AW:REF.ILLUST
K120F,REGULATION COMPLIANCE LABEL & NAME PLATE-WITH(*WVTA),TMH:REFER TO ILLUST.
30400JPLUG, TRANSAXLE HOLE
30400KGASKET, TRANSAXLE HOLE PLUG
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
32901LELBOW SUB-ASSY, OIL COOLER
32901MBOLT, UNION(FOR OIL COOLER)
32901NGASKET(FOR OIL COOLER UNION)
32943PCLIP, NO.1(FOR OIL COOLER HOSE)
33621JLABEL, TRANSAXLE OIL INFORMATION
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
35015YCOVER SUB-ASSY, TRANSAXLE SIDE
main35015-33010iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202210-202310
AISIN AW:REF.ILLUST
main35015-42010iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202310
TMH:REFER TO ILLUST.
35125ETUBE, OVERFLOW(CVT)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
35150BPLUG ASSY, TRANSMISSION CASE
main35150-48010iMXAA52..JPP..CVT;MXAA54..JPP..CVT..(M,X);MXAA54..CVT..(G,V)..(EUR,GEN,SA)202008-202210
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35410JBODY ASSY, TRANSMISSION VALVE
main35410-12881iMXAA52..JPP..CVT;MXAA54..JPP..CVT..(M,X);MXAA54..CVT..(G,V)..(EUR,GEN,SA)202008-202210
TMH:REFER TO ILLUST.
main35410-52290iMXAA52..LHD..CVT..EUR; MXAA54..JPP..CVT..(M,X);MXAA52..CVT..(ARL,GCC,GEN,SA);MXAA54..CVT..(G,V)..(EUR,GEN,SA)202201-202210
AISIN AW:REF.ILLUST; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL,AISIN AW:REF.ILLUST
AISIN AW:REF.ILLUST; LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN,AISIN AW:REF.ILLUST
35572CLEVER, TRANSMISSION CONTROL SHAFT
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9030107019
main90301-07019
9030115027
main90301-15027
9034118020
main90341-18020
9034118086
main90341-18086
9155180625
main91551-80625
9413000802
main94130-00802
9451200800
main94512-00800
31 parts on this diagram · 6 diagrams in section
TRANSAXLE ASSY(CVT) for Toyota RAV4 (JPP)
This section contains 110 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota RAV4 (JPP). Key components include: OVERHAUL KIT, TRANSAXLE(CVT), STAY(FOR GEAR SHIFT FORK), TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, BOLT(FOR TRANSAXLE & ENGINE SETTING), SEAL, TYPE T OIL(FOR CVT OIL PUMP).
