Toyota RAV4 (JPP) — PRE-COLLISION SYSTEM
5553
86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
main86401-10010iMXAA52..G..SA;AXAH54..V..EUR;AXAL54..(G,M,P,V)..EUR;MXAA52..LHD..(G,M)..EUR;AXAA54,AXAH5#,AXAL52,MXAA54..(G,M,P)..(EUR,SA)202112-202210
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,REFER TO PNC 86466D
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
86464ALATCH, FORWARD RECOGNITION
main86464-K0010supersedes 86464-K0010iMXAA52..G..SA;AXAH54..V..EUR;AXAL54..(G,M,P,V)..EUR;MXAA52..LHD..(G,M)..EUR;AXAA54,AXAH5#,AXAL52,MXAA54..(G,M,P)..(EUR,SA)202112-202210
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,REFER TO PNC 86466D
86466DCOVER, FORWARD RECOGNITION, NO.1
main86466-42120supersedes 86466-42120iMXAA52..G..SA;AXAH54..V..EUR;AXAL54..(G,M,P,V)..EUR;MXAA52..LHD..(G,M)..EUR;AXAA54,AXAH5#,AXAL52,MXAA54..(G,M,P)..(EUR,SA)202112-202210
MARK=86466-42120
86466ECOVER, FORWARD RECOGNITION, NO.2
PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
8646CCAMERA, FORWARD RECOGNITION
main8646C-0R090iMXAA52..G..SA;AXAH54..V..EUR;AXAL54..(G,M,P,V)..EUR;MXAA52..LHD..(G,M)..EUR;AXAA54,AXAH5#,AXAL52,MXAA54..(G,M,P)..(EUR,SA)202112-202210
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,REFER TO PNC 86466D
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,REFER TO PNC 86466D
MARK=8646C-0R141
PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK=8646C-0R142
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
AUSTRALIA SPEC,REFER TO PNC 86466D
ACTIVE SAFETY PACKAGE-WITHOUT,*614
*614
9046705171
main90467-05171

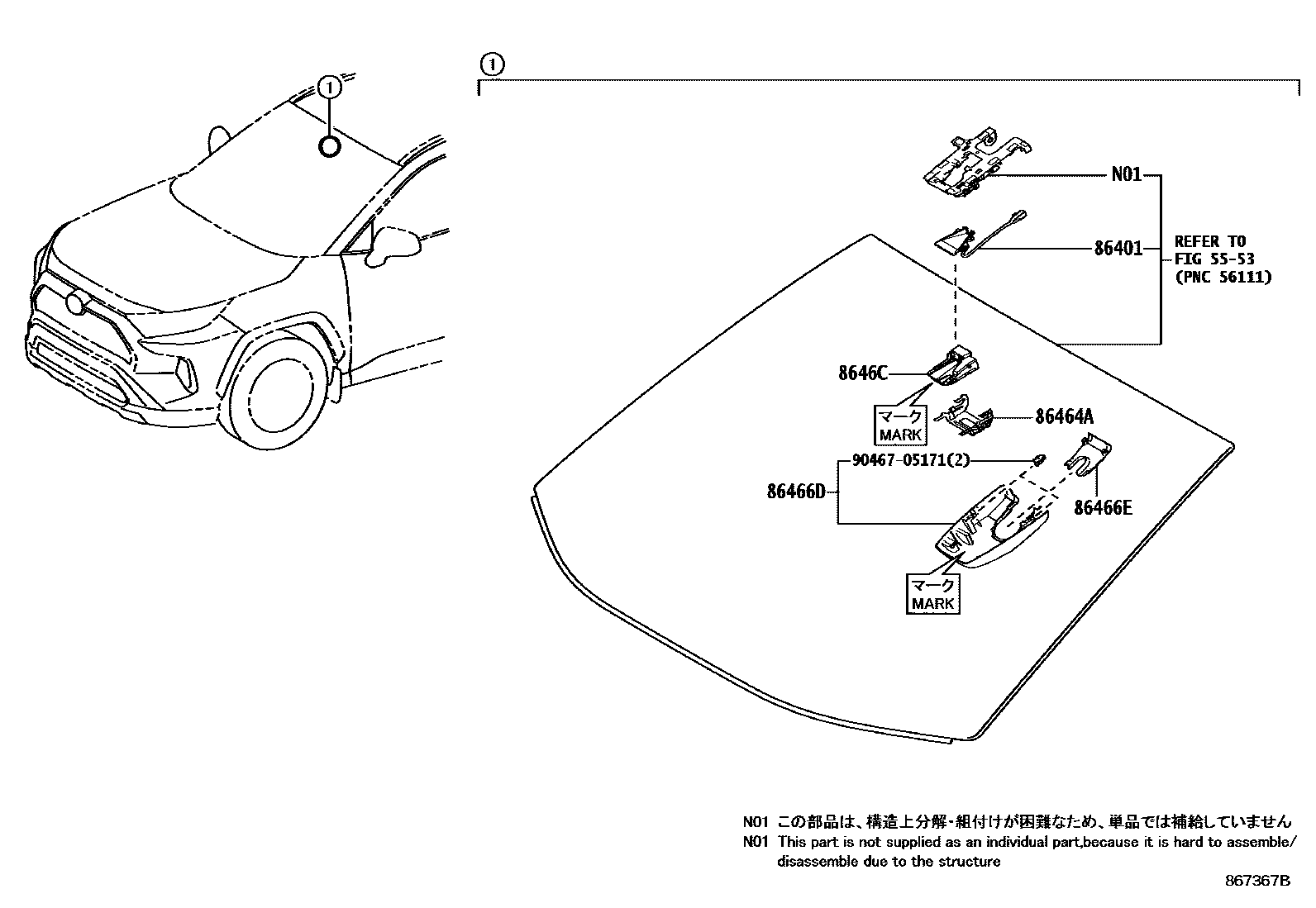

7 parts on this diagram · 1 diagram in section
