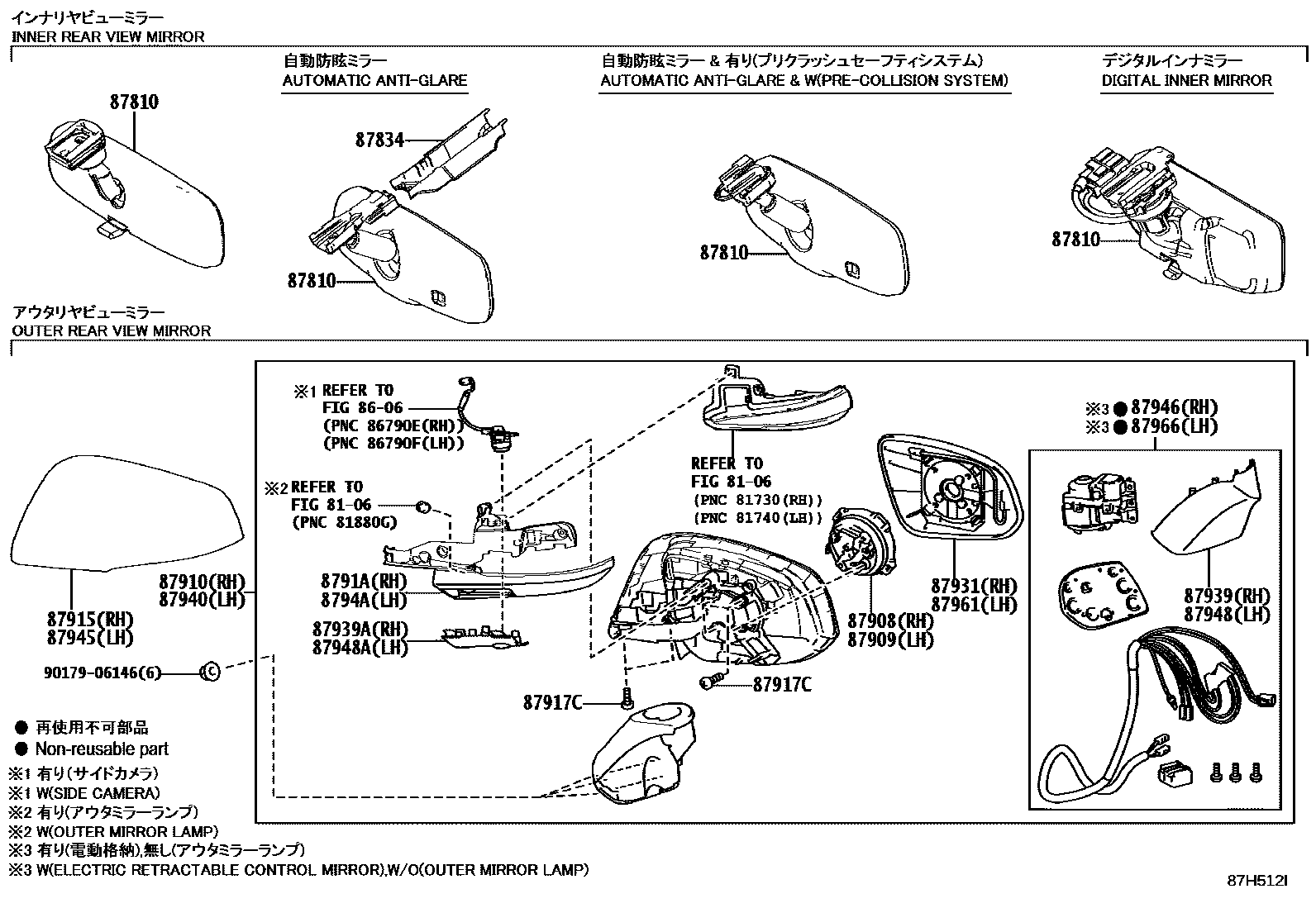

Toyota RAV4 (JPP) — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WZ20iAXAA54,AXAH5#,MXAA52..(G,V)..ARL; AXAA54,AXAH54,MXAA52..G..SA;AXAH5#,AXAL5#..LHD..(G,M,P,V)..EUR; AXAH5#,AXAL5#..LHD..(G,P,V)..EUR; AXAH5#,AXAL5#..LHD..M..EUR202310
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; REAR SIDE GLASS-REINFORCED(GRAY)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
main87840-0W130supersedes 87840-0W140iAXAA54,AXAH52,MXAA52..M..ARL; AXAA54,AXAH52..M..ARL; AXAA54,MXAA52..G..SA; AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; AXAH54..LHD..(G,V);MXAA52..(G,M)..GEN;AXAH54..RHD..(EUR,GEN);AXAH54..LHD..(M,P)..EUR;AXAH54..(M,V)..(GCC,SA);MXAA54..JPP..(G,M,V)..(GCC,GEN,RUS,SA);AXAA5#,AXAH52,AXAL5#..(G,M,P,V)..(EUR,GCC,GEN); AXAH54..P..GEN202210-202310
ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL); OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL); OCEANIA OTHERS SPEC&CRUISE CONTROL-WITH(NORMAL); OTHER LATIN-NCAP COUNTRY&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL); PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL); PAPUA NEW GUINEA, SAMOA SPEC&CRUISE CONTROL-WITH(NORMAL)
main87840-0W140supersedes 87840-0W130iAXAA54..LHD..V;AXAH54..LHD..G;MXAA54..M..GCC;AXAH54..LHD..P..EUR;MXAA54..RHD..CVT..M;AXAH54..LHD..M..GEN;AXAH54..(M,V)..(EUR,GCC);AXAH52,AXAL54..(G,M,P,V)..EUR;AXAH54..RHD..(G,P)..(EUR,GEN,SA);MXAA54..LHD..CVT..(G,M,V)..(EUR,GEN);AXAA52,AXAH52..LHD..(G,M,P)..(GCC,GEN);AXAA54,AXAL52,MXAA52..(ATM,CVT)..(G,M,P)..(EUR,GCC,GEN,SA); AXAH52..LHD..(G,M)..GEN;AXAA54,AXAH54..LHD..G..GEN; AXAH52..P..ARL;AXAH54..P..(ARL,GEN); AXAH54..LHD..G..GEN; MXAA5#..JPP..LHD..6F..(G,M); MXAA52..LHD..CVT..M..GEN;AXAA5#,MXAA54..LHD..(ATM,CVT)..(G,M,V)..GEN; MXAA52..RHD..G..EUR202008-202210
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED); ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H); ARGENTINA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H); BRAZIL SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN); COLOMBIA SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H); SINGAPOLE SPEC&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)
main87810-0R120iAXAH54..M..RUS;MXAA52..LHD..CVT..(G,M)..EUR;AXAA54,AXAH5#,MXAA54..(ATM,CVT)..(G,M)..EUR; MXAA52..RHD..G..EUR;MXAA5#..6F..(G,M)..EUR201811-201909
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main87810-0R121iMXAA5#..6F..(G,M)..EUR; MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..CVT..(G,M)..EUR201910-202007
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(ALL SPEED)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&CRUISE CONTROL-*ACC(OVER40KM/H)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-76010iAXAA54,AXAH52,MXAA52..M..ARL; AXAA54,AXAH52..M..ARL; AXAA54,MXAA52..G..SA; AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; AXAH54..LHD..(G,V);MXAA52..(G,M)..GEN;AXAH54..RHD..(EUR,GEN);AXAH54..LHD..(M,P)..EUR;AXAH54..(M,V)..(GCC,SA);MXAA54..JPP..(G,M,V)..(GCC,GEN,RUS,SA);AXAA5#,AXAH52,AXAL5#..(G,M,P,V)..(EUR,GCC,GEN); AXAH54..P..GEN202210-202310
ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL); OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL); OCEANIA OTHERS SPEC&CRUISE CONTROL-WITH(NORMAL); OTHER LATIN-NCAP COUNTRY&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL); PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH(NORMAL); PAPUA NEW GUINEA, SAMOA SPEC&CRUISE CONTROL-WITH(NORMAL)
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-42M50iAXAH5#..P..(ARL,GEN);MXAA54..LHD..(EUR,GEN);MXAA52..LHD..X..(EUR,GEN);AXAH5#,AXAL5#..LHD..X..EUR;AXAA54,AXAH52..LHD..(G,M,V,X)..GEN;AXAA52,AXAH54,MXAA52..LHD..(G,M)..GEN;AXAA54,AXAH5#,AXAL5#,MXAA52..(G,M,P,V)..(EUR,SA)202101-202209
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87908-42M50iAXAL5#;MXAA52..X..(EUR,RUS);MXAA52..(G,M)..(EUR,RUS,SA);AXAA54,AXAH5#,MXAA54..(G,M,X)..(EUR,RUS,SA)201811-202009
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,REFER86-17:PNC86466D
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
main87910-42F50iAXAA54,MXAA52..G..SA; MXAA52..X..SA;AXAA54,MXAA52..RHD..(ARL,GEN);AXAA52,AXAH52,MXAA54..RHD..(ARL,GEN,SA)201901-201902
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & PAINTED & TURN SIGNAL & *MIH
main87910-42F51iAXAA54,MXAA52..(ATM,CVT)..G..SA; MXAA52..X..SA;AXAH52..G..ARL;AXAA54,MXAA52..RHD..(ARL,GEN);AXAH52..RHD..(M,X)..(ARL,GEN);AXAA52,AXAH54,MXAA54..RHD..(ARL,GEN,SA)201903-202007
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & PAINTED & TURN SIGNAL & *MIH
main87910-42F52iAXAA54,MXAA52..G..SA; AXAH5#..ARL;MXAA52..X..SA;MXAA54..RHD..CVT;AXAH54..RHD..G..GEN;AXAA54..(M,V,X)..ARL;AXAA54..RHD..(G,M,X)..GEN;MXAA52..RHD..CVT..(ARL,GEN)202101-202112
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & PAINTED & TURN SIGNAL & *MIH,REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87910-42F60supersedes 87910-42F51iMXAA52..6F..G..SA;MXAA52..RHD..G..EUR; MXAA52..RHD..CVT..M..EUR201811-201909
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
NO PAINT REQ.; NO PAINT REQ.,AUSTRALIA SPEC&BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,AUSTRALIA SPEC&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&BACKMONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&LANECHANGE ASSIST-*BSM(EXTENSION EDITION)
LANE CHANGE ASSIST-WITHOUT
main87910-42F81iAXAH5#,AXAL5#..RHD..G..(EUR,SA); MXAA52..RHD..EUR;AXAH5#,AXAL5#..RHD..(M,P,V)..(EUR,SA)202101-202204
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-WITHOUT
main87910-42G00supersedes 87910-42F21iAXAA5#,AXAH5#,MXAA5#..LHD..GEN; AXAA54,AXAH5#,AXAL5#,MXAA5#..LHD..(M,X)..(EUR,RUS); AXAA54,AXAH5#,AXAL5#,MXAA5#..LHD..G..(EUR,RUS)202008-202012
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-WITHOUT; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & PAINTED & TURN SIGNAL & *MIH
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-WITHOUT
main87910-42K70iAXAA54..RHD..G..GEN;AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; AXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL; AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; MXAA52..G..SA;AXAA54,AXAH5#,AXAL5#..RHD..G..(EUR,SA)202112-202208
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87910-42K71iAXAA54..RHD..G..GEN;AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; AXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL; AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; MXAA52..G..SA;AXAA54,AXAH5#,AXAL5#..RHD..G..(EUR,SA)202208-202210
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87910-42L40iAXAH5#,AXAL5#..RHD..(M,P,V)..EUR; AXAH5#,AXAL5#..RHD..G..EUR; AXAH54..V..ARL;AXAH54..G..(ARL,SA);AXAA54,AXAH52,MXAA52..(G,V)..(ARL,SA)202210-202310
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87910-42L41supersedes 87910-42M60iAXAH52,AXAL5#..RHD..G..EUR; AXAH52..RHD..P..EUR;AXAL5#..RHD..(M,P,V); AXAH54..V..ARL;AXAH54..G..(ARL,SA);AXAA54,AXAH52,MXAA52..(G,V)..(ARL,SA)202310
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
NO PAINT REQ.,REFER86-17:PNC86466D
NO PAINT REQ.
main87910-42M50iAXAH5#,AXAL5#..RHD..(M,P,V)..EUR; AXAH5#,AXAL5#..RHD..(M,P,V)..EUR;AXAA54,AXAH54,MXAA5#..RHD..(G,V)..GEN; AXAH52..M..ARL;MXAA52..CVT..(M,X)..ARL; MXAA52..CVT..(M,X)..ARL; MXAA52..G..SA;AXAA54,AXAH5#,AXAL5#..RHD..G..(EUR,SA); MXAA52..G..SA;AXAA54..M..ARL;AXAH5#,MXAA52..CVT..(M,P,X)..ARL;AXAA54,AXAH5#,AXAL5#..RHD..G..(EUR,SA)202204-202210
NO PAINT REQ.; NO PAINT REQ.,AUSTRALIA SPEC&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION); NO PAINT REQ.,NEW ZEALAND SPEC&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87910-42M60iMXAA52..X..SA;MXAA52..RHD..(EUR,GEN);AXAA54,AXAH54..RHD..GEN;AXAH5#,AXAL5#,MXAA54..RHD..(M,P,V,X)..(EUR,GEN,SA)202210
NO PAINT REQ.
main87910-42M80supersedes 87910-42M20iAXAA5#,AXAH5#,MXAA5#..LHD..(G,P,V)..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..(M,P,V,X)..EUR; AXAA52,AXAH54..LHD..M..GEN;AXAA54,AXAH52,MXAA5#..LHD..(M,X)..GEN; AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR202204-202210
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-WITHOUT; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & PAINTED & TURN SIGNAL & *MIH
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87910-42F30supersedes 87910-42G01iAXAA5#,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH5#,AXAL5#,MXAA5#..LHD..G..(EUR,RUS); AXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..M..EUR202008-202012
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&BACKMONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&LANECHANGE ASSIST-*BSM(EXTENSION EDITION)
main87910-42F31iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR; AXAH5#..P..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..(M,P,V)..EUR; AXAH52..P..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..(M,P,V)..EUR202101-202204
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87910-42F40supersedes 87910-42G01iAXAA5#,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH5#,AXAL5#,MXAA5#..LHD..(ATM,CVT)..G..(EUR,RUS); AXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR202008-202012
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTA
main87910-42F70iAXAA54,AXAH54,MXAA52..(G,V)..ARL; AXAA54,MXAA52..(ATM,CVT)..G..SA; AXAA54..V..ARL;AXAH5#,MXAA52..G..ARL201901-202007
NO PAINT REQ.,AUSTRALIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGEASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,NEW ZEALAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87910-42K60iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR; AXAH54..LHD..G..GEN;AXAA5#,AXAH52,MXAA5#..LHD..(G,P,V)..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH54..P..GEN202112-202208
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D
main87910-42K61iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR; AXAH54..LHD..G..GEN;AXAA5#,AXAH52,MXAA5#..LHD..(G,P,V)..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH54..P..GEN202208-202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87910-42L00iAXAA5#,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR202101-202112
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTA,REFER86-17:PNC86466D
main87910-42L10iAXAA54,AXAH54,MXAA52..RHD..G..GEN; AXAA54,MXAA52..G..SA; AXAA54..V..ARL; AXAH5#,AXAL5#..RHD..G..EUR; AXAH5#,AXAL5#..RHD..M..EUR; AXAH5#,MXAA52..G..ARL; MXAA54..RHD..V..GEN202101-202112
NO PAINT REQ.,AUSTRALIA SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,AUSTRALIA SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANECHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,AUSTRALIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGEASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,NEW ZEALAND SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,NEW ZEALAND SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,NEW ZEALAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTA,REFER86-17:PNC86466D
main87910-42L30supersedes 87910-42M30iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH5#,AXAL5#,MXAA54..JPP..LHD..G..(EUR,RUS); AXAH54..LHD..G..GEN;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
NO PAINT REQ.,BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87910-42M30iAXAA54,AXAH5#,MXAA5#..LHD..(G,P,V)..GEN; AXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,P,V)..EUR; AXAH54..LHD..G..GEN;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR202310
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
main87915-42200-A2iAXAA54,AXAH5#,MXAA5#..LHD..(G,P)..GEN; AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,P)..EUR; AXAH5#,AXAL5#..LHD..G..EUR; AXAH54..LHD..G..GEN;AXAA54,AXAH52,MXAA5#..LHD..(G,P)..GEN; AXAH54..LHD..G..GEN;AXAH5#,AXAL5#..LHD..(M,P)..EUR;AXAA54,AXAH52,MXAA5#..LHD..(G,P)..GEN; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR; MXAA54..JPP..M..RUS;AXAL5#..RHD..(G,M,P);AXAH52..RHD..(G,P)..EUR;AXAH54..LHD..(M,P)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH52,AXAL5#..LHD..(M,P,X)..EUR;AXAA5#,AXAH5#,MXAA54..(G,M,P,X)..(ARL,GCC,GEN,SA)202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA,PLATINUM WHITE PEARL MC.,089; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,PLATINUM WHITE PEARL MC.,089; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,PLATINUM WHITE PEARL MC.,089; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,PLATINUM WHITE PEARL MC.,089; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,PLATINUM WHITE PEARL MC.,089; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,PLATINUM WHITE PEARL MC.,089; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),PLATINUM WHITE PEARL MC.,089; LANE CHANGE ASSIST-WITHOUT,PLATINUM WHITE PEARL MC.,089; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKGUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,PLATINUM WHITE PEARL MC.,089; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKMONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,PLATINUM WHITE PEARL MC.,089; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
main87915-42200-B1iAXAA54,AXAH5#,MXAA5#..LHD..(G,P,V)..GEN; AXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,P,V)..EUR; AXAH5#,AXAL5#..LHD..G..EUR; AXAH54..LHD..G..GEN;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..LHD..G..GEN;AXAH5#,AXAL5#..LHD..(M,P,V)..EUR;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAL5#..RHD;MXAA54..JPP..M..RUS;AXAH52..RHD..(G,P)..EUR;MXAA52..X..(ARL,GCC,GEN);AXAH54..LHD..(M,P,V)..EUR;MXAA52..(G,M)..(ARL,GEN,SA);AXAH52,AXAL5#..LHD..(M,P,V,X)..EUR;AXAA5#,AXAH5#,MXAA54..ARL,GCC,GEN,SA; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA,GRAY ME.,1G3; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,GRAY ME.,1G3; GRAY ME.,1G3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,GRAY ME.,1G3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),GRAY ME.,1G3; LANE CHANGE ASSIST-WITHOUT,GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKGUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKMONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),GRAY ME.,1G3
SILVER ME.,1F7
BLACK,2QU ,2QW ,2QX; BLACK,2QU ,2QW ,2QX ,2TU
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
main87915-42200-D0iAXAA5#,AXAH5#,AXAL5#,MXAA5#..JPP..(G,M,V,X); AXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,V)..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,V)..EUR; AXAH5#,AXAL5#,MXAA54..JPP..LHD..G..(EUR,RUS)202210
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,RED MC.,3T3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,RED MC.,3T3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),RED MC.,3T3; RED MC.,3T3
RED M.M.,3R3
GRAPHITE ME.,4X7
main87915-42200-G0iAXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,V)..EUR; AXAH5#,AXAL5#..LHD..(M,V)..EUR;AXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAH5#,AXAL5#..LHD..G..EUR; AXAH52..RHD..G..EUR;MXAA54..JPP..M..RUS;AXAL5#..RHD..(G,M,V);AXAH54..LHD..(M,V)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH52,AXAL5#..LHD..(M,V,X)..EUR;AXAA5#,AXAH5#,MXAA54..(G,M,V,X)..(ARL,GCC,GEN,SA); MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA,URBAN KHAKI,6X3; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,URBAN KHAKI,6X3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,URBAN KHAKI,6X3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),URBAN KHAKI,6X3; LANE CHANGE ASSIST-WITHOUT,URBAN KHAKI,6X3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKGUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKMONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),URBAN KHAKI,6X3; URBAN KHAKI,6X3
CYAN METALLIC,8W9
main87915-42200-J1iAXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,P)..EUR; AXAH5#,AXAL5#..LHD..(M,P)..EUR;AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAH5#,AXAL5#..LHD..G..EUR; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR; MXAA54..JPP..M..RUS;AXAL5#..RHD..(G,M,P);AXAH52..RHD..(G,P)..EUR;AXAH54..LHD..(M,P)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH52,AXAL5#..LHD..(M,P,X)..EUR;AXAA5#,AXAH5#,MXAA54..(G,M,X)..(ARL,GCC,GEN,SA)202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA,DK. BLUE MC.,8X8; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,DK. BLUE MC.,8X8; DK. BLUE MC.,8X8; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,DK. BLUE MC.,8X8; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),DK. BLUE MC.,8X8; LANE CHANGE ASSIST-WITHOUT,DK. BLUE MC.,8X8; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKGUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKMONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),DK. BLUE MC.,8X8
DK.BLUE M.M.,8W7
GRAYISH BLUE,8W2
87917CSCREW, OUTER MIRROR
main87917-15010×12iAXAA52..RHD;AXAA54..RHD..V..GEN; AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;MXAA5#..RHD..6F..GEN;AXAA52,AXAH52..RHD..GEN; AXAL5#..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAH5#,AXAL5#..RHD..X..EUR; MXAA52..6F..ARL202101-202111
AUSTRALIA SPEC&BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; AUSTRALIA SPEC&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION); OUTSIDE REAR VIEW MIRROR-*273 & PAINTED & TURN SIGNAL & *MIH; OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
8791ACOVER, OUTER MIRROR, RH NO.2
main8791B-42E40supersedes 8791B-42E50iAXAA54,MXAA52..G..SA; AXAH5#,AXAL5#..G..EUR; AXAH52..G..GEN;MXAA54..GCC,GEN,SA;MXAA54..JPP..M..RUS;AXAH54..(M,P,V,X)..(EUR,SA);AXAA5#,AXAH54,MXAA52..GCC,GEN;AXAH52,AXAL5#..(M,P,V,X)..(EUR,GCC,GEN); AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; MXAA52..(M,X)..ARL;AXAA54,AXAH52..M..ARL; MXAA52..X..ARL;AXAA54,AXAH52..M..ARL202210-202310
ACTIVE SAFETY PACKAGE-WITHOUT&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; LANE CHANGE ASSIST-WITHOUT; OCEANIA OTHERS SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; OCEANIA OTHERS SPEC&LANE CHANGE ASSIST-WITHOUT; PAPUA NEW GUINEA, SAMOA SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; PAPUA NEW GUINEA, SAMOA SPEC&LANE CHANGE ASSIST-WITHOUT
main8791B-42E50supersedes 8791B-42E40iAXAH5#..P..GEN;MXAA52..LHD..M..EUR;AXAA5#,AXAH54..(G,V)..GCC;AXAH5#,AXAL5#,MXAA54..(M,P,V)..EUR; AXAH52..P..GEN;MXAA52..LHD..CVT..M..EUR;AXAH5#,AXAL5#,MXAA54..CVT..(M,P,V)..EUR; AXAH52..P..GEN;MXAA52..LHD..M..EUR;AXAA5#,AXAH54..(G,V)..GCC;AXAH5#,AXAL5#,MXAA54..(M,P,V)..EUR; MXAA52..G..SA;AXAH5#..(P,V)..ARL;MXAA52..LHD..G..EUR;AXAA54,AXAH5#,AXAL5#,MXAA54..G..(EUR,SA); MXAA52..LHD..CVT..M..EUR;AXAH5#,AXAL5#,MXAA54..CVT..(M,P,V)..EUR202008-202210
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
87931OUTER MIRROR, RH
main87931-42F20iMXAA54..CVT..G..GEN;MXAA54..LHD..(M,V,X)..GEN;AXAA5#,AXAH5#,MXAA52..LHD..GEN201811-202007
main87931-42F30supersedes 87931-42G00iAXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,P,V)..EUR; AXAH5#,AXAL5#..LHD..(M,P,V)..EUR;AXAA54,AXAH5#,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..LHD..G..GEN;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..LHD..G..GEN;AXAH5#,AXAL5#..LHD..(M,P,V)..EUR;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..P..GEN; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION); OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87931-42F50supersedes 87931-42F60iAXAA54,MXAA52..G..SA; AXAH52,AXAL5#..RHD..G..EUR; AXAH52..RHD..P..EUR;AXAL5#..RHD..(M,P,V);AXAA54,AXAH54,MXAA52..RHD..GEN;AXAH54,MXAA54..RHD..(M,V,X)..(GEN,SA); AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; MXAA52..(M,X)..ARL;AXAA54,AXAH52..M..ARL; MXAA52..X..ARL;AXAA54,AXAH52..M..ARL202310
ACTIVE SAFETY PACKAGE-WITHOUT&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; LANE CHANGE ASSIST-WITHOUT; OCEANIA OTHERS SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; OCEANIA OTHERS SPEC&LANE CHANGE ASSIST-WITHOUT; PAPUA NEW GUINEA, SAMOA SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; PAPUA NEW GUINEA, SAMOA SPEC&LANE CHANGE ASSIST-WITHOUT
main87931-42F60supersedes 87931-42F50iAXAH5#,AXAL5#..RHD..(M,P,V)..EUR; MXAA52..G..SA;AXAH5#..(P,V)..ARL;AXAA54,AXAH5#,AXAL5#..RHD..G..(EUR,SA)202008-202210
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87931-42G00supersedes 87931-42F20iAXAA54,AXAH52,MXAA5#..LHD..(M,X)..GEN; AXAH5#,AXAL5#..LHD..G..EUR; MXAA54..JPP..M..RUS;AXAH5#,AXAL5#..LHD..(M,P,V,X)..EUR;AXAA54,AXAH5#,MXAA5#..LHD..(G,P,V)..GEN202210-202310
LANE CHANGE ASSIST-WITHOUT; OUTSIDE REAR VIEW MIRROR-*273 & PAINTED & TURN SIGNAL & *MIH
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
87939COVER, OUTER MIRROR HOLE, RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
87939ACOVER, OUTER MIRROR HOLE, RH
main87939-42E50iAXAH54..G..RUS;MXAA52..6F..G..SA;MXAA52..RHD..G..EUR; MXAA52..RHD..CVT..M..EUR; MXAA54..6F..G..GEN;MXAA52..RHD..CVT..M..EUR201811-201909
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87939-42E60supersedes 87939-42E50iAXAA54,MXAA52..G..SA; AXAA54..G..GEN;AXAA54..LHD..V..GEN;AXAA52,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL; AXAH54..P..GEN202112-202210
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87939-42L20supersedes 87939-42E50iAXAH5#,AXAL5#..(M,P,V)..EUR; AXAH54..LHD..G..GEN;AXAH5#,AXAL5#..(M,P,V)..EUR;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..P..GEN; AXAH54..V..ARL;AXAH54..G..(ARL,SA);AXAA54,AXAH52,MXAA52..(G,V)..(ARL,SA); MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..G..EUR202210-202310
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,REFER86-17:PNC86466D
NO PAINT REQ.
NO PAINT REQ.
main87940-42F20iAXAA54,MXAA52..G..SA; MXAA52..X..SA;AXAA54,MXAA52..RHD..(ARL,GEN);AXAA52,AXAH52,MXAA54..RHD..(ARL,GEN,SA)201901-201902
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & PAINTED & TURN SIGNAL & *MIH
main87940-42F21iAXAA54,MXAA52..G..SA; MXAA52..X..SA;AXAA54,MXAA52..RHD..(ARL,GEN);AXAA52,AXAH5#,MXAA54..RHD..(ARL,GEN,SA)202008-202012
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & PAINTED & TURN SIGNAL & *MIH
main87940-42F22iAXAA54..G..ARL;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN)202101-202111
NO PAINT REQ.,REFER86-17:PNC86466D
main87940-42F30supersedes 87940-42F21iMXAA52..6F..G..SA;MXAA52..RHD..G..EUR; MXAA52..RHD..CVT..M..EUR201811-201909
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
NO PAINT REQ.; NO PAINT REQ.,AUSTRALIA SPEC&BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,AUSTRALIA SPEC&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION); NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&BACKMONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&LANECHANGE ASSIST-*BSM(EXTENSION EDITION)
main87940-42F70supersedes 87940-42F00iAXAA5#,AXAH5#,MXAA5#..LHD..GEN; AXAA54,AXAH5#,AXAL5#,MXAA5#..LHD..(M,X)..(EUR,RUS); AXAA54,AXAH5#,AXAL5#,MXAA5#..LHD..G..(EUR,RUS)202008-202012
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-WITHOUT; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & PAINTED & TURN SIGNAL & *MIH
main87940-42F71supersedes 87940-42M20iAXAA52,AXAH54..LHD..M..GEN;AXAA54,AXAH52,MXAA5#..LHD..(M,X)..GEN; AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR; AXAH5#..P..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..(M,P,V,X)..EUR202101-202204
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-WITHOUT; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & PAINTED & TURN SIGNAL & *MIH
LANE CHANGE ASSIST-WITHOUT
main87940-42F81iAXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;MXAA5#..RHD..6F..GEN;AXAA52,AXAH52..RHD..GEN; AXAH5#,AXAL5#..RHD..X..EUR202101-202111
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & PAINTED & TURN SIGNAL & *MIH
main87940-42K60iAXAA54..RHD..G..GEN;AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; AXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL; AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; MXAA52..G..SA;AXAA54,AXAH5#,AXAL5#..RHD..G..(EUR,SA)202112-202208
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87940-42K61iAXAA54..RHD..G..GEN;AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; AXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL; AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; MXAA52..G..SA;AXAA54,AXAH5#,AXAL5#..RHD..G..(EUR,SA)202208-202210
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87940-42L30iAXAH5#,AXAL5#..RHD..(M,P,V)..EUR; AXAH5#,AXAL5#..RHD..G..EUR; AXAH54..V..ARL;AXAH54..G..(ARL,SA);AXAA54,AXAH52,MXAA52..(G,V)..(ARL,SA)202210-202310
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
main87940-42L31supersedes 87940-42M80iAXAH52,AXAL5#..RHD..G..EUR; AXAH52..RHD..P..EUR;AXAL5#..RHD..(M,P,V); AXAH54..V..ARL;AXAH54..G..(ARL,SA);AXAA54,AXAH52,MXAA52..(G,V)..(ARL,SA)202310
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
NO PAINT REQ.,REFER86-17:PNC86466D
NO PAINT REQ.
main87940-42M40iAXAA54,AXAH54,MXAA5#..RHD..(G,V)..GEN; AXAH5#,AXAL5#..RHD..(M,P,V)..EUR; AXAH5#,AXAL5#..RHD..(M,P,V)..EUR;AXAA54,AXAH54,MXAA5#..RHD..(G,V)..GEN; AXAH5#,AXAL5#..RHD..(M,P,V)..EUR;AXAA54,AXAH54,MXAA52..RHD..G..GEN; AXAH5#,AXAL5#..RHD..G..EUR; AXAH5#,AXAL5#..RHD..G..EUR;AXAA54,AXAH5#,MXAA52..(M,P,X)..ARL202210-202310
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
main87940-42M70supersedes 87940-42M10iAXAA5#,AXAH5#,MXAA5#..LHD..(G,P,V)..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..(M,P,V,X)..EUR; AXAA52,AXAH54..LHD..M..GEN;AXAA54,AXAH52,MXAA5#..LHD..(M,X)..GEN; AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR202204-202210
NO PAINT REQ.; NO PAINT REQ.,LANE CHANGE ASSIST-WITHOUT; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & PAINTED & TURN SIGNAL & *MIH
main87940-42M80iAXAA54,MXAA52..G..SA; AXAH52,AXAL5#..RHD..G..EUR; AXAH52..RHD..P..EUR;AXAL5#..RHD..(M,P,V); AXAH52..RHD..P..EUR;AXAL5#..RHD..(M,P,V);AXAA54,AXAH54,MXAA52..RHD..GEN;AXAH54,MXAA54..RHD..(M,V,X)..(GEN,SA); AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; MXAA52..(M,X)..ARL;AXAA54,AXAH52..M..ARL; MXAA52..X..ARL;AXAA54,AXAH52..M..ARL202310
NO PAINT REQ.,ACTIVE SAFETY PACKAGE-WITHOUT&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,LANE CHANGE ASSIST-WITHOUT,REFER86-17:PNC86466D; NO PAINT REQ.,OCEANIA OTHERS SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT,REFER86-17:PNC86466D; NO PAINT REQ.,OCEANIA OTHERS SPEC&LANE CHANGE ASSIST-WITHOUT,REFER86-17:PNC86466D; NO PAINT REQ.,PAPUA NEW GUINEA, SAMOA SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT,REFER86-17:PNC86466D; NO PAINT REQ.,PAPUA NEW GUINEA, SAMOA SPEC&LANE CHANGE ASSIST-WITHOUT,REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87940-42F00iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..M..EUR;AXAA5#,AXAH5#,MXAA5#..LHD..(ATM,CVT)..(G,V)..GEN201811-202007
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&BACKMONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&LANECHANGE ASSIST-*BSM(EXTENSION EDITION),REFER86-17:PNC86466D
main87940-42F10supersedes 87940-42F71iAXAA5#,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH5#,AXAL5#,MXAA5#..LHD..(ATM,CVT)..G..(EUR,RUS); AXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR202008-202012
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTA
main87940-42F40iAXAA54,AXAH54,MXAA52..(G,V)..ARL; AXAA54,MXAA52..(ATM,CVT)..G..SA; AXAA54..V..ARL;AXAH5#,MXAA52..G..ARL201901-202007
NO PAINT REQ.,AUSTRALIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGEASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,NEW ZEALAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main87940-42K50iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR; AXAH54..LHD..G..GEN;AXAA5#,AXAH52,MXAA5#..LHD..(G,P,V)..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH54..P..GEN202112-202208
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D
main87940-42K51iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR; AXAH54..LHD..G..GEN;AXAA5#,AXAH52,MXAA5#..LHD..(G,P,V)..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH54..P..GEN202208-202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; NO PAINT REQ.,BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87940-42K90iAXAA5#,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR202101-202112
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTA,REFER86-17:PNC86466D
main87940-42L00iAXAA54,AXAH54,MXAA52..RHD..G..GEN; AXAA54,MXAA52..G..SA; AXAA54..V..ARL; AXAH5#,AXAL5#..RHD..G..EUR; AXAH5#,AXAL5#..RHD..M..EUR; AXAH5#,MXAA52..G..ARL; MXAA54..RHD..V..GEN202101-202112
NO PAINT REQ.,AUSTRALIA SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,AUSTRALIA SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANECHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,AUSTRALIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGEASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,NEW ZEALAND SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,NEW ZEALAND SPEC&AUDIO-JBL 8INCH DAB, AUSTRALIA&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,NEW ZEALAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&FOOT&CAMERA&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTA,REFER86-17:PNC86466D
main87940-42L20supersedes 87940-42M20iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR; AXAH5#,AXAL5#,MXAA54..JPP..LHD..G..(EUR,RUS); AXAH54..LHD..G..GEN;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR202210
NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
NO PAINT REQ.,BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87940-42M20iAXAA54,AXAH5#,MXAA5#..LHD..(G,P,V)..GEN; AXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,P,V)..EUR; AXAH54..LHD..G..GEN;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR202310
NO PAINT REQ.,BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,REFER86-17:PNC86466D; NO PAINT REQ.,LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,REFER86-17:PNC86466D; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),REFER86-17:PNC86466D; NO PAINT REQ.,REFER86-17:PNC86466D
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
main87945-42200-B1iAXAA54,AXAH5#,MXAA5#..LHD..(G,P,V)..GEN; AXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,P,V)..EUR; AXAH5#,AXAL5#..LHD..G..EUR; AXAH54..LHD..G..GEN;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..LHD..G..GEN;AXAH5#,AXAL5#..LHD..(M,P,V)..EUR;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAL5#..RHD;MXAA54..JPP..M..RUS;AXAH52..RHD..(G,P)..EUR;MXAA52..X..(ARL,GCC,GEN);AXAH54..LHD..(M,P,V)..EUR;MXAA52..(G,M)..(ARL,GEN,SA);AXAH52,AXAL5#..LHD..(M,P,V,X)..EUR;AXAA5#,AXAH5#,MXAA54..ARL,GCC,GEN,SA; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA,GRAY ME.,1G3; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,GRAY ME.,1G3; GRAY ME.,1G3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,GRAY ME.,1G3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),GRAY ME.,1G3; LANE CHANGE ASSIST-WITHOUT,GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKGUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKMONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,GRAY ME.,1G3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),GRAY ME.,1G3
SILVER ME.,1F7
"OFFROAD PACKAGE"*(B)&,BLACK,1G3 ,218 ,2QU ,2QW ,2QX ,2TU ,3T3 ,6X3; BLACK,2QU ,2QW ,2QX; BLACK,2QU ,2QW ,2QX ,2TU; TAIWAN SPEC&"OFFROAD PACKAGE"*(B),BLACK,040
main87945-42200-C1iAXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,V)..EUR; AXAH5#,AXAL5#..LHD..(M,V)..EUR;AXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAH5#,AXAL5#..LHD..G..EUR; AXAH5#,AXAL5#..LHD..P..EUR; AXAH5#..P..(ARL,GEN); AXAH5#..P..GEN; AXAH52,AXAL52..LHD..P..EUR; AXAH52..P..GEN; AXAH52..RHD..G..EUR;MXAA54..JPP..M..RUS;AXAL5#..RHD..(G,M,V);AXAH54..LHD..(M,V)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH52,AXAL5#..LHD..(M,V,X)..EUR;AXAA5#,AXAH5#,MXAA54..(G,M,V,X)..(ARL,GCC,GEN,SA); AXAH54,AXAL54..LHD..P..EUR; AXAH54..LHD..P..EUR;AXAH52,AXAL5#..P..EUR; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR202310
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2RA; ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA,ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA,ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2RA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2RA; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,218; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2RA; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,ATTITUDE BLACK MC.,218; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2RA; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),ATTITUDE BLACK MC.,218; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV; LANE CHANGE ASSIST-WITHOUT,ATTITUDE BLACK MC.,218; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKGUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,218; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKMONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,ATTITUDE BLACK MC.,218; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED MC.,3T3
RED M.M.,3R3
GRAPHITE ME.,4X7
main87945-42200-G0iAXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,V)..EUR; AXAH5#,AXAL5#..LHD..(M,V)..EUR;AXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAH5#,AXAL5#..LHD..G..EUR; AXAH52..RHD..G..EUR;MXAA54..JPP..M..RUS;AXAL5#..RHD..(G,M,V);AXAH54..LHD..(M,V)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH52,AXAL5#..LHD..(M,V,X)..EUR;AXAA5#,AXAH5#,MXAA54..(G,M,V,X)..(ARL,GCC,GEN,SA); MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA,URBAN KHAKI,6X3; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,URBAN KHAKI,6X3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,URBAN KHAKI,6X3; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),URBAN KHAKI,6X3; LANE CHANGE ASSIST-WITHOUT,URBAN KHAKI,6X3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKGUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKMONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,URBAN KHAKI,6X3; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),URBAN KHAKI,6X3; URBAN KHAKI,6X3
CYAN METALLIC,8W9
main87945-42200-J1iAXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,P)..EUR; AXAH5#,AXAL5#..LHD..(M,P)..EUR;AXAA54,AXAH5#,MXAA5#..LHD..G..GEN; AXAH5#,AXAL5#..LHD..G..EUR; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR; MXAA54..JPP..M..RUS;AXAL5#..RHD..(G,M,P);AXAH52..RHD..(G,P)..EUR;AXAH54..LHD..(M,P)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH52,AXAL5#..LHD..(M,P,X)..EUR;AXAA5#,AXAH5#,MXAA54..(G,M,X)..(ARL,GCC,GEN,SA)202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA,DK. BLUE MC.,8X8; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,DK. BLUE MC.,8X8; DK. BLUE MC.,8X8; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB,DK. BLUE MC.,8X8; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),DK. BLUE MC.,8X8; LANE CHANGE ASSIST-WITHOUT,DK. BLUE MC.,8X8; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKGUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKMONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA,DK. BLUE MC.,8X8; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION),DK. BLUE MC.,8X8
DK.BLUE M.M.,8W7
GRAYISH BLUE,8W2
87946RETRACTOR, OUTER MIRROR, RH
main00000-00000supersedes 87946-42F00iAXAA54..X..ARL;MXAA52..X..(EUR,SA);AXAA5#..(G,M,V)..GCC;MXAA54..(G,V)..(GEN,SA);AXAH54..(G,P)..(GCC,GEN);MXAA5#..LHD..M..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#..(M,P,V)..(EUR,GCC,SA);AXAA5#,AXAH52,MXAA52..LHD..(G,P,V)..GEN;AXAA54,MXAA5#..RHD..(ATM,CVT)..(G,M,X)..(EUR,GEN)202204-202210
NOT APPLICABLE
main87946-42F00supersedes 00000-00000iAXAA5#..(G,M,V)..GCC;AXAH54..LHD..(M,P,V)..EUR;MXAA54..JPP..M..(GCC,RUS);AXAH54..LHD..(G,M,P)..(GCC,GEN);AXAH52,AXAL5#..LHD..(M,P,V,X)..EUR;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAA54,AXAH52,MXAA5#..LHD..(M,X)..GEN; AXAH5#,AXAL5#..LHD..G..EUR202310
LANE CHANGE ASSIST-WITHOUT; OUTSIDE REAR VIEW MIRROR-*273 & PAINTED & TURN SIGNAL & *MIH
LANE CHANGE ASSIST-WITHOUT
87948COVER, OUTER MIRROR HOLE, LH
main87948-42E00iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR; AXAH5#,AXAL5#,MXAA5#..LHD..M..EUR;AXAA5#,AXAH5#,MXAA5#..LHD..(ATM,CVT)..(G,V)..GEN; MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAA54..LHD..(GCC,GEN);MXAA54..JPP..LHD..(M,V,X);AXAA52,AXAH5#,AXAL5#,MXAA52..LHD..(EUR,GCC,GEN)201811-202007
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
87948ACOVER, OUTER MIRROR HOLE, LH
main87948-42E20iAXAH54..G..RUS;MXAA52..6F..G..SA;MXAA52..RHD..G..EUR; MXAA52..RHD..CVT..M..EUR; MXAA54..6F..G..GEN;MXAA52..RHD..CVT..M..EUR201811-201909
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87948-42E30supersedes 87948-42E20iAXAA54,MXAA52..G..SA; AXAA54..G..GEN;AXAA54..LHD..V..GEN;AXAA52,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL; AXAH54..P..GEN202112-202210
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
main87948-42L10supersedes 87948-42E20iAXAH5#,AXAL5#..(M,P,V)..EUR; AXAH54..LHD..G..GEN;AXAH5#,AXAL5#..(M,P,V)..EUR;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..P..GEN; AXAH54..V..ARL;AXAH54..G..(ARL,SA);AXAA54,AXAH52,MXAA52..(G,V)..(ARL,SA); MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..G..EUR202210-202310
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA
8794ACOVER, OUTER MIRROR, LH NO.2
main8794B-42E10supersedes 8794B-42E20iAXAH54..G..RUS;MXAA52..RHD..G..EUR; AXAH54..M..RUS;MXAA54..6F..G..GEN201811-201909
LANE CHANGE ASSIST-WITHOUT
main8794B-42E20supersedes 8794B-42E10iAXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH54..G..(GCC,GEN);MXAA54..LHD..(G,V)..GEN;AXAA5#,AXAH52,MXAA52..(G,P,V)..(GCC,GEN); AXAH54..V..ARL;MXAA52..X..ARL;AXAH54..LHD..G..EUR;MXAA54..JPP..G..RUS;AXAA54,AXAH52..ARL,SA;AXAH52,AXAL5#..G..EUR;MXAA52..(G,M)..(ARL,SA);AXAH54..(G,M,P,X)..(ARL,SA); AXAL5#..M,P,V;AXAH52..LHD..M..EUR;AXAH52..P..(EUR,GEN);AXAH54..LHD..(M,P,V)..EUR;AXAA54,AXAH5#,MXAA5#..LHD..(G,V)..GEN; AXAL5#..M,P,V;AXAH52..P..EUR;AXAH52..LHD..M..EUR;AXAH54..LHD..(M,P,V)..EUR; MXAA54..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(G,P,V)..(GCC,GEN); MXAA54..LHD..(G,V)..GEN;AXAA5#,AXAH5#,MXAA52..(G,V)..(GCC,GEN)202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION); LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKGUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&BACK MONITOR-WITH(BACKMONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&*FLA&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
87961MIRROR OUTER, LH
main87961-42E90supersedes 87961-42F00iAXAH5#,AXAL5#,MXAA5#..LHD..G..EUR; MXAA5#..LHD..G..GEN;AXAA54,AXAH52..LHD..GEN;MXAA5#..LHD..(M,V,X)..(EUR,GEN);AXAA52,AXAH54..LHD..(G,M,P)..GEN;AXAH5#,AXAL5#..LHD..(M,P,V,X)..EUR202008-202210
LANE CHANGE ASSIST-WITHOUT
main87961-42F00supersedes 87961-42E90iAXAA54,AXAH52,MXAA5#..LHD..(ATM,CVT)..M..GEN; AXAH5#,AXAL5#..LHD..(M,P,V)..EUR; AXAH5#,AXAL5#..LHD..(M,P,V)..EUR;AXAA54,AXAH5#,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..LHD..G..GEN;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..LHD..G..GEN;AXAH5#,AXAL5#..LHD..(M,P,V)..EUR;AXAA54,AXAH52,MXAA5#..LHD..(G,P,V)..GEN; AXAH54..P..GEN; MXAA54..JPP..G..RUS;AXAH5#,AXAL5#..LHD..G..EUR202210-202310
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; BRAZIL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION); OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OTHER LATIN-NCAP COUNTRY&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; OUTSIDE REAR VIEW MIRROR-*AREM&PAINTED&TURN&*MIH&*BSM&FOOT LAMP&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87961-42F20iAXAA54,MXAA52..G..SA; AXAH5#..ARL;MXAA52..X..SA;MXAA54..RHD..CVT;AXAH54..RHD..G..GEN;AXAA54..(M,V,X)..ARL;AXAA54..RHD..(G,M,X)..GEN;MXAA52..RHD..CVT..(ARL,GEN)202008-202112
OUTSIDE REAR VIEW MIRROR-*162 & PAINTED & TURN SIGNAL & *MIH
main87961-42F30supersedes 87961-42F80iAXAH5#,AXAL5#..RHD..(M,P,V)..EUR; MXAA52..G..SA;AXAH5#..(P,V)..ARL;AXAA54,AXAH5#,AXAL5#..RHD..G..(EUR,SA)202008-202210
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
main87961-42F80supersedes 87961-42F30iAXAA54,AXAH54,MXAA52..RHD..GEN;AXAH5#,AXAL5#,MXAA54..RHD..(M,P,V,X)..(EUR,GEN,SA); AXAA54,MXAA52..G..SA; AXAH5#,AXAL5#..RHD..G..EUR; AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; MXAA52..(M,X)..ARL;AXAA54,AXAH52..M..ARL; MXAA52..X..ARL;AXAA54,AXAH52..M..ARL202210-202310
ACTIVE SAFETY PACKAGE-WITHOUT&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; LANE CHANGE ASSIST-WITHOUT; OCEANIA OTHERS SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; OCEANIA OTHERS SPEC&LANE CHANGE ASSIST-WITHOUT; PAPUA NEW GUINEA, SAMOA SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; PAPUA NEW GUINEA, SAMOA SPEC&LANE CHANGE ASSIST-WITHOUT
BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) &*RCTA; BACK MONITOR-WITH(BACK MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTA; LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)
87966RETRACTOR, OUTER MIRROR, LH
main00000-00000supersedes 87966-42E70iAXAA54..X..ARL;MXAA52..X..(EUR,SA);AXAA5#..(G,M,V)..GCC;MXAA54..(G,V)..(GEN,SA);AXAH54..(G,P)..(GCC,GEN);MXAA5#..LHD..M..(EUR,GCC);AXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#..(M,P,V)..(EUR,GCC,SA);AXAA5#,AXAH52,MXAA52..LHD..(G,P,V)..GEN;AXAA54,MXAA5#..RHD..(ATM,CVT)..(G,M,X)..(EUR,GEN)202204-202210
NOT APPLICABLE
LANE CHANGE ASSIST-WITHOUT
main87966-42F80iAXAA54,MXAA52..G..SA; AXAH52,AXAL5#..RHD..G..EUR; AXAH52..RHD..P..EUR;AXAL5#..RHD..(M,P,V);AXAA54,AXAH54,MXAA52..RHD..GEN;AXAH54,MXAA54..RHD..(M,V,X)..(GEN,SA); AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; MXAA52..(M,X)..ARL;AXAA54,AXAH52..M..ARL; MXAA52..X..ARL;AXAA54,AXAH52..M..ARL202310
ACTIVE SAFETY PACKAGE-WITHOUT&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; LANE CHANGE ASSIST-WITHOUT; OCEANIA OTHERS SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; OCEANIA OTHERS SPEC&LANE CHANGE ASSIST-WITHOUT; PAPUA NEW GUINEA, SAMOA SPEC&AUDIO-6SPEAKER 8INCH DAB, (AUSTRALIA)&BACK MONITOR-WITH(BACK GUIDE MONITOR)&LANE CHANGE ASSIST-WITHOUT; PAPUA NEW GUINEA, SAMOA SPEC&LANE CHANGE ASSIST-WITHOUT
9017906146
main90179-06146
22 parts on this diagram · 1 diagram in section
MIRROR for Toyota RAV4 (JPP)
This section contains 22 genuine Toyota parts for the MIRROR system of the Toyota RAV4 (JPP). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, ACTUATOR ASSY, OUTER MIRROR, RH.
