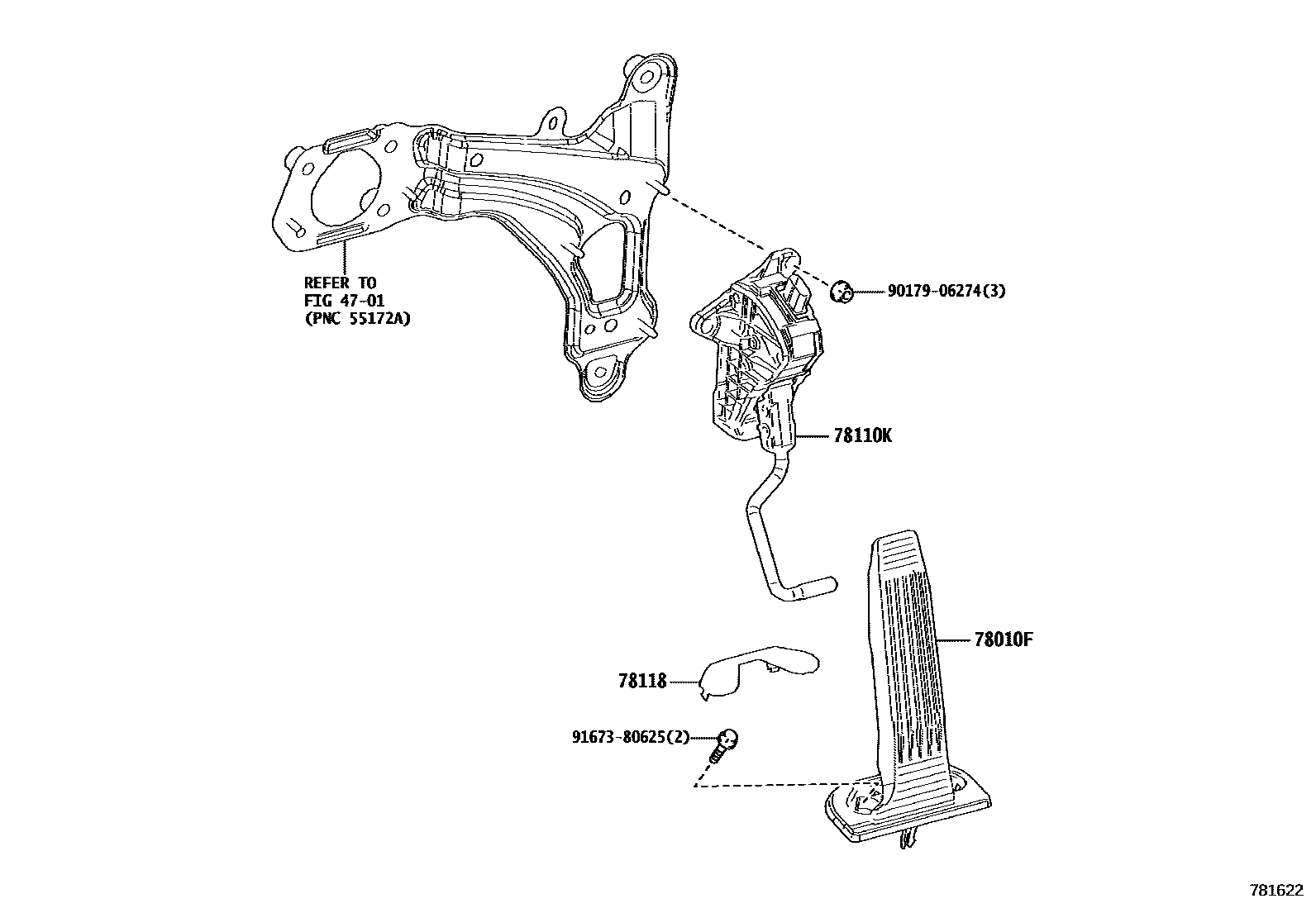

Toyota RAV4 (JPP) — ACCELERATOR LINK
4701BRAKE PEDAL & BRACKET
78010FPEDAL ASSY, ACCELERATOR
main78101-33060iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202111
main78101-33061iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202112-202410
78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
main78110-33130iMXAA54..6F..G..EUR;MXAA52..JPP..LHD..6F;MXAA54..JPP..LHD..6F..(M,X);AXAH5#,AXAL5#..LHD..(EUR,GCC,GEN)201811-202011
SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER)
SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER)
main78110-42060iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);MXAA5#..RHD..6F..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202011
main78110-42061iAXAL5#..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR;MXAA5#..RHD..6F..(ARL,GEN)202011-202410
SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER)
SPEED WARNING-WITH(ADJUSTABLE SPEED LIMITER)
78118PAD, ACCELERATOR PEDAL
9017906274
main90179-06274
9167380625
main91673-80625
6 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota RAV4 (JPP)
This section contains 8 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota RAV4 (JPP). Key components include: BRAKE PEDAL & BRACKET, PEDAL ASSY, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), BRACKET, ACCELERATOR PEDAL SUPPORT, PAD, ACCELERATOR PEDAL.
