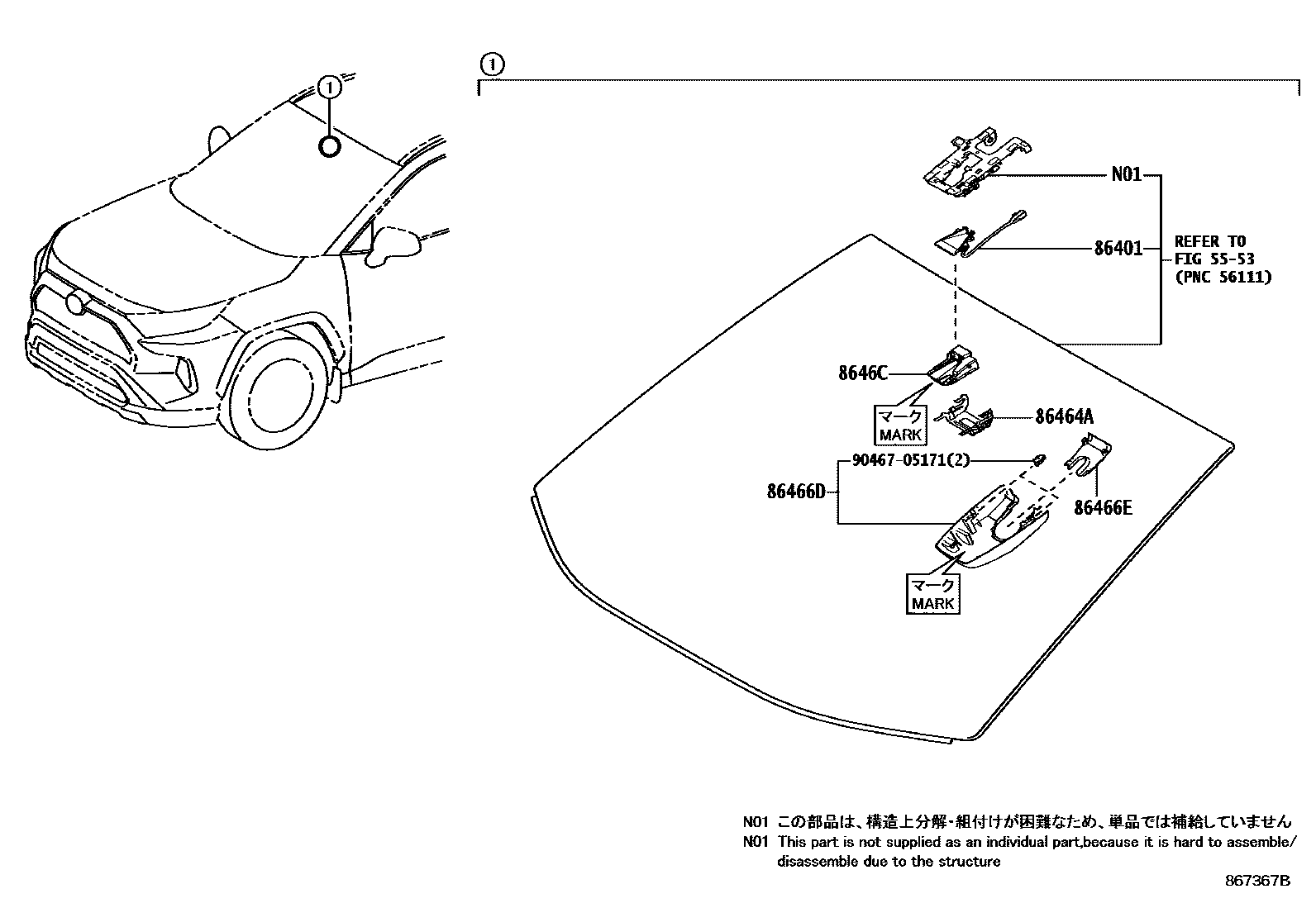

Toyota RAV4 (JPP) — PRE-COLLISION SYSTEM

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-10010iAXAH52..M..ARL;MXAA52..CVT..(M,X)..ARL202112-202210

REFER TO PNC 86466D

main86401-42041supersedes 86401-42041iAXAA54..LHD..V;AXAH52..G..EUR;MXAA52..6F..EUR;MXAA54..RHD..(M,X);MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA52..LHD..6F..GEN;MXAA52..CVT..(M,X)..GEN;AXAH52..(M,X)..201906-202007

NEW ZEALAND SPEC

86464ALATCH, FORWARD RECOGNITION

main86464-26010supersedes 86464-26010iAXAL5#..ARL201902-202007

main86464-K0010supersedes 86464-K0010iAXAH52..M..ARL;MXAA52..CVT..(M,X)..ARL202112-202210

REFER TO PNC 86466D

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-42060supersedes 86466-42060iAXAL5#..ARL201902-202007

main86466-42120supersedes 86466-42120iAXAH52..M..ARL;MXAA52..CVT..(M,X)..ARL202112-202210

OCEANIA OTHERS SPEC,MARK=86466-42120

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42070supersedes 86466-42070iAXAL5#..ARL201902-202007

main86466-42130supersedes 86466-42070iAXAA54..V..ARL;AXAH54,MXAA52..G..ARL202112-202210

OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

8646CCAMERA, FORWARD RECOGNITION

main8646C-0R090iAXAH52..M..ARL;MXAA52..CVT..(M,X)..ARL202112-202210

REFER TO PNC 86466D

main8646C-0R140iAXAA54,MXAA52..G..SA202210-202306

REFER TO PNC 86466D

main8646C-0R141iAXAA54,MXAA52..G..SA202310-202407

OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK=8646C-0R141

main8646C-0R142iAXAA54,MXAA52..G..SA202407

CRUISE CONTROL-*ACC(ALL SPEED),MARK=8646C-0R142

main8646C-42031iAXAL5#..ARL202008-202010

NEW ZEALAND SPEC

main8646C-42032supersedes 8646C-42032iAXAA52..X..GEN;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR202010-202111

REFER TO PNC 86466D

main8646C-42150iAXAH5#,AXAL5#..EUR202310-202401

*614

main8646C-42151iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202402-202410

*614

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
