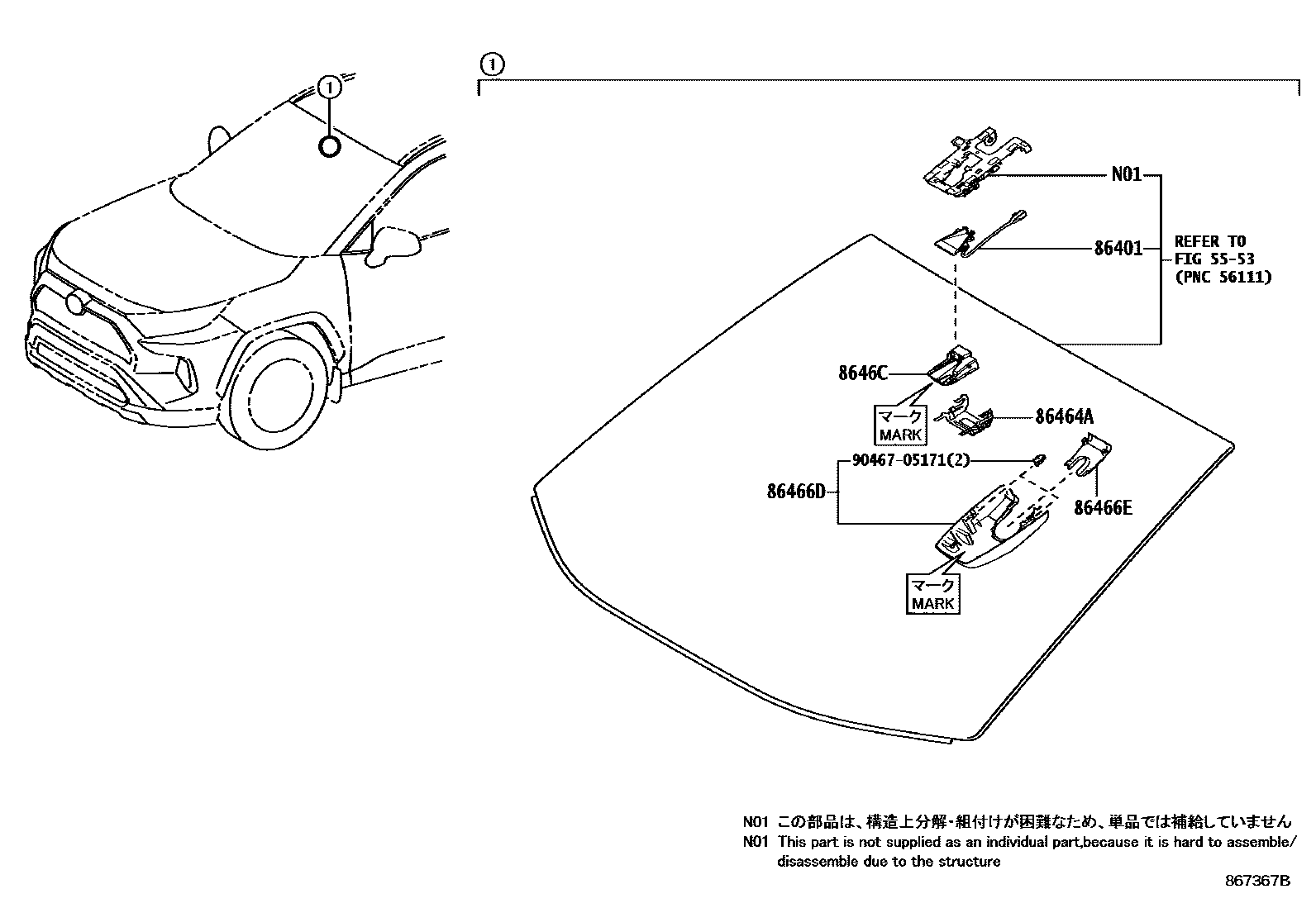

Toyota RAV4 (JPP) — PRE-COLLISION SYSTEM
5553COWL PANEL & WINDSHIELD GLASS
86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
main86401-10010iAXAA52..GCC;AXAA54..LHD..V;AXAH54..LHD..(G,X);AXAH54..LHD..M..GEN;AXAH54..LHD..P..EUR;MXAA52..JPP..LHD..6F..X;MXAA54..JPP..CVT..(M,X);AXAH54..(M,V)..(EUR,GCC);MXAA52..(G,M)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAH52,AXAL5#..(G,M,P,V)..EUR;AXAA54..(G,M,X)..(GCC,GEN,SA);MXAA54..LHD..(G,V)..(EUR,GEN);MXAA52..CVT..X..(EUR,GCC,GEN);AXAH52,AXAL5#..LHD..X..(EUR,GCC);AXAH54..RHD..(G,P)..(EUR,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN; AXAA54..V..ARL;AXAH54,MXAA52..G..ARL; AXAH52..M..ARL;MXAA52..CVT..(M,X)..ARL; AXAH52..M..ARL;MXAA52..CVT..X..ARL; AXAH52..X..GEN;AXAH54..P..GEN;AXAA54..(M,V)..ARL;AXAH5#,MXAA52..CVT..ARL; AXAH54,MXAA52..G..ARL; AXAH54..P..GEN; MXAA52..G..SA;AXAH54..V..EUR;AXAL54..(G,M,P,V)..EUR;MXAA52..LHD..(G,M)..EUR;AXAA54,AXAH5#,AXAL52,MXAA54..(G,M,P)..(EUR,SA)202112-202210
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,REFER TO PNC 86466D; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,REFER TO PNC 86466D; ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; OCEANIA OTHERS SPEC,REFER TO PNC 86466D; PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; PAPUA NEW GUINEA, SAMOA SPEC,REFER TO PNC 86466D; REFER TO PNC 86466D
main86401-42041iAXAA54,AXAH54,MXAA52..(ATM,CVT)..ARL; AXAA54..LHD..V;AXAH52..G..EUR;MXAA52..6F..EUR;MXAA54..RHD..(M,X);MXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA52..LHD..6F..GEN;MXAA52..CVT..(M,X)..GEN;AXAH52..(M,X)..(EUR,GEN);MXAA54..JPP..LHD..(M,V,X);MXAA52..LHD..CVT..(M,X)..EUR;AXAA54..(G,M,X)..(GCC,GEN,SA);MXAA5#..CVT..G..(EUR,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#..EUR,GCC,GEN; AXAA54..V..ARL;AXAH5#,MXAA52..ARL; AXAL5#..ARL; MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..EUR201906-202007
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; AUSTRALIA SPEC; NEW ZEALAND SPEC
main86401-42040iAXAA54..LHD..V;MXAA54..CVT..G;MXAA52..6F..EUR;MXAA54..RHD..(M,X);MXAA54..6F..G..EUR;MXAA52..CVT..G..EUR;MXAA54..LHD..(M,V,X);MXAA52..(G,M)..(GEN,SA);MXAA52..LHD..6F..X..GEN;MXAA52..LHD..CVT..M..EUR;MXAA52..CVT..X..(EUR,GEN);AXAA5#,AXAH5#..(G,M,X)..(EUR,GCC,GEN,SA); MXAA52..CVT..G..EUR;MXAA52..6F..(G,M)..EUR;MXAA52..LHD..CVT..M..EUR;AXAA54,AXAH5#,MXAA54..(G,M)..EUR201811-201905
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
86464ALATCH, FORWARD RECOGNITION
main86464-K0010iAXAA52..GCC;AXAA54..LHD..V;AXAH54..LHD..(G,X);AXAH54..LHD..M..GEN;AXAH54..LHD..P..EUR;MXAA52..JPP..LHD..6F..X;MXAA54..JPP..CVT..(M,X);AXAH54..(M,V)..(EUR,GCC);MXAA52..(G,M)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAH52,AXAL5#..(G,M,P,V)..EUR;AXAA54..(G,M,X)..(GCC,GEN,SA);MXAA54..LHD..(G,V)..(EUR,GEN);MXAA52..CVT..X..(EUR,GCC,GEN);AXAH52,AXAL5#..LHD..X..(EUR,GCC);AXAH54..RHD..(G,P)..(EUR,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN; AXAA54..V..ARL;AXAH54,MXAA52..G..ARL; AXAH52..M..ARL;MXAA52..CVT..(M,X)..ARL; AXAH52..M..ARL;MXAA52..CVT..X..ARL; AXAH52..X..GEN;AXAH54..P..GEN;AXAA54..(M,V)..ARL;AXAH5#,MXAA52..CVT..ARL; AXAH54,MXAA52..G..ARL; AXAH54..P..GEN; MXAA52..G..SA;AXAH54..V..EUR;AXAL54..(G,M,P,V)..EUR;MXAA52..LHD..(G,M)..EUR;AXAA54,AXAH5#,AXAL52,MXAA54..(G,M,P)..(EUR,SA)202112-202210
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,REFER TO PNC 86466D; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,REFER TO PNC 86466D; ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; OCEANIA OTHERS SPEC,REFER TO PNC 86466D; PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; PAPUA NEW GUINEA, SAMOA SPEC,REFER TO PNC 86466D; REFER TO PNC 86466D
86466DCOVER, FORWARD RECOGNITION, NO.1
main86466-42120iAXAA52..GCC;AXAA54..LHD..V;AXAH54..LHD..(G,X);AXAH54..LHD..M..GEN;AXAH54..LHD..P..EUR;MXAA52..JPP..LHD..6F..X;MXAA54..JPP..CVT..(M,X);AXAH54..(M,V)..(EUR,GCC);MXAA52..(G,M)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAH52,AXAL5#..(G,M,P,V)..EUR;AXAA54..(G,M,X)..(GCC,GEN,SA);MXAA54..LHD..(G,V)..(EUR,GEN);MXAA52..CVT..X..(EUR,GCC,GEN);AXAH52,AXAL5#..LHD..X..(EUR,GCC);AXAH54..RHD..(G,P)..(EUR,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN; AXAA54..M..ARL;AXAH52..X..GEN;AXAH54..P..GEN;AXAH5#,MXAA52..CVT..(M,P,X)..ARL; AXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL; AXAA54..V..ARL;AXAH54,MXAA52..G..ARL; AXAH52..M..ARL;MXAA52..CVT..(M,X)..ARL; AXAH52..M..ARL;MXAA52..CVT..X..ARL; AXAH54,MXAA52..G..ARL; AXAH54..P..GEN; MXAA52..G..SA;AXAH54..V..EUR;AXAL54..(G,M,P,V)..EUR;MXAA52..LHD..(G,M)..EUR;AXAA54,AXAH5#,AXAL52,MXAA54..(G,M,P)..(EUR,SA)202112-202210
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,MARK 86466-42120; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,MARK=86466-42120; ACTIVE SAFETY PACKAGE-WITHOUT,MARK=86466-42120; MARK 86466-42120; MARK=86466-42120; OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK 86466-42120; OCEANIA OTHERS SPEC,MARK=86466-42120; PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK 86466-42120; PAPUA NEW GUINEA, SAMOA SPEC,MARK=86466-42120
86466ECOVER, FORWARD RECOGNITION, NO.2
main86466-42130supersedes 86466-42070iAXAA54,MXAA52..G..SA; AXAA54..V..ARL;AXAH5#,MXAA52..(G,V)..ARL; AXAA54..V..ARL;AXAH54,MXAA52..G..ARL; AXAH54,MXAA52..G..ARL202112-202210
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT; PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT
8646CCAMERA, FORWARD RECOGNITION
main8646C-0R090iAXAA52..GCC;AXAA54..LHD..V;AXAH54..LHD..(G,X);AXAH54..LHD..M..GEN;AXAH54..LHD..P..EUR;MXAA52..JPP..LHD..6F..X;MXAA54..JPP..CVT..(M,X);AXAH54..(M,V)..(EUR,GCC);MXAA52..(G,M)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAH52,AXAL5#..(G,M,P,V)..EUR;AXAA54..(G,M,X)..(GCC,GEN,SA);MXAA54..LHD..(G,V)..(EUR,GEN);MXAA52..CVT..X..(EUR,GCC,GEN);AXAH52,AXAL5#..LHD..X..(EUR,GCC);AXAH54..RHD..(G,P)..(EUR,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN; AXAA54..V..ARL;AXAH54,MXAA52..G..ARL; AXAH52..M..ARL;MXAA52..CVT..(M,X)..ARL; AXAH52..M..ARL;MXAA52..CVT..X..ARL; AXAH52..X..GEN;AXAH54..P..GEN;AXAA54..(M,V)..ARL;AXAH5#,MXAA52..CVT..ARL; AXAH54,MXAA52..G..ARL; AXAH54..P..GEN; MXAA52..G..SA;AXAH54..V..EUR;AXAL54..(G,M,P,V)..EUR;MXAA52..LHD..(G,M)..EUR;AXAA54,AXAH5#,AXAL52,MXAA54..(G,M,P)..(EUR,SA)202112-202210
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,REFER TO PNC 86466D; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,REFER TO PNC 86466D; ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; OCEANIA OTHERS SPEC,REFER TO PNC 86466D; PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; PAPUA NEW GUINEA, SAMOA SPEC,REFER TO PNC 86466D; REFER TO PNC 86466D
main8646C-0R140iAXAA54,MXAA52..G..SA; AXAH5#,AXAL5#,MXAA5#..LHD..(G,M,P,V)..EUR; AXAH52..X..GEN;AXAH54..V..ARL;AXAH54..P..GEN;MXAA52..X..ARL;AXAA54,AXAH52..ARL,SA;MXAA52..(G,M)..(ARL,SA);AXAH54..(G,M,P,X)..(ARL,SA); AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; AXAH54..P..GEN; MXAA52..(M,X)..ARL;AXAA54,AXAH52..M..ARL; MXAA52..X..ARL;AXAA54,AXAH52..M..ARL; MXAA54..JPP..RUS; MXAA54..RHD..(M,X);AXAH54..LHD..P..EUR;AXAH52..X..(EUR,GCC);AXAH54..RHD..(EUR,GEN);AXAH52..(G,M,P)..(EUR,GEN);AXAA5#,AXAL5#,MXAA52..EUR,GCC,GEN;AXAH54,MXAA54..LHD..(G,M,V,X)..(EUR,GCC,GEN)202210-202306
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR,REFER TO PNC 86466D; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,REFER TO PNC 86466D; ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; CRUISE CONTROL-*ACC(ALL SPEED),REFER TO PNC 86466D; OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; OCEANIA OTHERS SPEC,REFER TO PNC 86466D; PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,REFER TO PNC 86466D; PAPUA NEW GUINEA, SAMOA SPEC,REFER TO PNC 86466D; REFER TO PNC 86466D
main8646C-0R141iAXAA54,MXAA52..G..SA; AXAH52..GCC;MXAA54..RHD..(M,X);AXAH52..(G,M,P)..GEN;MXAA54..LHD..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(G,M,V,X)..(GCC,GEN); AXAH52..X..GEN;AXAH54..V..ARL;AXAH54..P..GEN;MXAA52..X..ARL;AXAA54,AXAH52..ARL,SA;MXAA52..(G,M)..(ARL,SA);AXAH54..(G,M,P,X)..(ARL,SA); AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; MXAA52..(M,X)..ARL;AXAA54,AXAH52..M..ARL; MXAA52..X..ARL;AXAA54,AXAH52..M..ARL; MXAA54..JPP..RUS202310-202407
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,MARK=8646C-0R141; CRUISE CONTROL-*ACC(ALL SPEED),MARK=8646C-0R141; MARK=8646C-0R141; OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK=8646C-0R141; OCEANIA OTHERS SPEC,MARK=8646C-0R141; PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK=8646C-0R141; PAPUA NEW GUINEA, SAMOA SPEC,MARK=8646C-0R141
main8646C-0R142iAXAA54,MXAA52..G..SA; AXAH52..GCC;MXAA52..6F..X..GEN;MXAA54..RHD..(M,X);AXAH52..(G,M,P)..GEN;MXAA54..LHD..CVT..M..(GCC,GEN);MXAA54..LHD..(G,V,X)..(GCC,GEN);AXAA5#,AXAH54,MXAA52..(ATM,CVT)..(G,M,V,X)..(GCC,GEN); AXAH52..X..GEN;AXAH54..V..ARL;AXAH54..P..GEN;MXAA52..X..ARL;AXAA54,AXAH52..ARL,SA;MXAA52..(G,M)..(ARL,SA);AXAH54..(G,M,P,X)..(ARL,SA); AXAH54..G..ARL; AXAH54..G..ARL;AXAA54,MXAA52..(G,V)..ARL; MXAA52..(M,X)..ARL;AXAA54,AXAH52..M..ARL; MXAA52..X..ARL;AXAA54,AXAH52..M..ARL; MXAA54..JPP..RUS202407
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,MARK=8646C-0R142; CRUISE CONTROL-*ACC(ALL SPEED),MARK=8646C-0R142; MARK=8646C-0R142; OCEANIA OTHERS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK=8646C-0R142; OCEANIA OTHERS SPEC,MARK=8646C-0R142; PAPUA NEW GUINEA, SAMOA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT,MARK=8646C-0R142; PAPUA NEW GUINEA, SAMOA SPEC,MARK=8646C-0R142
main8646C-42031iAXAA54..(M,V)..ARL;AXAH5#,MXAA52..CVT..ARL; AXAA54..LHD..V;MXAA54..JPP..LHD;MXAA54..RHD..(M,X);MXAA52..JPP..LHD..6F..X;MXAA52..CVT..X..(EUR,GEN);MXAA52..(G,M)..(EUR,GEN,SA);AXAA5#,AXAH5#,AXAL5#..(G,M,X)..(EUR,GCC,GEN,SA); AXAA54..V..ARL;AXAH5#,MXAA52..ARL; AXAH54..LHD..G..GEN;MXAA52..LHD..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M)..EUR; AXAL5#..ARL202008-202010
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; AUSTRALIA SPEC; NEW ZEALAND SPEC
main8646C-42032iAXAA52..X..GEN;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR; AXAL5#..ARL; MXAA52..6F..ARL202010-202111
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,REFER TO PNC 86466D; AUSTRALIA SPEC,REFER TO PNC 86466D; REFER TO PNC 86466D
main8646C-42150iAXAH5#,AXAL5#..EUR; AXAH54..LHD..EUR;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR202310-202401
*614; ACTIVE SAFETY PACKAGE-WITHOUT,*614
*614
main8646C-42030iAXAA54,AXAH54,MXAA52..(ATM,CVT)..ARL; AXAA54..V..ARL;AXAH5#,MXAA52..ARL201901-201910
AUSTRALIA SPEC; NEW ZEALAND SPEC
9046705171
main90467-05171
7 parts on this diagram · 1 diagram in section
PRE-COLLISION SYSTEM for Toyota RAV4 (JPP)
This section contains 7 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota RAV4 (JPP). Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
