Toyota RAV4 J/L — SWITCH & RELAY & COMPUTER

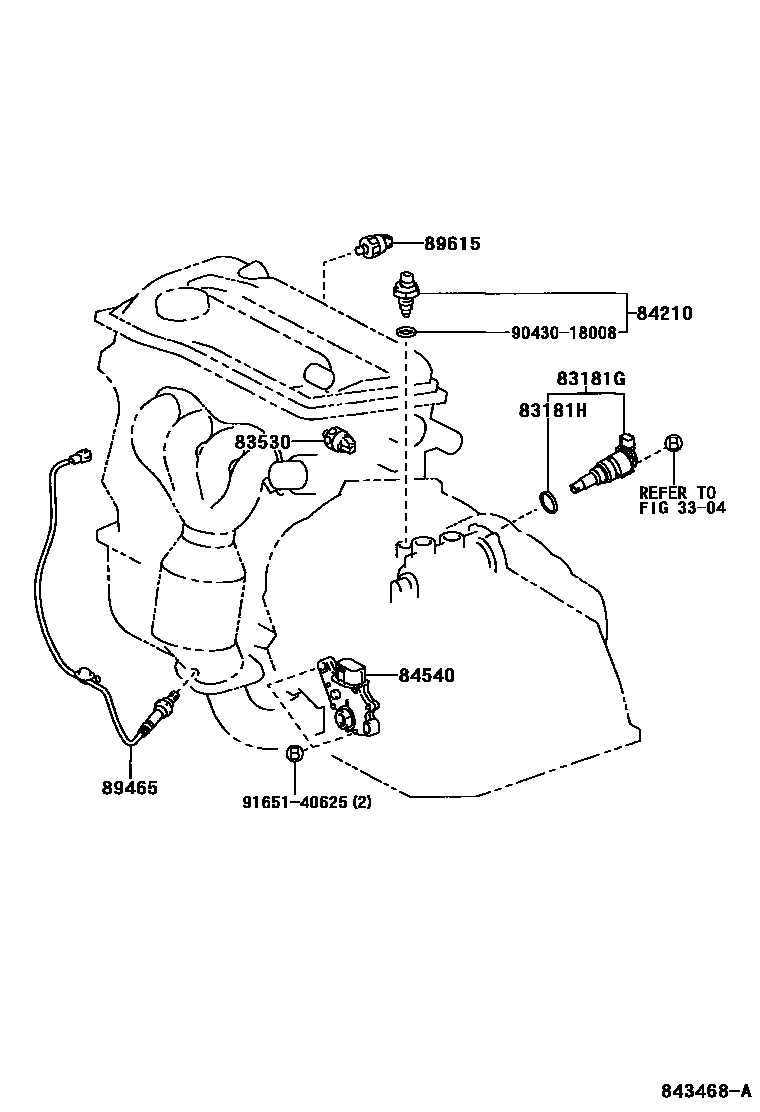

Parts diagram

3304SPEEDOMETER DRIVEN GEAR (MTM)

→ Go to FIG 33-04

83181GSENSOR, SPEEDOMETER

main83181-12050i200005-200307

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030i200005-200307

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i200005-200307

main83530-60020i200005-200307

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040i200005-200307

84540SWITCH ASSY, NEUTRAL START

main84540-12230i200005-200307

main84540-46010i200307-200511

main84540-48010i200307-200511

main84540-52050i200005-200307

89465SENSOR, OXYGEN

main89465-12710i200307

main89465-42080i200005-200307

main89465-42110i200005-200307

main89465-68010i200307

89615SENSOR, KNOCK CONTROL

main89615-12120i200005-200307

main89615-20090i200307

main89615-30080i200005-200104

main89615-32030i200005-200104

main89615-44010i200104-200307

9043018008

main90430-18008

9165140625

main91651-40625

10 parts on this diagram · 10 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota RAV4 J/L

This section contains 103 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota RAV4 J/L. Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.2, SENSOR ASSY, BATTERY CURRENT, SENSOR, BATTERY THERMOMETER, SPEEDOMETER DRIVEN GEAR (MTM).
