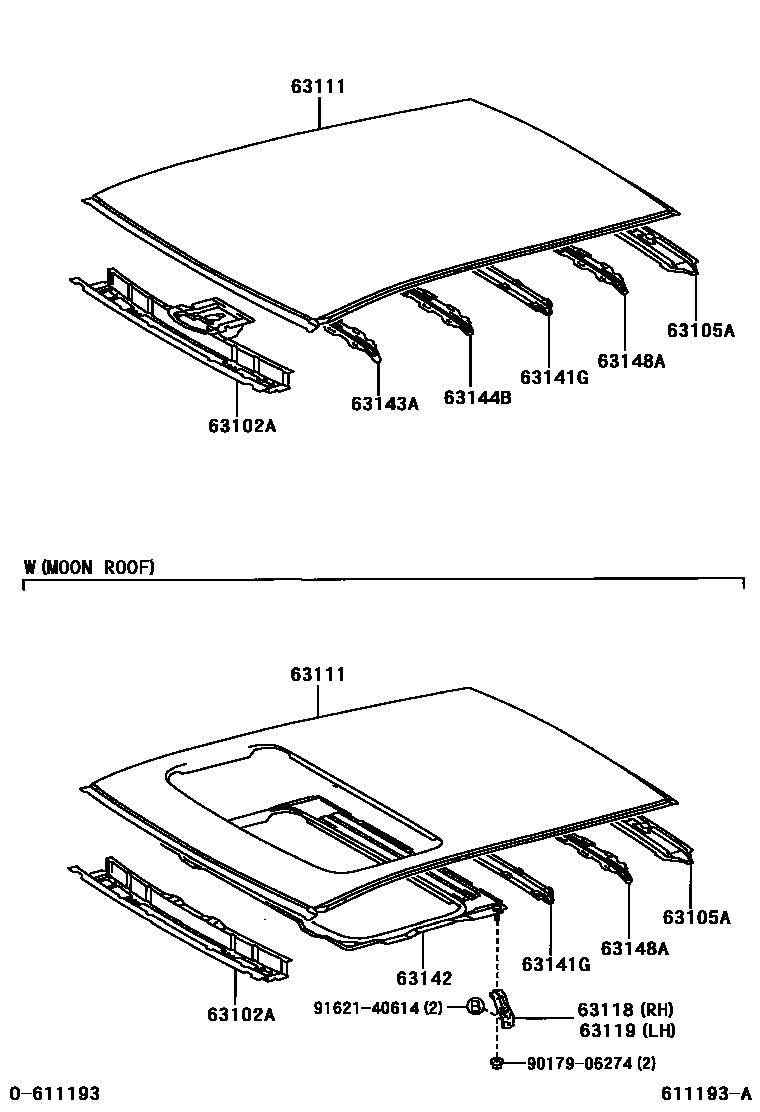

Toyota RAV4 J/L — ROOF PANEL & BACK PANEL
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142REINFORCEMENT, ROOF PANEL, NO.2
63143AREINFORCEMENT, ROOF PANEL
63144BREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
9017906274
main90179-06274
9162140614
main91621-40614
12 parts on this diagram · 4 diagrams in section
ROOF PANEL & BACK PANEL for Toyota RAV4 J/L
This section contains 61 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota RAV4 J/L. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, SUPPORT, ROOF PANEL, RH, SUPPORT, ROOF PANEL, LH.
